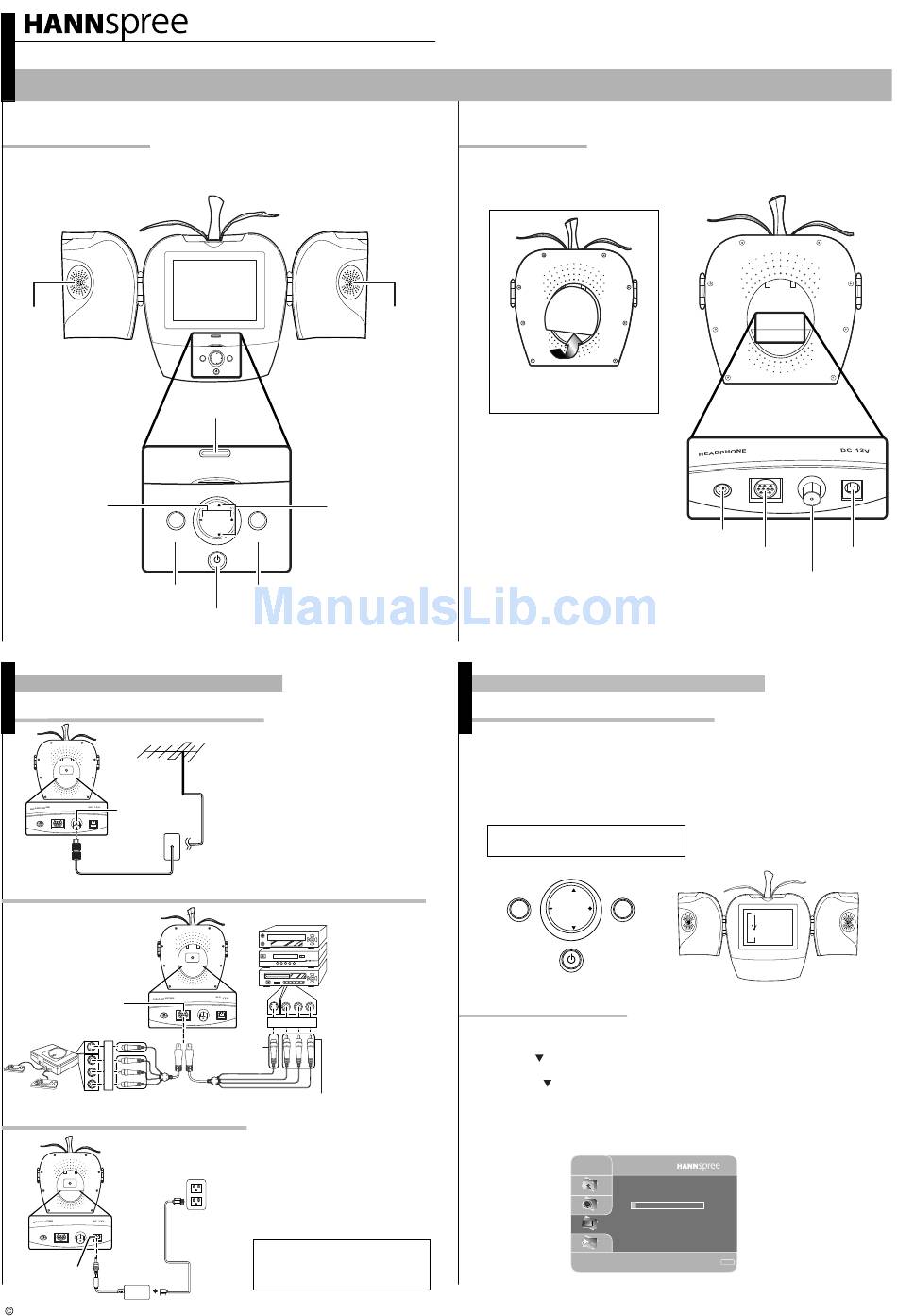

K226-10C1 9.6" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.
Front View
Front View
Speaker
Remote IR sensor
Volume
adjust
SOURCE
Source
Power/Power indicator LED
Making Connections
Connecting to Antenna/Cable TV
HEADPHONE
4-IN-1
ANT
DC 12V
ANT jack
4-IN-1
ANT
(VHF/UHF IN Jack)
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
4-IN-1 A/V jack
Video game console
B
R
W
Y
4-IN-1 A/V cable
Connecting the Power Adapter
Power outlet
HEADPHONE
4-IN-1
ANT
DC 12V
4-IN-1
ANT
Power cord
DC-IN
Power adapter
Copyright 2005, Hannspree, Inc. All rights reserved.
Quick Start Guide
CH
VOL
VOL
CH
MENU
SOURCE
Channel
CH
select
VOL
VOL
CH
MENU
Menu
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the
Antenna
TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
2. The cables are
color-coded (black,
VCR
red, white, and yellow).
Connect each color-
VCD
coded cable to
HEADPHONE
4-IN-1
ANT
DC 12V
the appropriate
DVD
connector on your
4-IN-1
ANT
device.
B
R W Y
S-Video
connector
AV connectors
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Note :
Images are for illustration only and may
vary by model or region.
Rear View
Rear View
Speaker
Note : Remove the cover before
connecting the cable.
A/V and Channel Setup
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the
control panel to select different source signals.
TV channel number, AV or AVs appear on the screen.
Note : AVs only appears on the screen when
S-Video is connected.
SOURCE
Auto Channel Setup
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH
3. Press the VOL
4. Press the CH
5. Press the VOL
6. Your television will begin automatically memorizing the available channels.
HEADPHONE
4-IN-1
ANT
DC 12V
Headphone jack
CH
VOL
VOL
CH
MENU
button to select "TV".
+
button to enter the TV setting.
button until the "Auto Program" feature is selected.
+
button to begin "Auto Program".
Auto Program
TV
Auto-Programming
093.84 MHz
1
6%
Return :
HEADPHONE
4-IN-1
ANT
DC 12V
ANT
4-IN-1
4-IN-1
DC 12V
Antenna/Cable TV
TV
AV
MENU
MAD-001327
