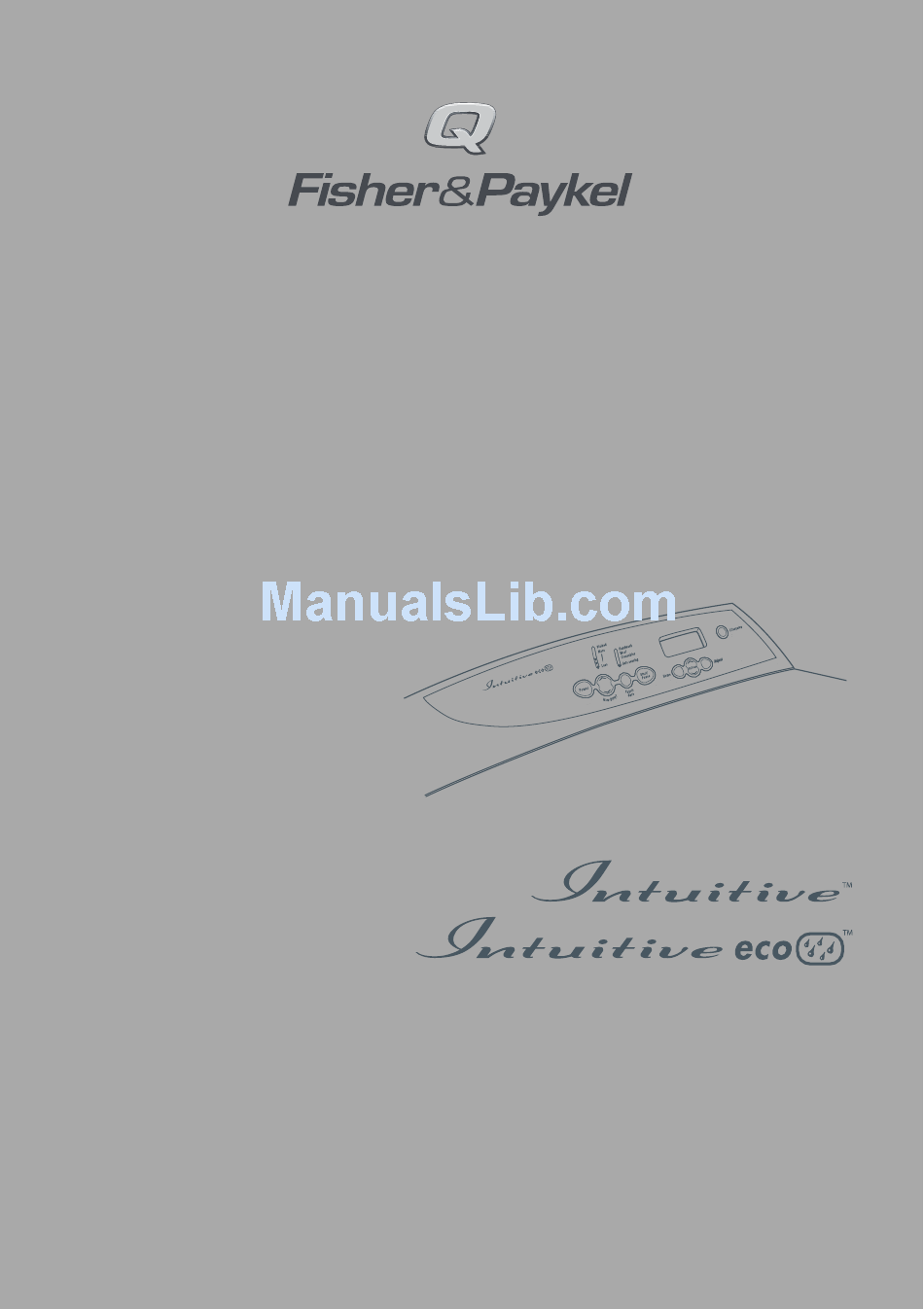

Page 1: User Guide
IW812, IW712, IW512, IWL12, IWM12, IWC12 Autowasher Installation instructions and User guide N ew Ze a la n d Aus trali a Canada Europe Asia Pacific... -
Page 2: Features
Intelligent Electronics Two powerful microprocessors control every aspect of the Intuitive™ washer, allowing it to continually monitor and respond to each wash. It contains over 10,000 lines of instructions in its “brain” – the result of many years of testing and fine-tuning, to give you the best possible performance. -
Page 3: Table Of Contents
Contents Installation Instructions Before You do Your First Wash Getting Started Quickly How Dirty? Stained Fabric Care Auto Sensing, Creasables, Wool, Handwash Eco Active™ Wash Lidlock Hot/Total Water Consumption Display Screen All About The Options Button Selecting, Customising, Time To Go The Options Temperature, Controlled Cold, Wash Advance Save Water, Delay Start, Save Time, Soak... -
Page 4: Installation Instructions
Installation Instructions Unpacking To ensure the best performance from your new Intuitive™ washer please follow the instructions below. Removing the Packaging Remove the outer packaging. Tilt the machine backwards and walk it off the bottom packer one foot at a time. - Page 5 Installation Instructions Inlet Hoses Connect the straight ends of the white inlet hoses to the taps. (There are washers fitted in both ends). Connect the elbow ends of the white inlet hoses to the machine inlet valves. Inlet valves are marked on the back of the machine. H = Hot Minimum height of taps to clear the top of the machine is 1150mm.
-
Page 6: Water Supply
Installation Instructions Water Supply For best operating conditions your hot water should be approximately 65˚C. Your hot water ■ should not exceed 75˚C or your cold water exceed 35˚C. Temperatures above these may cause the machine to fault or cause damage to the machine. If you have an uncontrolled water-heating source (eg a wet back or solar heating) you should ■... -
Page 7: Before You Do Your First Wash
The Compact Intuitive™ model functions the same as Medium and Large Intuitive Eco™ models unless otherwise indicated. To check what size your washer is look on the back of the topdeck, where the word Large, Medium or Compact will be embossed. -
Page 8: Getting Started Quickly
Getting Started Quickly Remove the fabric softener dispenser. ■ Place load evenly around the agitator. (Refer to ■ Sorting and Loading page 26). A. Detergent Follow the instructions on the detergent package. ■ Use the mark on the agitator nearest to the top of the ■... - Page 9 F. Display Screen This shows you which options you have selected (and/or any lifecycle you may have chosen). The display screen also shows what the machine is doing and how long the wash has to go, to keep you informed throughout the cycle. G.
-
Page 10: How Dirty
Fabric Care AUTO SENSING Put your clothes into your Intuitive™ washer and push START/PAUSE. Auto sensing will sense the average fabric mix of your load and select the correct wash action to ensure the best wash results. For a normal wash load we suggest the medium soil level and the ECO (SAVE WATER++) rinse option (See Save Water page 16). -
Page 11: Eco Active™ Wash
(Top Loader Type Wash) After recirculating the sudsy water through the clothes for 2 – 5 minutes, your Intuitive Eco™ washer will fill with just enough cool water to suspend the clothes in solution. Your washer will then sense the average fabric type of the load and begin the agitation wash. -
Page 12: Lidlock
Lidlock Your Intuitive™ has a lidlock, which locks when your machine is spinning. This ensures the lid cannot be opened during hazardous parts of the cycle, providing added safety for you and your family. A Lidlock symbol (padlock) appears in the corner of the screen when locked (it disappears when unlocked), letting you know at a glance if you can open the lid or not. -
Page 13: Hot/Total Water Consumption
Medium Note: The Compact does not have an Eco Active™ wash. *To check what size your washer is, look on the back of the topdeck, where the word Large, Medium or Compact will be embossed. † Traditional wash is the conventional wash that the Smart Drive™ uses. -
Page 14: All About The Options Button
The ‘Time to Go’ is displayed from the beginning of the agitation wash, as the load size and fabric type have to be determined before the cycle time can be calculated. A series of symbols are also displayed on the screen to indicate what the washer is doing. (Refer to page 9). -
Page 15: The Options
The Options For all the options mentioned below you firstly need to enter the OPTIONS menu (by pressing either the UP or DOWN Options buttons). Then use the Option’s arrows to scroll through the options until the one you want is displayed. Press ADJUST to select it, and HOME to return to the main screen. -
Page 16: Save Water, Delay Start, Save Time, Soak
SAVE WATER option and the ECO (SAVE WATER++) option. SAVE WATER minimises the amount of water used. The rinse type your washer chooses depends on the type of fabric you are washing and the options you have chosen. Save water reduces the... -
Page 17: Drip Dry, Max Spin Speed, Water Levels, Traditional Wash
The Options 7. Drip Dry Pressing DRIP DRY will pause the washer at the end of the rinse, allowing you to remove drip-dry garments before the washer goes into final spin. The washer will beep and display a message to tell you that it is waiting for another instruction. Once items have been removed, press START/PAUSE to begin the spin. -
Page 18: Adjusting The Wash Settings
S2 Auto Water Level Adjustment If you are not satisfied with the water level that your Intuitive™ washer fills to on auto water level, you can increase or decrease the fill level that auto will select. -
Page 19: Default Rinse, Creasable Spin Speed, Out Of Balance Recovery
Machine Stops Action Your washer will stop, give a short burst of beeps every five seconds, and display a message to let you know to redistribute the load more evenly yourself. (Use this option if you wish to conserve water). -
Page 20: End Of Cycle Beeps, Re-Set Defaults
Adjusting the Wash Settings S6 End of Cycle Beeps The beeps signalling the end of the cycle can be set to zero, five or fifteen. Access the Adjust Settings Menu (refer to page 18). ■ Scroll to the END OF CYCLE BEEPS screen. ■... -
Page 21: Lifecycles
Lifecycles™ Your Intuitive™ has a range of special Lifecycles™ to make washing even easier. Push the LIFECYCLES button. Use the OPTIONS button to scroll through the five lifecycle menus, or you can press the Lifecycles™ button repeatedly. Use the ADJUST button to select a lifecycle. Press HOME to return to the main screen. -
Page 22: Family Cycles Nappy Rinse, Duvet/Doona, Allergy
Lifecycles™ L2 Family Cycles NAPPY RINSE A cycle for rinsing nappy sanitisers from cloth nappies. A slow spin, deep rinse, and a spray rinse. (See information on Nappy Sanitisers/Bleach in Washing Difficult Items page 27). DUVET/DOONA Duvets and doonas are difficult items to wash as they are bulky and often float out of the water during the wash (See Washing Bulky Items page 27). -
Page 23: Sport Cycles Sweaty, Muddy, Sports Shoes, Bits `N´ Beach
Lifecycles™ L3 Sports SWEATY The clothes you exercise in require a little extra care to remove the odours and dirt that tend to penetrate into the fabric structure. This cycle incorporates a warm/hot regular wash with a fast spin to clean sweaty sports clothes. MUDDY Clothes that have mud on them need to be washed in special way so all traces can be removed. -
Page 24: Stain Cycles Chocolate, Tomato, Blood/Grass, Fruit/Wine
Lifecycles™ L4 Stains There are a number of stains that need special treatments due to their unique compositions. Some water temperatures actually set in stains rather than remove them. Use these Lifecycles™ to care for these specific stains. CHOCOLATE Chocolate is a complex mixture of fats, proteins and sugars. Initially the stain is treated with a warm/hot Eco Active™... -
Page 25: Extra Cycles Bowl Clean, Max Wash
If you regularly use fabric softener, (refer Scrud page 30), or only wash in cold water we recommend that you put your washer through a bowl clean cycle 2 – 4 times a year. This cycle has a hot Eco Active™ wash, a hot agitate and a 2-hour soak. -
Page 26: Sorting And Loading
Sorting and Loading To get the best wash results it pays to sort your clothes before washing. Care Labels Care labels will tell you about the fabric of the garment and how it should be washed. Soil Sort clothes according to the type and amount of soil. Some soils suit warmer washes (e.g. oily soils), while others are best washed in cold water (e.g. -
Page 27: Washing Difficult Items
■ Use a wool detergent. ■ Use the WOOL option. ■ Hand washed woollens may be spun in your washer. ■ To dry woollens lie them flat on a towel and pat into ■ shape. Dry out of direct sunlight. -
Page 28: Detergent
Detergent Choosing the Right Detergent We recommend the use of domestic detergents (powder, liquid or tablets). Soap flakes, e.g. Lux Soap Flakes, or granulated soap powders should not be used. Detergents that contain built-in fabric softeners may not be suitable for your Intuitive™ as they can leave a deposit on the agitator and bowl. - Page 29 How Much to Use? Machine Size Water Level/Load High Medium High Medium Medium Low Machine Size Water Level/Load High Medium High Medium Medium Low Machine Size Water Level/Load High Medium High/Medium Medium Low/Low Machine Size Water Level/Load High Medium High Medium Medium Low Concentrate...
-
Page 30: Fabric Softener
■ Scrud Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with detergent. This build-up is not brought about by a fault in the machine. If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant smell in your washer. -
Page 31: Caring For Your Autowasher
The agitator must be fully pushed onto the shaft when refitting. Tighten the plastic nut firmly by hand. Ensure the agitator is not loose. Cleaning the Inside of Your Washer If you use fabric softener or only do cold water washes, it is important that you occasionally clean the inside of your machine. -
Page 32: Machine Information
Standpipe Height ■ Sounds and Beeps Your Intuitive™ washer will make sounds that you will not have heard from other autowashers. Filling If your autowasher alternates filling and agitating, when AUTO SENSING is selected, it is checking that it has the right amount of water for the clothes load. -
Page 33: If Your Intuitive™ Beeps For Help
Musical Series Of Beeps* Every 5 Seconds and... *Note: The musical series of beeps is the same sound your washer makes when you turn it on at the wall. “My load is OUT OF BALANCE” Wash load is out of balance. - Page 34 If Your Intuitive™ Beeps For Help “I am not getting any WATER” The taps have not been turned on. Inlet hose screens may be blocked. The hoses may be kinked (refer to page 5). The drain hose is too low or the drain hose is pushed into the standpipe too far and the water is siphoning out of the machine.
-
Page 35: Operating Problems
WASH WATER Temperature is not warm. The Intuitive Eco™ washer fills in two stages. The first phase of the wash fills with water at the temperature you have selected. The second phase of the wash uses cool water to finish the fill, so the final wash water temperature will be much cooler than the temperature you selected. -
Page 36: Wash Problems
Try pre-dissolving the detergent. DYE TRANSFER. Wash and dry non-colourfast clothes separately. Non colourfast clothes left sitting in a washer or laundry basket can transfer dye to other clothes. TANGLING. Washing with too much water (i.e. under-loading) can cause the clothes to tangle. -
Page 37: Manufacturers Warranty
Manufacturer’s Warranty When you purchase any new Fisher & Paykel whiteware Product you automatically receive a two year Manufacturer’s Warranty covering parts and labour for servicing. Fisher & Paykel Undertakes To Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. -
Page 38: Customer Care
This information is needed in order to better respond to your request for assistance. Product details can be found on the top left hand side of the console or back panel of the washer cabinet. Product Details Fisher & Paykel Ltd Model/Serial No. - Page 40 You should therefore check with your Customer Care Centre to ensure this booklet correctly describes the product currently available. www.fisherpaykel.com NZ AU PAC ASIA Clothes Washer Installation Instructions and User Guide Published: 04/2005 Part No. 420785 A...
