www.nordictrack.com
Model No. NTEL01310.4
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
(on underside of frame)
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT TIlE STORE; please
contact Customer Care.
iMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.=Fri. 6 a.m.=6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
;ER'S
A UAL
Advertisement
Related Manuals for NordicTrack Smart Terrain 12.0 NTEL01310.4
Summary of Contents for NordicTrack Smart Terrain 12.0 NTEL01310.4

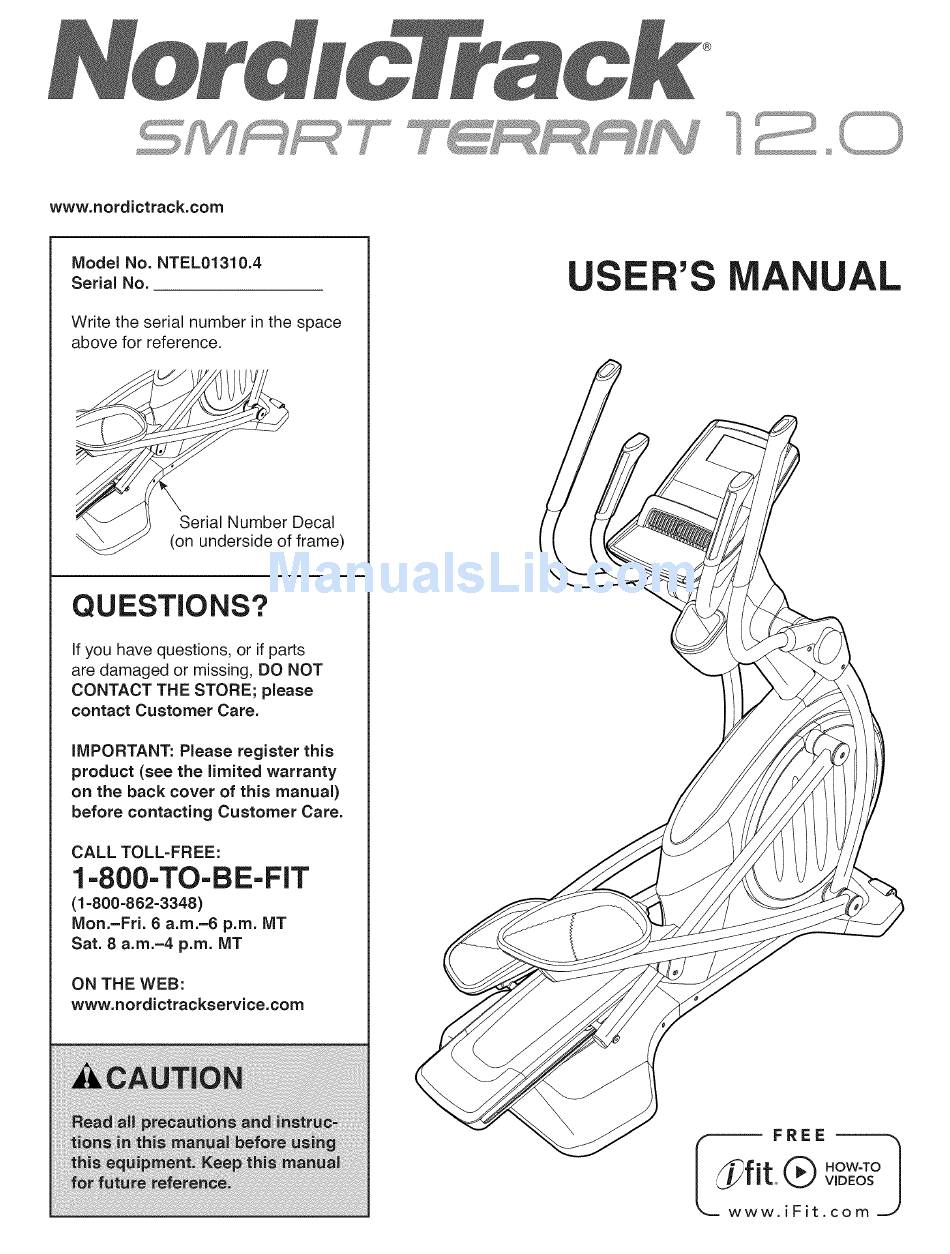

- Page 1 Model No. NTEL01310.4 ;ER'S A UAL Serial No. Write the serial number in the space above for reference. Serial Number Decal (on underside of frame) QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT TIlE STORE;...
