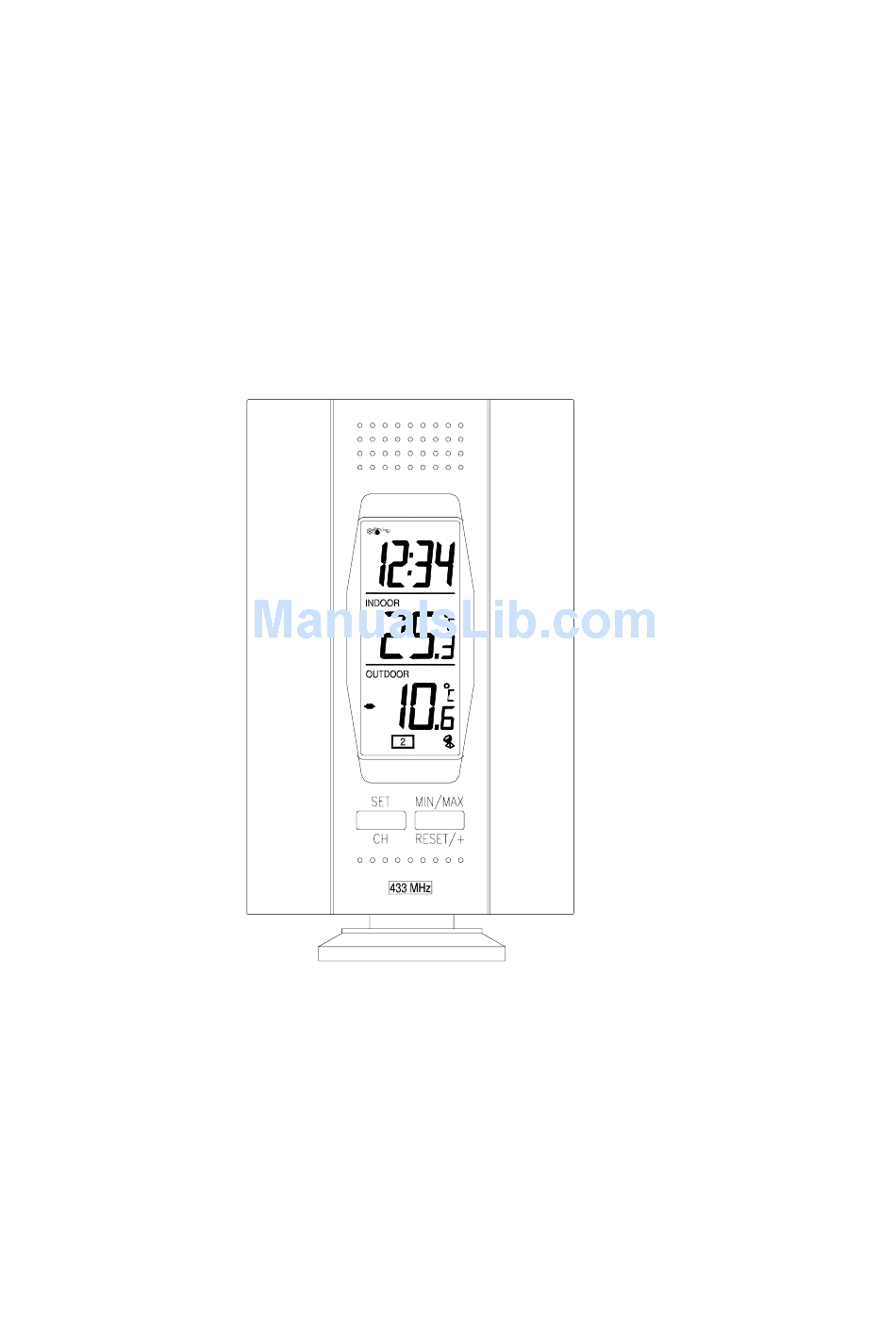

  • Page 1 WS-7013U Wireless 433 MHz Temperature Station Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Page Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation 9-10 Setting the Time 11-12 Selecting Units of 12-13 Measurement Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Additional remote 14-17 temperature sensors (optional) Mounting 17-18...

  • Page 3: Inventory Of Contents

    INVENTORY OF CONTENTS The indoor temperature station (Figure The remote temperature sensor (TX6U) and mounting bracket. (Figure 2) 3 each, 1/2” Philips screws. One strip of double sided adhesive tape. Instruction Manual and Warranty Card. Figure 1 Figure 2 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver.

  • Page 4: Quick Setup

    QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor temperature station and remote temperature sensor 3 to 5 feet apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor temperature station.
  • Page 5 In this time the indoor temperature station and remote temperature sensor will start to talk to each other and the display will show both the indoor temperature and an outdoor temperature. If the indoor temperature station does not display both temperatures after the 10 minutes please retry the set up as stated above.
  • Page 6 of resistance. Your distance plus resistance should not exceed 80 ft. in a straight line. NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be avoided. To complete the set up of your indoor temperature station after the 10 minutes have passed please follow the steps below.
  • Page 7 b. When you have your choice shown on the display press and release the “SET” button once. 2. Degree Fahrenheit will now show. To change between Fahrenheit and Celsius, press and release the “MIN/MAX” button. b. When you have your choice shown on the display press and release the “SET”...
  • Page 8 PM hours. During the AM hours this area will be blank. b. When the correct hour is shown, press and release the “SET” button once. 4. A minute will now be flashing. Press and release the “MIN/MAX” button until the correct minutes are displayed.

  • Page 9: Detailed Setup Guide

    DETAILED SETUP GUIDE BATTERY INSTALLATION REMOTE TEMPERATURE SENSOR Remove the mounting bracket. Remove battery cover Observing the correct polarity, install 2 AA batteries—make sure they do not spring free, or start-up problems may occur. Replace cover.
  • Page 10 INDOOR TEMPERATURE STATION Note: After the batteries are installed, DO NOT press any buttons. This may interfere with the signals, causing temperatures to register incorrectly. Remove the battery cover on the backside. To do this, push up and pull out. Observing Battery the correct...

  • Page 11: Setting The Time

    The indoor temperature station should now show: “-:- -” in the TIME LCD, and temperatures in the INDOOR and OUTDOOR LCD’s. TIME SETTING THE TIME Press and hold the “SET” button for 5 second, “12h” will appear in the TIME LCD. Press and release the “MIN/MAX”...

  • Page 12: Selecting Units Of

    Press and release the “SET” button 2 times, the hour will flash in the upper left corner. Press and release the “MIN/MAX” button to set the hours Press and release the “SET” button to move to the minute setting Press and release the “MIN/MAX” button to set the minutes.

  • Page 13: Minimum And Maximum

    Press and hold the “SET” button for 5 second until “12h” or “24h” appears in the TIME LCD. Press and release the “SET” button again, “°F” will appear in the TIME LCD. Press and release the “MIN/MAX” button to shift between °F and °C. Press and release the “SET”...

  • Page 14: Additional Remote

    “RESET/+” button for 4 seconds. C. ADDING ADDITIONAL REMOTE TEMPERATURE SENSORS (OPTIONAL) The WS-7013U is able to receive signals from 3 different remote temperature sensors. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-7013U.
  • Page 15 TX3UP will monitor the temperature via a probe for use in pools, spas, etc. Note: When setting up multiple units it is important to remove the batteries from all existing units in operation, then to insert batteries first into all the remote temperature sensor units, and in numeric sequence.
  • Page 16 Install batteries into the indoor temperature station. Follow the Detailed Set-Up Guide for programming and operating instructions. VIEWING AND OPERATING WITH MULTIPLE REMOTE TEMPERATURE SENSOR UNITS To view the temperature of a different remote temperature sensor unit, press and release the “CH” button. A shift from one “boxed”...

  • Page 17: (Optional) Mounting

    To reset the Minimum/Maximum readings, press and hold the “MIN/MAX” button for four seconds. MOUNTING Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the remote temperature sensor on an outside North- facing wall.

  • Page 18: Troubleshooting

    Gently pull the indoor temperature station down to lock the screw into place. TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology via e-mail or phone, or visit our website, www.lacrossetechnology.com...
  • Page 19 Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. Solution: 1) Remove all batteries, reinsert into remote temperature sensor first, and then into the indoor temperature station. 2) Place remote temperature sensor closer to the indoor temperature station. 3) Be sure all batteries are fresh.

  • Page 20: Maintenance And Care

    the difference can be exaggerated further because the temperature sensors are designed for different working environments. The indoor sensor is less responsive to ambient air currents because of the shielding effect of the display's case. In addition, the case can act as a heat sink to absorb and store heat from external sources (i.e.

  • Page 21: Specifications

    Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. SPECIFICATIONS Transmitting 433MHz Frequency...
  • Page 22 -21.8 °F to 156.2°F with Indoor Temperature 0.2°F resolution. Station: Outdoor (-29.9°C to 69.0°C with 0.1°C resolution) Temp accuracy +/- 1°F (+/- .5°C) Transmitting Maximum 80 feet (25m) range open space Temperature check Indoor Every 10 seconds Outdoor Three times minutes Batteries—(Alkaline recommended) Remote...

  • Page 23: Warranty Information

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 24 The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay ground return shipping charges to the owner of the product to a USA address only.
  • Page 25 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
  • Page 26 Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Freq. 433.92 MHz La Crosse Technology Made in China WS-7013U...
  • Page 27 FCC ID: OMO-01RX (Receiver), OMO-01TX (sensor) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
