La Crosse Technology WS-7013U Instruction Manual

La Crosse Technology WS-7013U Instruction Manual

Wireless 433 mhz temperature station
Hide thumbs Also See for WS-7013U:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
WS-7013U
Wireless 433 MHz
Temperature Station
Instruction Manual
1

Advertisement

Table of Contents
loading

Related Manuals for La Crosse Technology WS-7013U

Summary of Contents for La Crosse Technology WS-7013U

  • Page 1 WS-7013U Wireless 433 MHz Temperature Station Instruction Manual...

  • Page 2: Table Of Contents

    Topic Page Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation Setting the Time Selecting Units of Measurement Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Additional remote control 7-10 senders (optional) Mounting 10-11 Troubleshooting 12-14 Maintenance and Care 14-15 Specifications 15-16...

  • Page 3: Inventory Of Contents

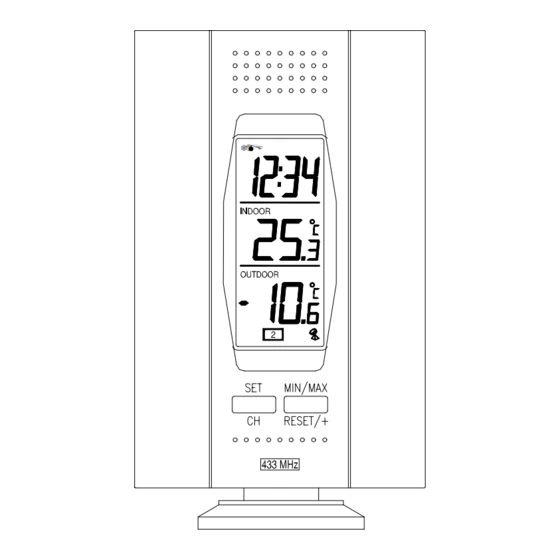

    INVENTORY OF CONTENTS The Indoor Temperature Station (Figure The Remote Control Sensor (TX2U) and mounting bracket. (Figure 2) 3 each, 1/2” Philips screws. One strip of double sided adhesive tape. Instruction Manual and Warranty Card. Figure 2 Figure 1 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver.

  • Page 4: Quick Setup

    QUICK SETUP Insert two AAA batteries into the Remote Control Sender. Insert two AAA batteries into the Indoor Temperature Station. Wait 5-6 minutes, or until the outdoor temperature displayed OUTDOOR LCD of the Temperature Station. Set the Time Mount units. (See complete instructions for details).

  • Page 5: Detailed Setup Guide

    DETAILED SETUP GUIDE BATTERY INSTALLATION REMOTE CONTROL SENDER Battery cover Battery compartment Remove the mounting bracket. Remove battery cover Observing the correct polarity, install 2 AAA batteries—make sure they do not spring free, or start-up problems may occur. Replace cover. TEMPERATURE STATION Note: After the batteries are installed, DO NOT press any buttons.
  • Page 6 Remove the battery cover on the backside. To do this, push up and pull out. Observing Battery the correct Cover polarity, install 2 AA batteries. Replace battery cover. Wait 5-6 minutes or until both indoor and outdoor temperatures are shown on the Indoor Temperature Station.

  • Page 7: Setting The Time

    SETTING THE TIME Press and hold the SET button for 1 second. “12h” will appear in the TIME LCD. Use the MIN/MAX button to select either 12h time (am/pm) or 24h time Press the SET button 2 times, the hour will flash in the upper left corner.

  • Page 8: Selecting Units Of

    MEASURE SELECTING UNITS OF MEASUREMENT Press and hold the SET button for 1 second. Press the SET button again. “°F” will appear in the TIME LCD. Press the MIN/MAX button to shift between °F and °C. Press the SET button twice to activate settings.

  • Page 9: Maximum Temperatures

    RESET/+ button for 4 seconds. C. ADDING ADDITIONAL REMOTE CONTROL SENDERS (OPTIONAL) The WS-7013U is able to receive signals from 3 different Remote Control Senders. Following are some brief instructions for the basic set-up of Remote Control Sender units with the WS-7013U.
  • Page 10 display the temperature on its LCD, and the TX3UP will monitor the temperature via a probe for use in pools, spas, etc. Note: When setting up multiple units it is important to remove the batteries from all existing units in operation, then to insert batteries first into all the Remote Control Sender units, and in numeric sequence.
  • Page 11 procedures seen in section I. A) of the Detailed Set-Up Guide). Install batteries into the Indoor Temperature Station. Follow the Detailed Set-Up Guide for programming and operating instructions. VIEWING AND OPERATING WITH MULTIPLE REMOTE CONTROL SENDER UNITS To view the temperature of a different Remote Control Sender unit, press the CH button.

  • Page 12: Mounting

    minimum and maximum outdoor temperature. To reset the Minimum/Maximum readings press and the MIN/MAX button for four seconds. MOUNTING Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the Sender on an outside North-facing wall.
  • Page 13 comes with the table stand already mounted. If you wish to use the table- stand, all that is required is to place the Indoor Temperature Station in an appropriate location. To wall mount, remove the table stand. To do this, pull down on the stand from the rear and rotate forward.

  • Page 14: Troubleshooting

    2) Place remote sender closer to display. 3) Be sure all batteries are fresh. 4) Place Remote Control Sender and Weather Station in position so the straight-line signal is not passing through more than two or three walls. Problem: Temperatures do not match if...
  • Page 15 Solution: Each temperature sensor is manufactured to be accurate to within 1 degree plus or minus and under normal conditions; so two sensors could be as much as 2 degrees different. However, the difference can be exaggerated further because the sensors are designed for different working environments.

  • Page 16: Maintenance And Care

    MAINTENANCE AND CARE INSTRUCTIONS • Extreme temperatures, vibration, and shock should be avoided to prevent damage to the units. • Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents; they may mark the displays and casings.

  • Page 17: Specifications

    SPECIFICATIONS Transmitting 433MHz Frequency Measuring Temperatures Temperature 32°F to 156.2°F with Station: Indoor 0.2°F resolution. (0°C to 69.0°C with 0.1°C resolution). -21.8 °F to 156.2°F with Temperature Station: Outdoor 0.2°F resolution. (-29.9°C to 69.0°C with 0.1°C resolution). Temp accuracy +/- 1°F (+/- .5°C). Transmitting Maximum 80 feet (25m) range...
  • Page 18 Dimensions: (L x W x H) Temperature 2.75 x .92 x 4.3 in. Station (excluding table stand) (90 x 23.6 x 110 mm). Remote Control 2.32 x 0.86 x 2.55 in. Sender (59 x 22 x 65 mm). Battery life Approximately 1 year.

  • Page 19: Warranty Information

    Contact La Crosse Technology immediately upon discovery of any defects covered by this warranty. Before sending the Weather Station in for repairs, contact La Crosse Technology. The Weather Station will be repaired or replaced with the same or similar model.
  • Page 20 This warranty gives you specific legal rights. You may also have other rights specific to your State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. warranty work, technical...
  • Page 21 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Freq. 433.92 MHz La Crosse Technology Made in China WS-7013U FCC ID: OMO-01RX (Receiver) OMO-01TX (transmitter)
