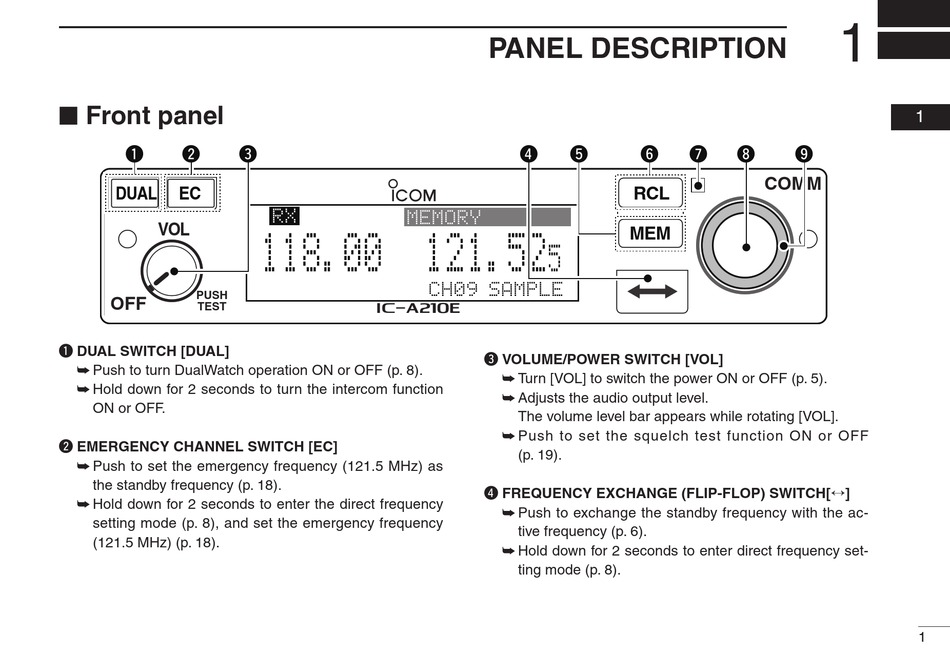

n Front panel
q w
DUAL EC
VOL
PUSH
OFF
TEST
q DUAL SWITCH [DUAL]
➥ Push to turn DualWatch operation ON or OFF (p. 8).
➥ Hold down for 2 seconds to turn the intercom function
ON or OFF.
w EMERGENCY CHANNEL SWITCH [EC]
➥ Push to set the emergency frequency (121.5 MHz) as
the standby frequency (p. 18).
➥ Hold down for 2 seconds to enter the direct frequency
setting mode (p. 8), and set the emergency frequency
(121.5 MHz) (p. 18).
e
RX
MEMORY
118.00
iA210E

PANEL DESCRIPTION

r t
121.52
5
CH09 SAMPLE
e VOLUME/POWER SWITCH [VOL]
➥ Turn [VOL] to switch the power ON or OFF (p. 5).
➥ Adjusts the audio output level.
The volume level bar appears while rotating [VOL].
➥ Push to set the squelch test function ON or OFF
(p. 19).
r FREQUENCY EXCHANGE (FLIP-FLOP) SWITCH[↔]
➥ Push to exchange the standby frequency with the ac-
tive frequency (p. 6).
➥ Hold down for 2 seconds to enter direct frequency set-
ting mode (p. 8).
y u i o
COMM
RCL
MEM
1
01
1
