t VFO/MHz SWITCHES [V/MHz(SCAN)]
➥ Select and toggle VFO mode and 1 MHz tuning display.
➥ Start a scan when pushed and held. (p. 42)
y MEMORY/CALL CHANNEL SWITCHES
[M/CALL(PRIO)]
➥ Select and toggle memory mode or a call channel.
(pgs. 32, 37)
➥ Activate the priority watch function when pushed and
held. (p. 47)
u SELECT MEMORY/MEMORY WRITE SWITCHES
[S.MW(MW)]
➥ Select a memory channel for programming. (p. 33)
➥ Program selected memory when pushed and held. (p. 33)
i OUTPUT POWER/DUPLEX SWITCH [LOW(DUP)]
➥ Each push changes the output power selection. (p. 25)
• There are 3 output powers available: low, mid and high.
➥ Push and hold to select a duplex setting. (p. 27)
• There are 3 duplex settings available: minus duplex ("–
DUP" appears, plus duplex ("+ DUP" appears) and simplex.
o DTMF/TONE SWITCH [DTMF(T)]
➥ Turns DTMF memory encoder ON and OFF for au-
topatch operation. (p. 49)
• When an optional UT-49 is installed, activates the DTMF
memory, pager or code squelch function in sequence.
➥ Turns the subaudible tone encoder ON and OFF for re-
peater access when pushed and held. (p. 27)
• When an optional UT-104 is installed, activates the subaudi-
ble tone encoder, pocket beep or tone squelch function in
sequence.

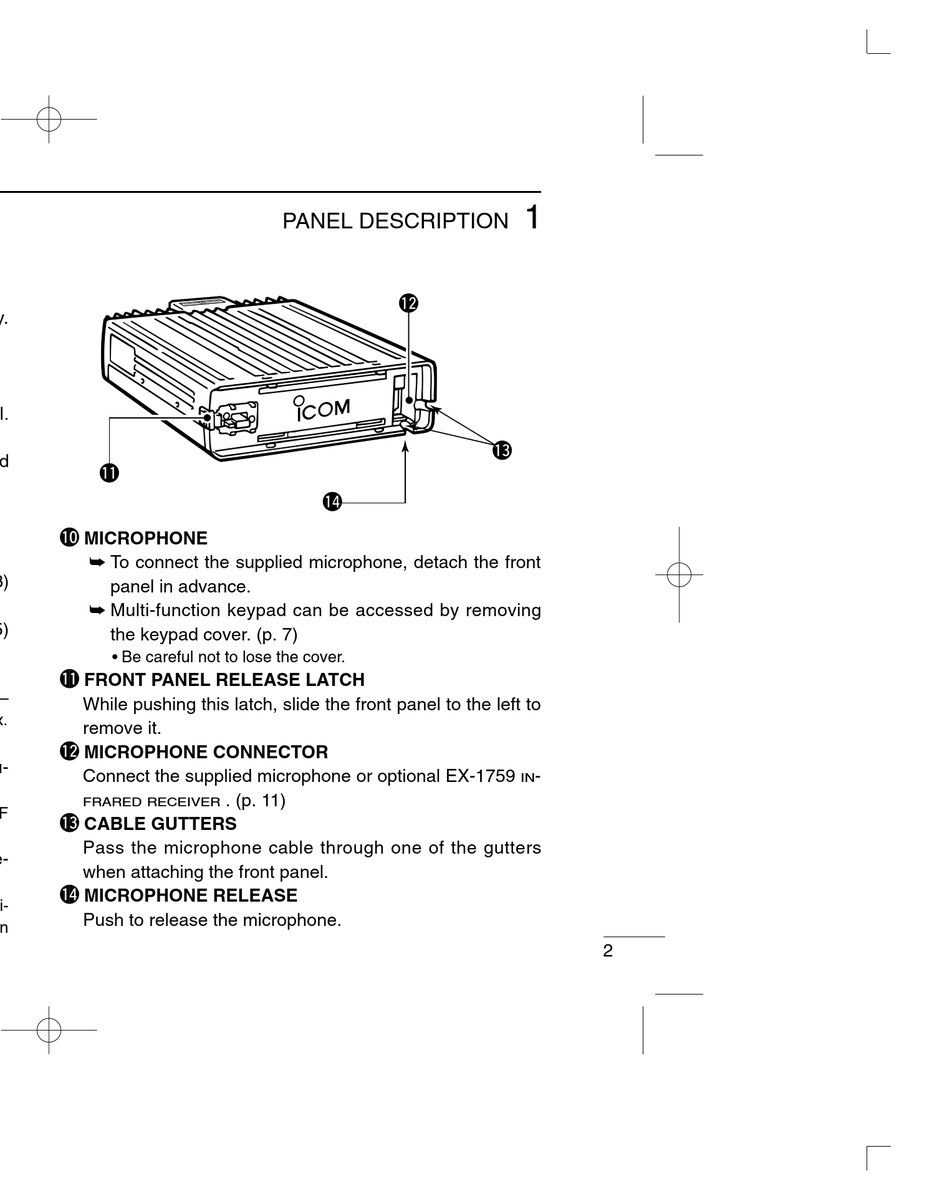

PANEL DESCRIPTION
!0
MICROPHONE
➥ To connect the supplied microphone, detach the front
panel in advance.
➥ Multi-function keypad can be accessed by removing
the keypad cover. (p. 7)
• Be careful not to lose the cover.
!1
FRONT PANEL RELEASE LATCH
While pushing this latch, slide the front panel to the left to
remove it.
!2
MICROPHONE CONNECTOR
Connect the supplied microphone or optional EX-1759
. (p. 11)
FRARED RECEIVER
!3
CABLE GUTTERS
Pass the microphone cable through one of the gutters
when attaching the front panel.
!4
MICROPHONE RELEASE
Push to release the microphone.
1
-
IN
2
