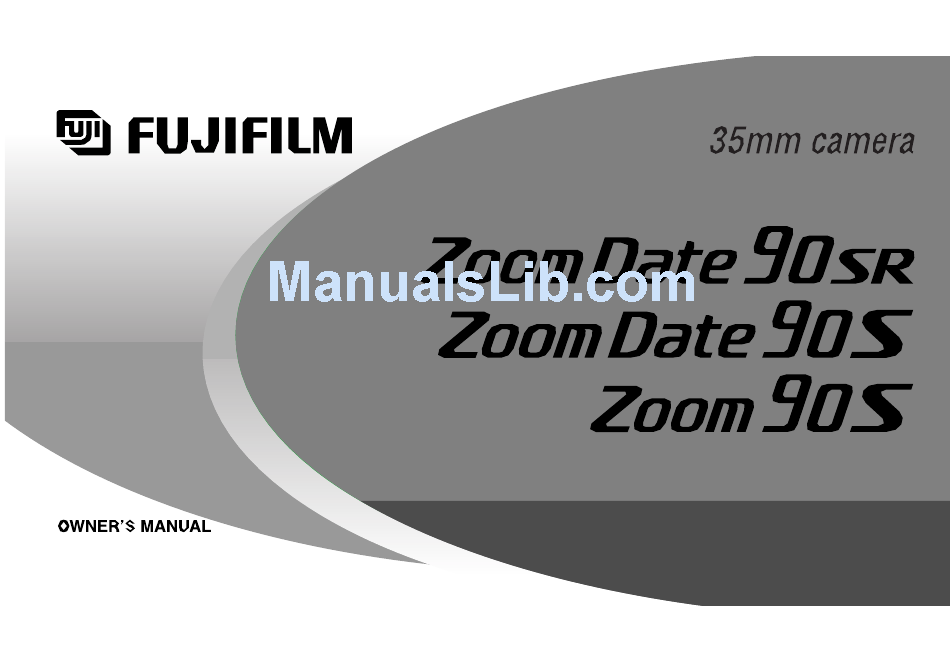

FujiFilm Zoom Date 90 SR Owner's Manual

FujiFilm Zoom Date 90 SR Owner's Manual

35 mm camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for FujiFilm Zoom Date 90 SR

Summary of Contents for FujiFilm Zoom Date 90 SR

  • Page 2 • This owner’s manual covers the three models, Zoom Date 90 SR, Zoom Date 90S and Zoom 90S. The illustrations in the owner’s manual show the Zoom Date 90SR. On the other models, some designs may be somewhat different from our illustrations.

  • Page 3: Table Of Contents

    CONTENTS FEATURES ................3 USING THE SELF-TIMER ............40 PART NAMES ................4 USING THE REMOTE CONTROLLER Liquid Crystal Display ............. 6 (on the Zoom Date 90SR only) ..........42 Viewfinder ................7 TROUBLE SHOOTING ............45 1. PRELIMINARY STEPS COMMON SENSE CAMERA CARE ........

  • Page 4: Part Names

    PART NAMES 1 Exposure Mode Button 2 Power Button 7 (→p.30) 3 Shutter Release Button 4 Viewfinder Window 8 (→p.40,42,13,15) 5 AE Light Sensor 1 (→p.32) 6 Strap Lug 9 (→p.13,16) 7 Mid-Roll Rewind Button 2 (→p.11) 8 Self-timer/Remote 0 (→p.6) ∗...
  • Page 5 F AF Lamp (green) G Viewfinder Eye-piece H FILM TIP Mark J (→p.22) F (→p.23) I Film Take-up Spool K (→p.18) J Zoom Button G (→p.7) K Film Confirmation Window L Film Pressure Plate M Camera Back N Battery Compartment H (→p.19) Cover O Film Chamber...

  • Page 6: Liquid Crystal Display

    R Landscape Mode Liquid Crystal Display S Red-eye Reduction Flash R (→p.38) V (→p.12) Mode Back Light Compensa- W (→p.20,40) tion Flash Mode/ S (→p.35) Flash-off Mode/ Flash Charging T (→p.37,23) U Night Portrait (Slow Sync) Mode V Battery Status W Picture Counter/Self- timer Count X (→p.40)

  • Page 7: Viewfinder

    Viewfinder A : Framing area Compose the image within this area. B : AF (Auto-focus) spot Position this spot over the main subject in your picture. C : Parallax correction guides When taking pictures at close distances (Closer than 1.5 m/4.9 ft.), use these indi- cators as a guide when composing your picture.

  • Page 8: Preliminary Steps Attaching The Strap

    1. PRELIMINARY STEPS ATTACHING THE STRAP Slip the thin piece of the camera-strap through the small hole on the left side of the camera and leave a loop. Slide the thick part of the strap through this loop and pull tight.

  • Page 9: Loading The Batteries

    LOADING THE BATTERIES Your camera requires two alkaline batteries (Size AA/LR6) for reliable serv- ice. To load the batteries: 1 Flip open the battery compartment cover. 2 Load the batteries following the instructions shown in the diagram on the in- side of the battery compartment cover.
  • Page 10 ∗ Do not apply force when opening or closing the battery compartment cover. ∗ Make sure that new replacement batteries are both same brand and type. ∗ Do not use Ni-Cd batteries. ∗ Two alkaline batteries should be enough for about 240 pictures (based on our test conditions). ∗...

  • Page 11: Turning On Your Camera

    TURNING ON YOUR CAMERA Before you can use your camera, you must turn the power on. First press the power supply button which turns on the power. Pressing this button a second time will turn the power off. When you turn your camera on, the lens cover will open and the initial display will appear on the LCD.

  • Page 12: Checking Your Battery

    CHECKING YOUR BATTERY To determine the capacity of the battery in your camera, turn the camera on and check the battery indicator on the LCD panel. 1 Lit : Battery is OK. 2 Lit : Battery is low. Replace with new batteries. 3 Blinks: Shutter cannot be released because battery is dead.

  • Page 13: Setting The Date (Year-Month-Day/Hour-Minute)

    SETTING THE DATE (YEAR-MONTH-DAY/ HOUR-MINUTE) (on the Zoom Date 90SR and Zoom Date 90S only) Setting the date when loading or changing the batteries. Turn the camera on and then press the DATE button. The “Year” blinks and the camera will enter the date setting mode. Year : ’02 to ’32 (2002 to 2032) Month : 1 to 12 Day : 1 to 31...
  • Page 14 To cancel the date/time setting mode, press the DATE/SEL button after changing the “Minutes”. To set the time (hour or minute) by the radio, press the DATE/SEL button when the time signal indicates zero. ∗ The year, month, and day will change together with the hour and minute.
  • Page 15 Changing the date after setting it. Turn the camera on and then hold down the DATE button for at least 2 seconds or longer. The “Day” blinks and the date change mode is entered. Using the process described in steps 2 1 to 2 on page 13, set the date with the SET and SEL buttons.

  • Page 16: Selecting The Date Mode

    SELECTING THE DATE MODE (on the Zoom Date 90SR and Zoom Date 90S only) The date and time (year-month-day/ hour-minute) will be printed at the lower right of the picture. ∗ The date display printed on the front of the picture may not be clearly visible against a dark background.

  • Page 17: Using Your Camera Loading The Camera

    2. USING YOUR CAMERA LOADING THE CAMERA Your camera uses standard 35mm film available anywhere. Almost all 35mm films will have a DX coding symbol on the film box and on the cassette itself. Information you will see includes: A : Number of pictures B : DX code symbol C : Film speed (sensitivity to light or ISO rating) •...
  • Page 18 Check that there is no film in the camera and that the picture counter is not dis- played. ∗ Never open the camera back while film is in your camera. Before replacing the film, refer to page 30. 1 To load the film, slide camera back lock in the direction of the arrow as shown in the picture at left.
  • Page 19 To load the roll of film keep the long end of the spool in the film cassette at the top of the film compartment as shown in the drawing. Drop the film in the camera. A : FILM TIP mark B : Film take-up spool C : Film cassette While holding the film in place, pull the end of the film out to the FILM TIP mark and...
  • Page 20 Close the camera back. The film is wound to the first frame. ∗ The type, number of pictures, and speed of the film that has been loaded may be checked with the film confirmation window. Check that the picture counter “ ” appears on the LCD. If the film is not correctly loaded, “...

  • Page 21: Using Your Camera

    USING YOUR CAMERA Turn the camera on and hold it firmly using both hands as shown in the picture. When taking vertical pictures, hold the camera with the flash unit at the top. Before taking important, once-in-a-lifetime pictures such as weddings or special events, take a few test shots to make sure your camera is working correctly.
  • Page 22 To use the zoom lens, press the mark until you see the composition you want in the finder. Pressing the mark will set the lens at the shorter focal lengths to obtain wide-angle coverage. ∗ The focusing range for clear pictures is a minimum of 0.9 m (3.0 ft.) with no maximum. Aim the camera at your subject so that the whole AF frame covers it.
  • Page 23 Press down the shutter release button halfway. Focusing is complete when the AF lamp (green) lights up. ∗ If you are closer than 90 cm (35 in.) to the subject, the AF lamp will start blinking to warn you that the subject cannot be focused. If you are closer than 45 cm (18 in.) to the subject, the AF lamp turns on but the subject cannot be focused.
  • Page 24 Close-up photography A : Viewfinder B : Print finishing C : Parallax correction guides When photographing a subject that is closer than about 1.5 m (4.9 ft.) from the camera, the area within the frame shown in the diagram on the left will be in the picture.
  • Page 25 There are a few conditions when the camera’s autofocus system may not function accurately. At these times, you should use the “Auto-Focus Lock” settings (→p.26) or the “Landscape Mode” setting (→p.38). Conditions requiring these settings include: • A bright light source within the picture such as the sun near your subject, a strong light reflection such as from water or from the windshield of a car; •...

  • Page 26: Using The Auto-Focus Lock

    USING THE AUTO-FOCUS LOCK In the example shown at left, the AF frame is off the subject (in this case, the people). It covers the background. In this case the lens will not focus on the subject but the background. Move the camera to position the AF frame over the subject.
  • Page 27 With the AF frame positioned over the subject, press down the shutter release but- ton halfway to set the Auto-Focus lock. Check that the AF lamp (green) lights up. While holding the shutter release button halfway down to keep the Auto-focus lock on, move the camera back to the original position to recompose your picture, then press the shutter release button all the way down.

  • Page 28: Unloading The Film Or Removing Film In Mid-Roll

    UNLOADING THE FILM OR REMOVING FILM IN MID-ROLL To Unload the Film When the last frame in the film has been exposed, the lens part is stored in the camera body and the film automatically rewinds. When rewinding is complete, the picture counter will read “ ”. ∗...
  • Page 29 1 Slide the camera back lock in the direction indicated by the arrow. 2 Open the camera back in the direction indicated by the arrow. ∗ Never apply force when opening or closing the camera back. Remove the film.
  • Page 30 Removing film in mid-roll Press the button with the point of a pen or something similar. When rewinding is complete, the picture counter will read “ ”. ∗ Do not press the button with any object that has a sharp point such as a pin, needle or a very sharp pencil.
  • Page 31 N Do not open the camera back while there is a film in mid-roll in the camera. If the camera back is opened while there is a film in mid-roll in the camera, the film may be exposed to the light. The picture counter is reset to “...

  • Page 32: Advanced Techniques Selecting The Exposure Mode

    3. ADVANCED TECHNIQUES SELECTING THE EXPOSURE MODE Your camera offers 6 exposure modes to give you successful pictures under a wide range of photographic situations with various subjects. These modes are: ) Automatic flash for low light situations ) Red-eye reduction flash for more pleasing pictures of people ) Back light compensation flash mode ) Flash-off mode for natural light pictures ) Landscape mode for pictures of distant subjects...
  • Page 33 Each press of the button changes the exposure mode in the following order: → → → → → • The automatic flash mode and red-eye reduction flash mode are maintained even when the power is turned off. • The back light compensation flash mode and flash-off mode are cancelled when the power in the camera is turned off.

  • Page 34: Effective Flash Range

    The operating range of the film (flash distance) will vary depending upon the film’s sensitivity (ISO speed). When using the flash, keep your subject within the range of the flash as indicated in the chart below. Effective flash range Film speed Wide angle Telephoto (38 mm)
  • Page 35 : no display) Automatic flash at low brightness mode Used for general photography. The flash lamp fires automatically when the brightness of the subject is lower than the predetermined level. ) Red-eye reduction flash mode Reduce red-eye. The red-eye reduction lamp turns on for about 1 second, then the camera takes a picture when the flash fires.
  • Page 36 Dealing with red-eye When you photograph a person in dim light using the flash, the pupil of the eye will sometimes appear red. Under low light, the pupils of the eye dilate for better vision. Red-eye is caused by light from the flash entering the dilated pupils and being reflected back to the lens.
  • Page 37 ) Back light compensation flash mode Use this mode to avoid deep shadows when photographing against the light such as a person standing in front of a window or under a tree with a very bright background. This produces more natural looking flash photographs.
  • Page 38 ) Landscape mode Used when taking landscape pictures or photographing remote (night) scenes through window glass. The lens is focused for the distant subjects. The flash does not fire in this mode. ∗ This mode is cancelled after each shot. ∗...
  • Page 39 ) Night portrait (slow sync) mode Used when taking portraits to record the background in a night scene. The slow shutter speed/red-eye reduction flash mode can be used to make sure that both people and nighttime background scenery are photographed clearly. (After the red-eye reduction lamp has lit for about 1 seconds, the flash fires.) ∗...

  • Page 40: Using The Self-Timer

    USING THE SELF-TIMER Turn the camera on and press the button. The self-timer can be used to take up to 3 consecutive exposures. Each press of the button changes the self-timer mode in the following order: → → → ∗ “...
  • Page 41 After the self-timer lamp remains lit for about 7 seconds, it blinks for about 3 seconds, and then the shutter is released. When taking consecutive exposures, the shutter is released the set number of times at an interval of between 3 and 10 seconds. •...

  • Page 42: Using The Remote Controller (On The Zoom Date 90Sr Only)

    USING THE REMOTE CONTROLLER (on the Zoom Date 90SR only) A FUJIFILM remote controller is required. Remove the remote controller from its holder by sliding it in the direction of the arrow. A : Remote controller holder B : Transmitter C : Shutter release button ∗...
  • Page 43 Aim the AF Frame at your subject and compose the picture. 1 Point the remote controller toward the camera’s remote controller sensor, and then press the remote controller’s shutter release button. 2 After the self-timer/remote controller lamp blinks for about 2 seconds, the shutter is released.
  • Page 44 The coverage of the remote controller is up to approx. 5 m (16.4 ft.) when used directly in front of the camera, and up to approx. 3.5 m (11.5 ft.) when used at a 3.5 m vertical or horizontal angle of 20°. (11.5 ft.) ∗...

  • Page 45: Trouble Shooting

    Is the date correction mode on? Cancel the date correction mode. set. (on the Zoom Date 90SR and Zoom Date 90S only) “ ” is blinking and the shut- The camera is broken. Please contact a FUJIFILM authorized distributor. ter can not be released.
  • Page 46 Printed pictures Problems Possible Causes Solutions Page 1 Was your finger on the AF windows 1 When shooting a picture, hold your camera cor- Picture is not sharp. when shooting? rectly so that your finger is not on the AF windows. 2 Did you aim the subject properly? 2 Compose the picture in the AF frame and shoot, or shoot using AF Lock.

  • Page 47: Common Sense Camera Care

    COMMON SENSE CAMERA CARE Although your camera is designed for many years of service, It is recommended that undeveloped film and cameras con- it is a precision instrument and requires thoughtful handling. taining film be carried as hand luggage when flying. If included In particular, avoid exposing it to shock, moisture or physical in checked baggage, X-ray inspections may cause overprint- abuse such as dropping it on the floor.

  • Page 48: Specifications

    SPECIFICATIONS • • Film Film Speed Setting 135 (35 mm) DX roll film Automatic (DX roll film) for speeds from ISO 50-3200 • • Picture Size Film Loading 24 mm × 36 mm Automatic • • Lens Film Advance Fujinon lens, 4 components, 4 elements, f=38 – 90 mm 1:7.0 – Automatic (motorized), film wind and rewind system, provision for 1:11.5 mid-roll rewinding (Use the mid-roll rewind button)
  • Page 49 • Power Supply Two alkaline batteries (LR6/AA size) or comparable batteries • Others Tripod socket, Date/Time Imprinting (on the Zoom Date 90SR and Zoom Date 90S only), Remote controller (compatible) (on the Zoom Date 90SR only). • Dimensions & Weight 115.0 ×...

  • Page 50: Important Safety Notice

    IMPORTANT SAFETY NOTICE This product has been developed to be as safe as possible when used for its designed purposes. Under normal circumstances, this product will provide long, safe service when handled correctly. It is important, however, that this product is handled properly and used only for photographic purposes.
  • Page 51 WARNING Do not use this camera in locations with a high concentration of flammable gas or near open gasoline, Benzine, paint thinner or other volatile substances which can give off dangerous vapors. Failure to observe this precaution could result in explosion or fire. Store your camera out of the reach of infants and young children.
  • Page 52 26-30, Nishiazabu 2-chome, Minato-ku, Tokyo 106-8620, Japan <FUJIFILM ABROAD> In North America FUJI PHOTO FILM U.S.A., INC. 555 Taxter Road, Elmsford, N.Y. 10523, U.S.A. FUJI PHOTO FILM CANADA INC. 275 Britannia Road East, Mississauga, Ontario , L4Z 2E7, Canada FUJI PHOTO FILM HAWAII, INC.
