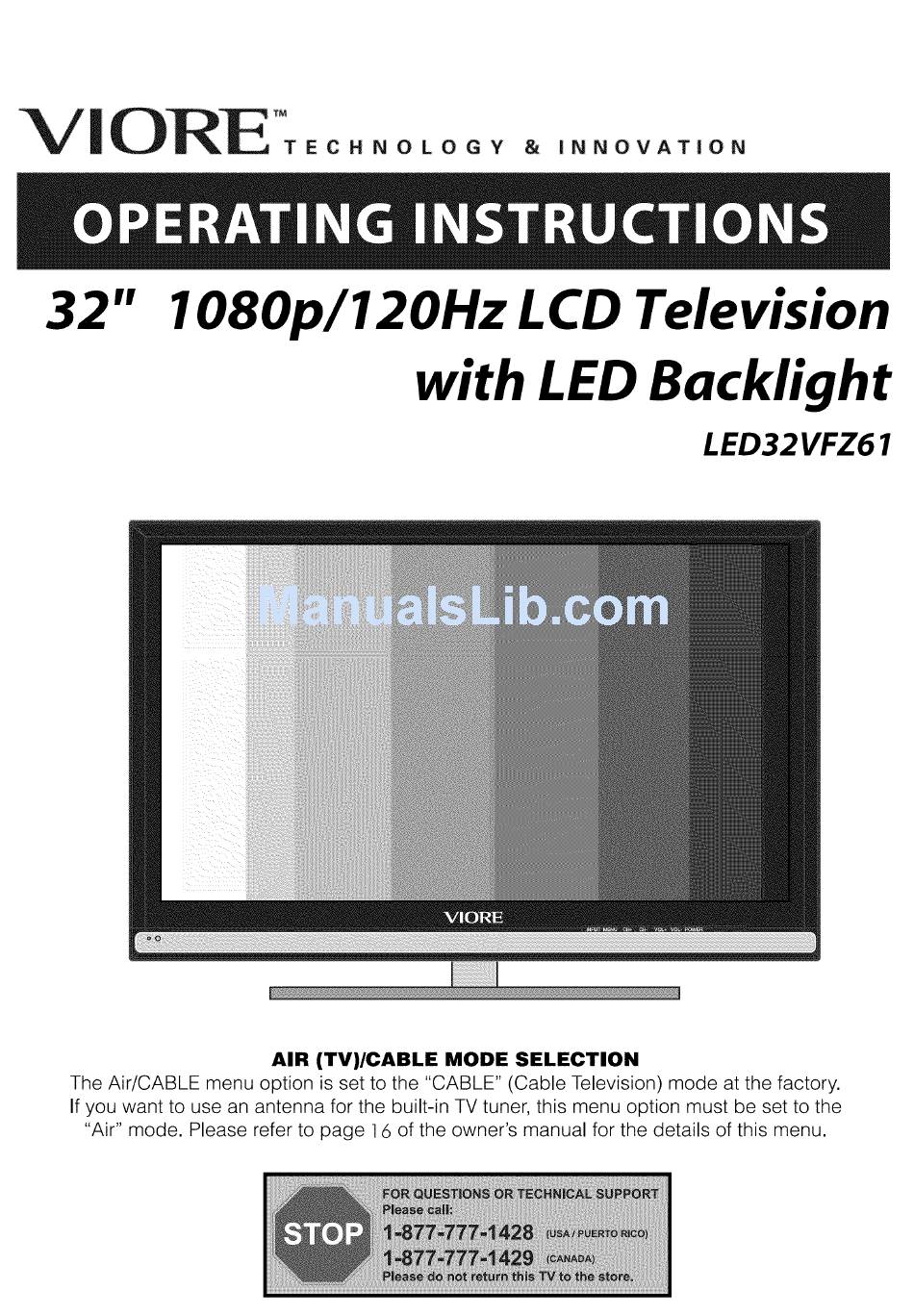

32" 1080p/120Hz
LCD Television
with LED Backlight
LED32VFZ61
AIR (TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE"
(Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page ] 6 of the owner's manual for the details of this menu.
Advertisement
Related Manuals for VIORE LED32VFZ61
Summary of Contents for VIORE LED32VFZ61
- Page 1 32" 1080p/120Hz LCD Television with LED Backlight LED32VFZ61 AIR (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
- Page 2 • Names of each part(Front View) / Accessories ............• Names of each part(Back View) ..............• Mounting on a Desktop / Installation Precautions............. • Installing an Antenna ................• Remote control ................. • Precautions / How to use remote control ............•...
- Page 3 The lightning flash with arrowhead symbol, within an equilateral triangle intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute risk of electric shock to the persons. The exclamation point within an equilateral triangle...
- Page 4 To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label.
- Page 5 POWER o Led Indicator INPUT MENU VOL+ VOL- O Remote Control window (Keep clear) 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode ®...
- Page 6 PC-IN Video L-in R-in Coax Headphone Service HDMI3 HDMI2 HDMI 1 VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. PC IN: Connect it to the audio output terminal of PC. YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in YPbPr source) VIDEO:...
- Page 7 @ Your LCD TV can be placed on a Desktop as shown in the figure above. ÷ Please refer to the following precautions "Using the Stand". Please secure enough space for safe use. (Please refer to A and B.) Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature.
- Page 8 @ For connecting to ATSC or NTSC broadcasts PC-IN Video L-in R-in Coax Headphone_ @RF Wall Jack with F-Connector Coaxial (Round) Antenna Cable Analog+Digital 75 external ..Antenna Press INPUT button on the remote control to select TV, then press OK button to confirm. Then you can receive the ATSC/NTSC signal.
- Page 9 3. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!
- Page 10 1. Check the polarity (+,-) of the batteries in the remote control. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. lamp, special fluorescent or neon sign is turned on near the LCD TV. 4.
- Page 11 * You can select between the TV signal and the input signal of other equipments connected to the TV. * Use this function to switch to the input source you wish to view. INPUT Press button on the remote control. to move to the desired input source.
- Page 12 Basic OSD Menu operation Press MENU button to display the OSD menu as below: Use < / > button to select the main menu, and press V button to enter the submenu. In the submenu, use A / V button to select the function item, and you could: adjust ("Contrast"...
- Page 13 OSD Menu 1. Picture menu Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture.
- Page 14 2. Audio menu Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequencies intensity. Treble: High frequencies intensity.
- Page 15 3. Time menu Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time: Select between On and Off. Clock: Display the Date/Time according...
- Page 16 4. Setup menu Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position,...
- Page 17 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Change password: Change the password, you must enter the new password twice to confirm it.
- Page 18 6. Channel menu Air/Cable: Allow you to select antenna between Air and Cable. If you selet "Cable", the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. -/_ If you select "Cable"...
- Page 19 Show/Hide: Allow you to show or hide the channels. Use A / V button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press <...
- Page 20 • Do not use other functions that are not mentioned in this user's manual. • In case a problem occurs with your LCD TV, please take the following steps first. ° If you still have the problem, turn the power off and contact your dealer or an authorized service center. The screen does not appear.
- Page 21 The cabinet design and electronics specifications will be modified without prior notice for improving the performance.
- Page 22 Product freight needs to be prepaid by original purchaser and shipped in either its original packaging or packaging affording an equal degree of protection. VIORE shall not be responsible for or obligated to replace damaged goods. If you reside in California and you cannot transport the television due to the size, weight, and method of attachment, VlORE will provide transportation for the television to the repair facility.
- Page 23 VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
