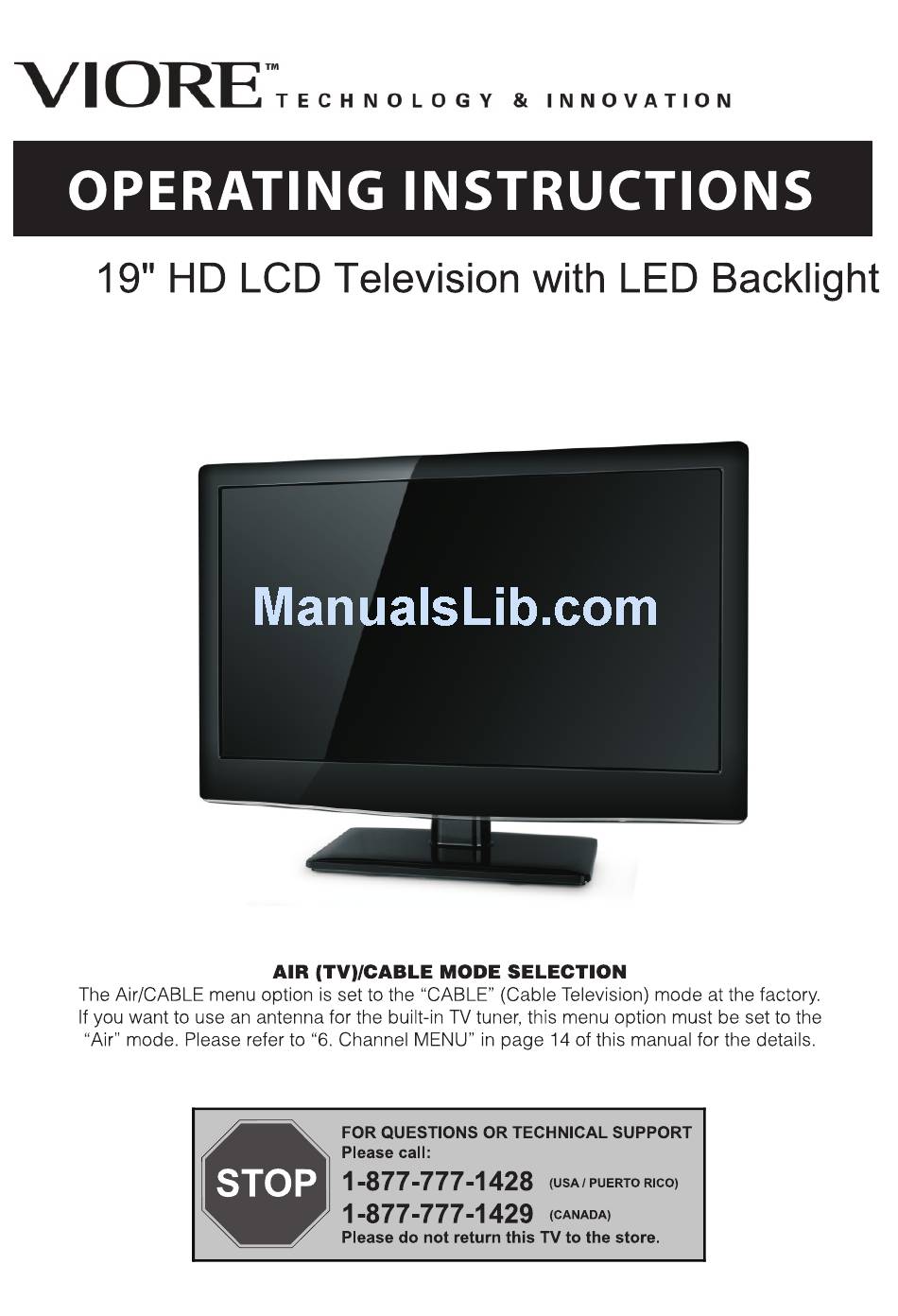

- Page 1 LED19VH50...
-
Page 2: Table Of Contents
Safety and warnings... 2-3 Introduction..4 Installation...5-8 Wall Mount ... 9 Remote Control..10 Operation...11-15 Trouble Shooting...16 Warranty Card...17 Contents... -
Page 3: Safety And Warnings
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. -
Page 4: Safety And Warnings
High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. Do not drop or push objects into the television cabinet slots or openings. -
Page 5: Introduction
Super slim LCD TV with LED backlight 1366 x 768 native resolution for HD performance Integrated ATSC TV tuner for HDTV broadcast reception Beautiful color depth with a dynamic contrast ratio of 10000:1 Dual HDMI inputs for true digital connections... -
Page 6: Installation
Display the input source menu.In MENU mode,press“SOURCE”to confirm the selected item. 2．MENU： Display main MENU. 3．CH+/CH- In TV mode，press“CH+”or“CH-” to change the channel up and down. In MENU mode, press “CH+”or “CH-”to select items . 4．VOL+/VOL- Adjust sound level. In MENU mode, press“VOL+”or“... - Page 7 Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.
-
Page 8: Preset Mode
PRESET MODE RESOLUTION 720*400 640*480 640*480 800*600 800*600 1024*768 1024*768 1024*768 1280*1024 1280*1024 POWER CVBS V.Freq.(Hz) INSTALLATION H.Freq.(KHz) 31.47 31.47 37.50 37.88 46.88 48.36 56.48 60.02 63.98 80.00... -
Page 9: Installation
AV EQUIPMENT You can use the input terminals on TV set rear as follows. HDMI1 HDMI2 HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) VIDEO EQUIPMIENT TO VIDEO OUTPUTS TO AUDIO OUTPUTS It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc... -
Page 10: Wall Mount
- 4 pcs of type M4 screws are required for installing the wall mount bracket to your VIORE TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. -
Page 11: Remote Control
Used to display the channel list. 17: EPG Display all the information of DTV programs. 18: FAV Used to access your favourite channels in digital TV mode. 19: HDMI Hot key directly go to HDMI source. 20: AV Hot key directly go to AV source. -
Page 12: Operation
1. PICTURE MENU The first item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press to select, press to adjust, press MENU to exit. < Picture Mode Standard Contrast Brightness Color Tint Sharpness Advanced Video... -
Page 13: Change Password
Parental Control switch is ON, the below options can be adjusted. US: Press button, the screen will display as follow: < MPAA Adjust Select 1):TV: Press button, the screen will display as follow: TV rating TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA... - Page 14 16ans+ Over 16 years: Could contain frequent violent scenes and violence. 18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. RRT setting: in ATSC digital TV mode, it could be adjusted Reset RRT: Press...
-
Page 15: Channel Menu
Channel Lable . DTV signal: Adjust Select 1). Air/Cable: select Air TV signal and cable TV signal. to adjust, press MENU 2). Auto Scan: If it's the first time you use the TV, you > > English Menu Exit >... -
Page 16: Operation
5. Multimedia MENU If you select storage source. You can use Multimedia Menu to play the JPEG picture and Mp3 music. 1. Select Photo item If select Photo item,the JPEG menu display on screen below: Photo Music 011.jpg 200812222178878787.jpg 20081.jpg 20087.jpg 20287.jpg 20787.jpg... -
Page 17: Trouble Shooting
