Tappan TGF645WFD7 Control Manual

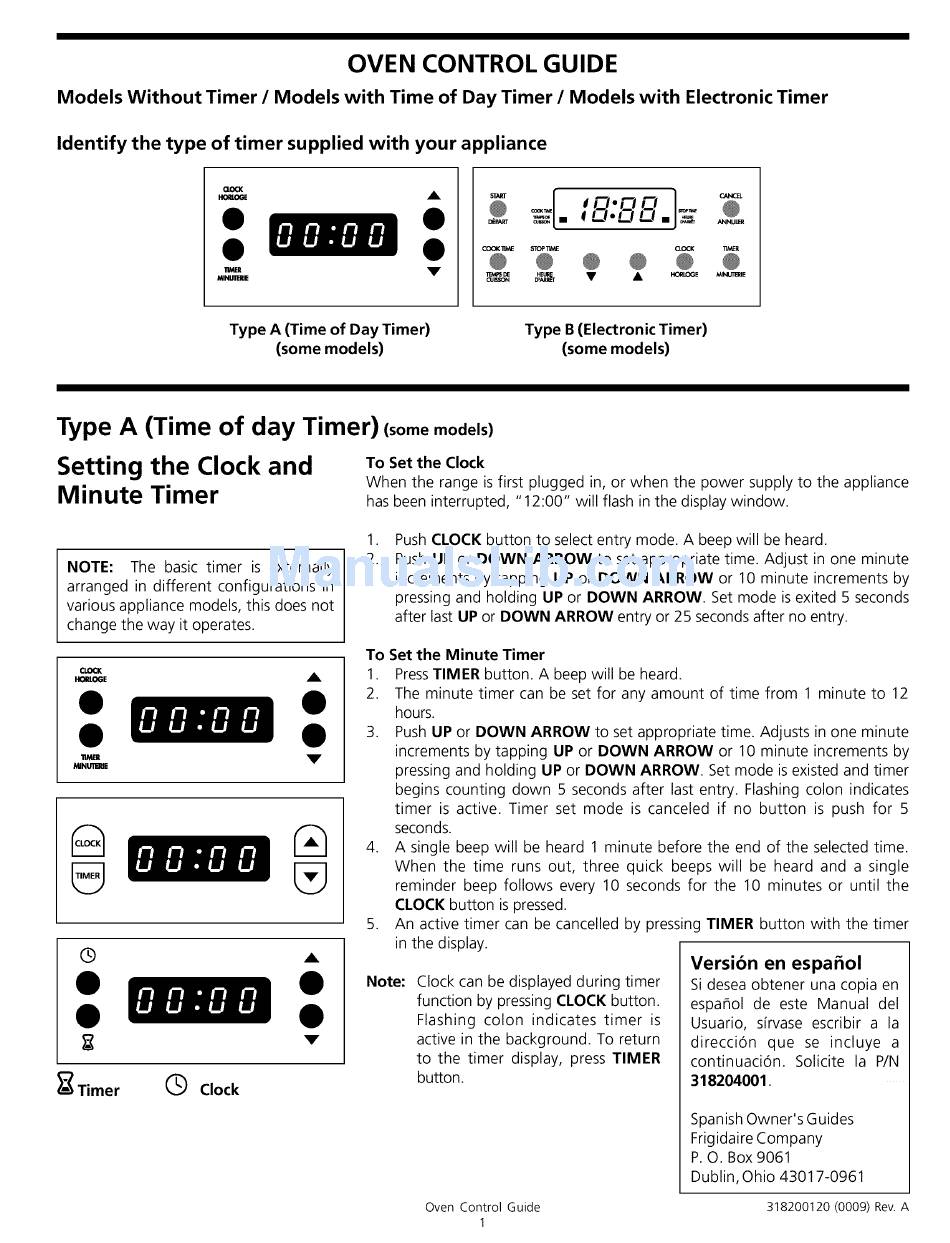

OVEN CONTROL GUIDE
Models Without Timer / Models with Time of Day Timer / Models with Electronic Timer
Identify the type of timer supplied with your appliance
QOCK
HORtOGE
_R V
MINU11ERIE
COOK 11ME STOP _ME CLOCK 11MER
@ @ @ @
l_d_ DE CUISS(_ DH_._ • • HORIJC_GE MINU11E_JE
Type A (Time of Day Timer)
(some models)
Type B (Electronic Timer)
(some models)
Type A (Time of day Timer)(somemodels)
Setting the Clock and
Minute Timer
To Set the Clock
When the range is first plugged in, or when the power supply to the appliance
has been interrupted, "12:00" will flash in the display window.
NOTE: The basic timer is externally
arranged in different configurations in
various appliance models, this does not
change the way it operates.
CLOCK
HORLOGE
i= V
MINU11_IE
Q A
II
Timer ®
Clock
V
.
2.
Push CLOCK button to select entry mode. A beep will be heard.
Push UP or DOWN ARROW to set appropriate time. Adjust in one minute
increments by tapping UP or DOWN ARROW or 10 minute increments by
pressing and holding UP or DOWN ARROW. Set mode is exited 5 seconds
after last UP or DOWN ARROW entry or 25 seconds after no entry.
To Set the Minute Timer
1. PressTIMER button. A beep will be heard.
2. The minute timer can be set for any amount of time from 1 minute to 12
hours.
3. Push UP or DOWN ARROW to set appropriate time. Adjusts in one minute
increments by tapping UP or DOWN ARROW or 10 minute increments by
pressing and holding UP or DOWN ARROW. Set mode is existed and timer
begins counting down 5 seconds after last entry. Flashing colon indicates
timer is active. Timer set mode is canceled if no button is push for 5
seconds.
4. A single beep will be heard 1 minute before the end of the selected time.
When the time runs out, three quick beeps will be heard and a single
reminder beep follows every 10 seconds for the 10 minutes or until the
CLOCK button is pressed.
5. An active timer can be cancelled by pressing TIMER button with the timer
in the display.
Clock can be displayed during timer
function by pressing CLOCK button.
Flashing colon indicates timer is
active in the background. To return
to the timer display, press TIMER
button.
Note:
Versibn en espafiol
Si desea obtener una copia en
espanol de este Manual del
Usuario, s[rvase escribir a la
direcci6n que se incluye a
continuaci6n. Solicite la P/N
318204001.
Spanish Owner's Guides
Frigidaire Company
P. O. Box 9061
Dublin, Ohio 43017-0961
Oven Control Guide 318200120 (0009) Rev. A
1
