Summary of Contents for Tappan TGF645WFW3

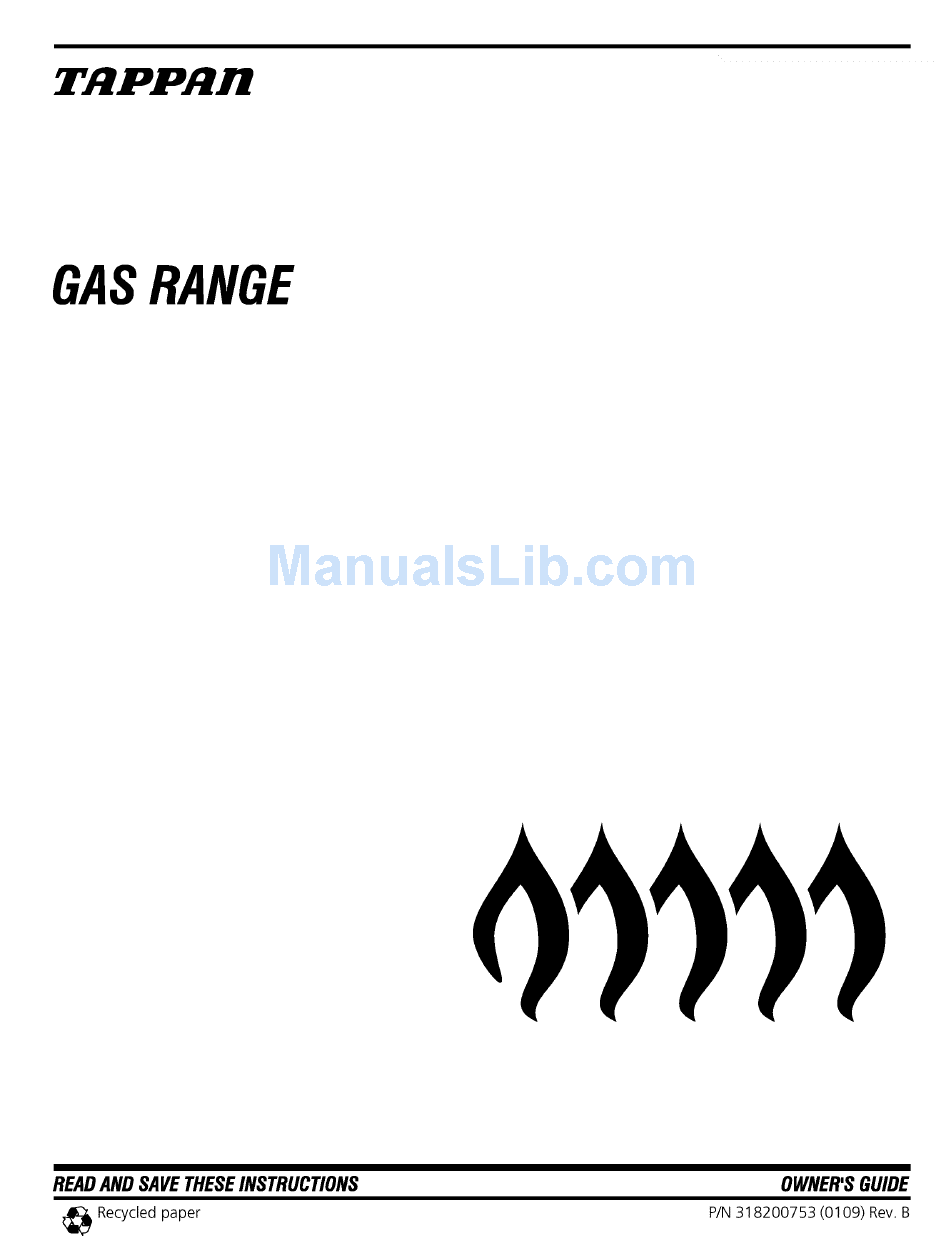

- Page 1 TflPPfln GASRANGE READAND SAVE THESEINSTRUCTIONS OWNER'S GUIDE Recycled paper P/N 318200753 (0109) Rev. B...
- Page 2 Thank you for choosing this appliance. The information contained within this Product Registration Owner's Guide will instruct you on how to properly operate and care for your appliance. Pleaseread through the information contained in your literature pack to Register Your Product learn more about your new appliance.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future reference. This guide contains important safety symbols and instructions. Please pay special attention to these symbols and follow all instructions given. Here is a brief explanation of the use of these symbols. Thissymbolwill helpalertyoutosituationsthat This symbol will help alert you to situations may cause serious bodily harm, death or property damage,...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS(continued) • Never Leave Surface Burners Unattended at High Never use your appliance for warming or SettingsiBoilovers cause smoking and greasy spillovers heating the room. that may ignite, or a pan that has boiled dry may melt. • Do Not Use Water or Flour on Grease Fires--Smother •...
- Page 5 IMPORTANT SAFETY INSTRUCTIONSccontinued) * Do not cover the broiler grid with aluminum foil. • Kitchen cleaners/aerosolsiAIways follow manufacturer's recommended directions for use. Be aware Exposed fat and grease could ignite. that excess residue from cleaners and aerosols may ignite • Do not touch a hot light bulb (some models) with a causing damage and/or injury.
-
Page 6: Liquefied Petroleum (Propane) Gas Conversion
This appliance can be used with Natural Gas or Liquefied Petroleum (Propane) Gas. Liquefied Petroleum It is shipped from the factory for use with Natural Gas. (Propane) Refer tothe Installation Instructions for conversion from Natural Gasto Propane Gas, Conversion or from Propane Gas to Natural Gas. Severe shock or damage to the appliance may occur if the appliance is not installed by a qualified installer. -
Page 7: Flame Size
Flame Size For most cooking, start on the highest control setting and then turn toa lower one to complete the process. Use the chart below as a guide for determining proper Never extend the flame beyond the outer flame size for various types of cooking. The size and type of utensil used and the edge of the utensil. -
Page 8: Specialty Pans & Trivets
Woks with flat bottoms suitable for Specialty Pans & Trivets DO NOT use a wok if it is equipped use on your cooktop are available in with a metal ring that extends beyond most cookshop or hardware stores. burner unit. Because this ring... -
Page 9: Setting Surface Controls
Each burner lights automatically from an electric ignitor. Electric ignitors light Setting Surface automatically each time a Surface Control knob is turned to the LITE position. Controls To Operate the Surface Burner Surface Control Knob Place cooking utensil on burner. Push in and turn the Surface Control knob to LITE.Note: All electronic ignitors will click at the same time. -
Page 10: Before Setting Oven Controls
Before Setting Oven Arranging Oven Racks AL WA YS ARRANGE OVENRACKS WHEN THEOVEN ISCOOL(PRIORTOOPERATING Controls THE OVEN). Always use oven mitts when using the oven. Oven Vent Location To remove an oven rack, pull the rack The oven is vented through the center forward until it stops. -
Page 11: Air Circulation In The Oven
Air Circulation in the For best air circulation and baking results, center pans as much as possible. Allow 2- 4" (5-10 cm) around the utensil(s) for proper air circulation and be sure pans do not Oven touch each other, the door, sides or back of oven. The hot air must circulate around the pans in the oven for even heat to reach all parts of the oven. -
Page 12: Oven Cleaning
Oven Cleaning (continued) Self-Cleaning Oven (some models) Refer to your Electonic Oven Control Guide During the self-cleaning cycle, the outside of the wall oven can become very hot to the touch. DO NOT leave small children unattended near the appliance. Use care when opening the oven door after self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. -
Page 13: Oven Cleaning
Oven Cleaning (continued) Continuous Cleaning Oven (some models) Continuous cleaning ovens have a special coating which is a porous ceramic Adhere to the following cleaning material.This rough coating tendsto prevent greasespatters from forming little beads precautions: which run down the side walls leaving streaks that require hand cleaning. Instead, •... -
Page 14: General Cleaning
General Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAJOR CLEANINGS LATER. Surfaces to Clean Aluminum (Trim Pieces)&... - Page 15 General Cleaning To Raise and Lower the Top for Cleaning Remove burner grates and spillover bowls. Set aside. (continued) Grasp the front of the cooktop and then lift. Lift the top high enough to fully raise the support rods. The Lift-up rods will support the top in its raised position.
-
Page 16: Storage Drawer
General Cleaning To Remove and Replace Oven Door The oven door can be removed to make oven cleaning easier. (continued) To Remove Oven Door: The door is heavy. For Open door approximately 4 inches to the stop position. safe, temporary storage, laythe door flat Grasp door at side edges. -
Page 17: Changing Cooktop And Oven Lights
Changing Cooktop and Be sure the oven is unplugged and all parts are COOL before replacing the oven light. Wear a leather-faced glove for protection against possible Oven Lights (some models) broken glass. To Change the Cooktop Light (some models) Thermostat Screw_ Fluorescent... -
Page 18: Avoid Service Checklist
Avoid Service Checklist Before you call for service, reviewthislist. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION Oven Control Beeps and Displays Electronic control has detected a fault condition. - Page 19 Entire oven does not operate. Controls are not set properly. See instructions under Setting Oven Controls or Oven Cleaning to set the controls. Automatic timed oven (Timed Bake feature) set incorrectly. Follow steps under "To Set the Automatic Timer (Timed Bake Feature)" in Setting Oven Controls. Make sure cord/plug is plugged tightly into outlet.
-
Page 20: Warranty
RANGE WARRANTY Your range is protected by this warranty WARRAI_.q'Y THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLEFOR: PERIOD WE WILL: FULL ONE-YEAR Costs service calls that IBted under NORMAL One year from original Pay all costs for repairing or replacing any parts of this WARRANTY RESPONSIBILITIESOF THE CONSUMER.
