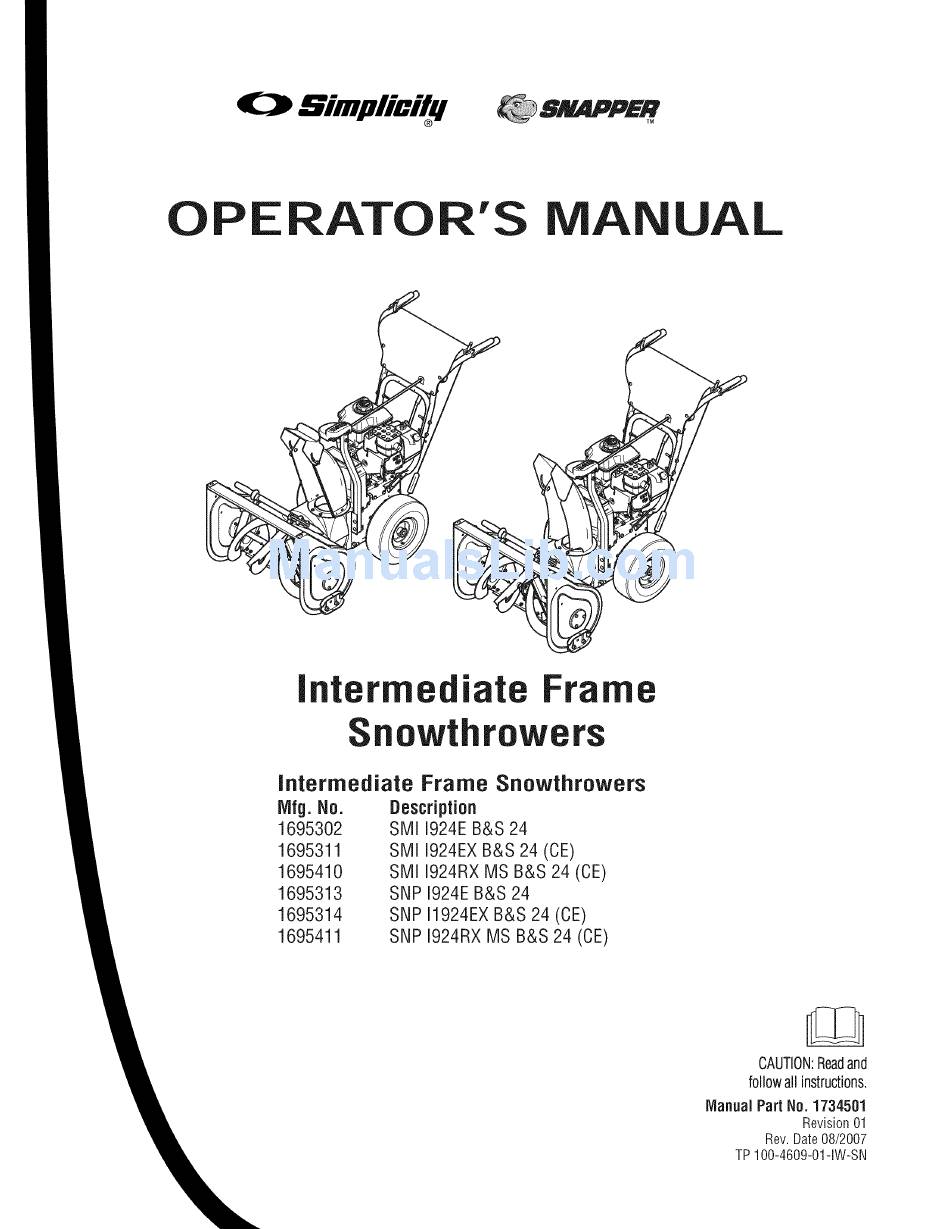

Bimpliuitq
0 P E RATO
UAL
Jn
rrne ia
Frame
Snowthrowers
intermediate
Frame Snowthrowers
IVlfg. No.
1695302
1695311
1695410
1695313
1695314
1695411
Description
SM11924E B&S 24
SM11924EX B&S 24 (CE)
SM11924RX MS B&S 24 (CE)
SNP 1924E B&S 24
SNP 11924EX B&S 24 (CE)
SNP 1924RX MS B&S 24 (CE)
CAUTION: Read a nd
follow all instructions.
ManualPartNo. 1734501
Revision 01
Rev. Date 08/2007
TP 100-4609-01-1W-SN
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Simplicity 1695302
Summary of Contents for Simplicity 1695302
- Page 1 Bimpliuitq 0 P E RATO rrne ia Frame Snowthrowers intermediate Frame Snowthrowers IVlfg. No. Description 1695302 SM11924E B&S 24 1695311 SM11924EX B&S 24 (CE) 1695410 SM11924RX MS B&S 24 (CE) 1695313 SNP 1924E B&S 24 1695314 SNP 11924EX B&S 24 (CE) 1695411 SNP 1924RX MS B&S 24 (CE) CAUTION: Read a nd...
-
Page 2: Operator Safety
SAVETHESEiNSTRUCTiONS READTHEMANUAL Theoperator'smanualcontains i mportant s afety information y ouneedtobe awareof BEFORE youoperateyourunitas well asDURING operation. Safe operating techniques, an explanation of the product's features and controls, and maintenance information is included to help you get the most out of your equipment investment, Failure to obey the safety rules could result in loss of control of the unit, severe personal injury or death to you, or bystanders, or damage to property or equipment, Safety icons... -
Page 3: Table Of Contents
Table of Contents Operator Safety .......... Readthe Manual ..........Safety Rules and information ........Safety Decals.........."1"1 Safety icons ..........identification Numbers........Features & Controls ........Control Locations..........© Operation ..........© General Operation ........... Starting Controls ..........Starting the Engine ........... Stopping the Engine.......... -
Page 4: Safety Rules And Information
Congratulations on purchasing a superior-quality piece of lawn and garden equipment. Our products are designed and manufactured to meet or exceed all industry standards for safety. Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you are responsible for your safety and that of those around you. - Page 5 SaletyRules andInfomatm N0vJng This equipment has many moving parts that can injure you or someone else. ,--t- However, if you are standing in the operator's position, and follow all the rubs in this book, the unit is safe to operate. The auger and impeller have spinning parts that can amputate hands and feet.
- Page 6 SafetyRules & Informtm This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. _The triangle in text signifies important cautions or warnings which must be followed.
- Page 7 SafetyRules aridIflfematm discharge angle. until fuel vapors have dissipated. 18. Never direct discharge at bystanders or allow 7. Always observe safe refueling and fuel handling anyone in front of the unit. practices when refueling the unit after 19. Never leave a running unit unattended. Always transportation or storage.
-
Page 8: Safety Decals
instructions are not followed. The information is for DECALS your safety and it is important. >, This unit has been designed and manufactured to The safety decals below are on your unit. provide you with the safety and reliability you would expect from an industry leader in outdoor power If any of these decals are lost or damaged, replace equipment. - Page 9 DGCBIS MODEL DECALS ,< Part No. 724172 - SMI/SNAPPER Speed Control Decal, All Models CE MODEL DECALS Part No. 1734591 - SMI/SNAPPER Main Dash Decal, Export - CE Part No. 1727208 Part No. 1727207 Part No. 728183 Discharge Chute Auger Danger Decal important Danger Decal Over Adjustment...
-
Page 10: Safety Icons
SAFETY iCONS WARNING: READ OPERATOR'S WARNING: DISMEMBERMENT. MANUAL. This machine can amputate limbs. Read and understand the Keep bystanders and children away Operator's Manual before using this when engine is running. machine. DANGER:D|SMEMBERMENT. DANGER: THROWN OBJECTS. The auger can amputate limbs. This machine is capable of throwing iiiiiili_i_!i! ;_ . -
Page 11: Identification Numbers
ProductIdentification Numbers ""='_ _[_piicity Manufacturing, inc. W_"_ington WJ 53074-0997 North American CE Models ,'-4- '< Illllllllllllllllllll_4i_._lllllllllH CE Models Serial Sticker (Only) !!!!!!!!!!!!!!!!!!!!!!! Model Description Name/Number Unit MFG Number Unit SERIAL Number Mower Deck MFG Number Mower Deck SERIAL Number When contacting your authorized dealer for replacement... - Page 12 Festures Please take a moment and familiarize yourseff with the name, location, function of these controls so that you will better understand the safety and operating ¢o instructions provided in © this manual. © ¢o I',l Figure 1. Control Locations CONTROL LOCATIONS The information below briefly describes the function of individual controls.
-
Page 13: Features & Controls
Features & Controls Chute Direction Control Engine Rotating the knob to the left will turn the spout to the The engine key prevents the engine from being left side and rotating the knob to the right will rotate started. The key must be fully inserted into the key the spout to the right side. -
Page 14: Operation
GENERAL OPERATION WARNING CHECKS BEFORE EACH START-UP This unit is a "two-stage" snowthrower. The first stage is the auger, which feeds the 1. Make sure all safety guards are in place and all snow back into the impeller housing. nuts, bolts and clips are secure. second stage is the impeller, which throws 2. -
Page 15: Starting Controls
Operation ,'-4- Figure 2. Engine Controls A. Electric Start Button (Select Models) B. Electric Start Connection (Select Models) C. Stop Switch D. Engine Key E. Starter Handle F. Primer Button G. Choke Knob STARTING CONTROLS Engine Key - The engine key (D) prevents the engine from being started by unauthorized See Figure 2 for the following instructions. -
Page 16: Starting The Engine
OpepatJon STARTING THE ENGINE 1. Check the oil level. See the Engine Manual How to Check/Add Oil section 2. Make sure equipment drive controls are disengaged. 3. Push the stop switch to the on position (A, Figure Figure 5. Rewind Start A. -
Page 17: Stopping The Engine
Operation STOPPING THE ENGINE , WARNING Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. DO NOT choke the carborator to stop the engine. 1. Move the stop switch (A, Figure 7) to the stop position. -
Page 18: Deflector
OperaUon DEFLECTOR The distance of the discharged snow is mainly controlled by the position of the deflector. (Engine speed also affects distance of discharge.) The more the deflector is tilted UP, the farther snow will be thrown. 1. Rotate the adjustment knob (C, Figure 9) counterclockwise to loosen then adjust the deflector to the desired position and tighten the... -
Page 19: Clearinga Clogged Discharge Chute
Operation CLEARING A CLOGGED , WARNING DISCHARGE CHUTE Never store the unit, with gasoline in engine or Hand contact with the rotating auger/impeller inside fuel tank, in a heated shelter or in enclosed, the discharge chute is the most common cause of poorly ventilated enclosures. -
Page 20: Maintenance
MAINTENANCE SCHEDULE MAINTENANCE REQUIRED FREQUENCY NOTES Check / Lubricate Hand Linkage. 10 Hours 10W Oil Lubricate snowthrower. 10 Hours 10W Oil and Grease Check tire pressure. Monthly 20 psi (1.37 bar) 50 Hours; See Engine Manual Change engine oil.*+ Yearly See Engine Manual Clean or replace spark plug.+... -
Page 21: Maintenance Schedule
RegularMaJflteflaflce LUBRICATION IMPORTANT NOTE It is very important that grease fittings on the auger shaft are lubricated regularly. If auger rusts to shaft, damage to worm gear may occur if shear pins do not break. To prevent wheels rusting to axles, it is also necessary to remove the wheels and grease the axles regularly. - Page 22 RegWP MaJflteflaflce CHECK / LUBRICATE LINKAGE Check the function of the Hand controls: the controls should function as described in the CONTROLS section. It is critical for the safe operation of the unit that the controls disengage when released, Lubricate as shown in figure 18, IMPORTANT NOTE...
-
Page 24: Troubleshooting, Adjustment, And Service
TROUBLESHOOTING WARNING This section provides troubleshooting and service Before performing any adjustment or service to instructions. Locate the problem and check the snowthrower, stop the engine and wait for possible cause/remedy in the order listed. moving parts to stop. Remove the key. To Also, refer to the engine manufacturer's Owner's prevent accidental... -
Page 25: Troubleshooting
Troubleshooting REMEDY PROBLEM POSSIBLE CAUSE 1. Chute deflector too low. Auger rotates, but snow is not 1. Adjust deflector as necessary. thrown far enough 2• Ground speed too fast. 2. Use slower speed selector setting. 3. STOP engine and REMOVE the 3•... -
Page 26: Adjustments
AI UStmBfl|$ AUGER DRIVE ADJUSTMENT WARNING , WARNING Do not over-tighten, as this may cause traction drive to engage without depressing the traction Do not over-tighten, as this may lift the lever drive control (arm must remain in up position). and cause auger drive to be engaged... -
Page 27: Run-In Adjustment
Adjustments Run-in Adjustment 8. Note the position of the friction wheel (A, Figure 24). The correct distance from the right side of the ALL MODELS friction wheel to the outside of the frame is 4-5/16" 1. After 5 hours of use, check for proper adjustment. (10.95 cm). -
Page 28: Belt Adjustment
Adjustments BELT ADJUSTMENT Auger Drive Belt If your snowthrower will not discharge snow, check the control cable adjustment. If it is correct, then check the condition of the auger drive belt. If it is damaged or loose, replace it (see Belt Replacement in this section of the manual). -
Page 29: Shear Pin Replacement
SHEAR PIN REPLACEMENT WARNING Do not go near the discharge chute or auger when the engine is running. Do not run the engine with any cover or guard removed. Under most circumstances, if the auger strikes an object which could cause damage to the unit, the shear pin will break. -
Page 30: Belt Replacement
SBrvic6 BELT REPLACEMENT Auger Drive Belt The drive belts are of special construction and must be replaced with original factory replacement belts available from your nearest authorized service center. Some steps require the assistance of a second person. If the auger drive belt is damaged, the snow thrower will not discharge snow. - Page 31 $Brvice Remove hair pin (A) and slide rod (B) backward 11. Lift the Chute and rotator (A, Figure 33) off of the about 3 inches (until shaft separates from the auger housing. worm drive). Figure 31. Rotator Shaft Removal A. Pin, Hair B.
- Page 32 SGrvic6 NOTE: To assemble the auger housing to the frame, Traction Drive Belt have someone hold the auger clutch lever in the If the snow thrower will not move forward, check the ENGAGED position. This will move the idler arm traction drive belt for wear or damage.
- Page 33 SBrvic6 ®0 Figure 35. Traction Belt Change A. Swing Plate B. Alignment Tabs <...
- Page 34 SBrvic6 NOTES...
-
Page 35: Specifications
NOTE: Specifications are correct at time of printing and are subject to change without notice. * Power Ratings The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). - Page 36 ©...
- Page 37 PARTS Replacement parts are available from your authorized Additional copies of this manual are available, as well dealer. Always use genuine Simplicity / Snapper as fully illustrated parts lists. These manuals show all Service Parts. of the product's components in exploded views (3D...
- Page 38 Bimplicilq MANUFACTURING, INC. 500 N Spring Street / PO Box 997 Port Washington, Wl 53074-0997 www.SimplicityMfg.com PRODUCTS 535 Macon Street McDonough, GA 30253 www.Snapper.com Briggs & Stratton Yard Power Products Group Copyright © 2007 Briggs & Stratton Corporation Milwaukee, Wl USA. All Rights Reserved...
