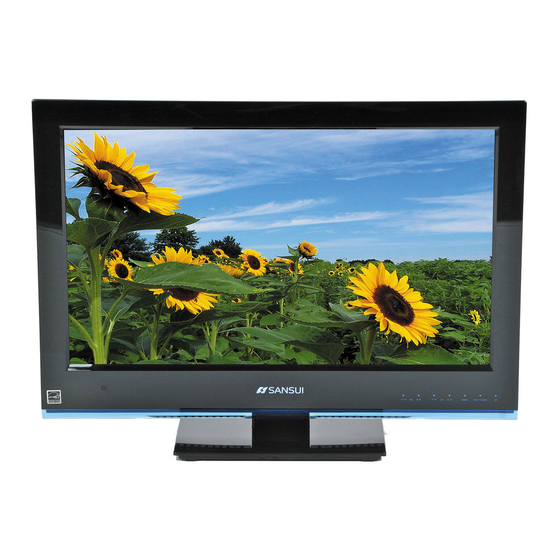

19" wide tft lcd television with digital tuner

Hide thumbs Also See for SLED1980:

Owner's manual (27 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Sansui SLED1980

Page 1 OWNER'S MANUAL IJSANSUI GUIDE D'UTILISATION 19" WIDE TFT LCD TELEVISION WITH DIGITAL TUNER TI_LI_VISEUR GRAND I_CRAN ACL TFT DE 19 pc AVEC SYNTONISEUR NUMI_RIQUE SLED1980 H ::I ll @o'rv" n7OOLBZ ......DIGITAL I HIGH-DEFINITION MULTIMEDIA INTERFACE ATTENTION If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code.
Page 2 I=I_ [_ lq(,.")-" lightning flash with arrowhead symbol, within an equilateral triangle CAUTION is intended to alert the user to the presence of uninsutated dangerous voltage within the product's enclosure that may be of sufficient magnitude constitute a risk of electric shock.
Page 3: Important Safety Instructions
iMPORTANT SAFETY iNSTRUCTiONS Read these instructions. Keep these instructions. Heed allwarnings. Follow all instructions. Do not use this apparatus near water. Clean onlywith dry cloth. Do not block any ventilation openings, hstall in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Page 4 IMPORTANT SAFETY INSTRUCTIONS When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 21 ) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
Page 5: Safety Precautions
IMPORTANT SAFETY INSTRUCTIONS CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired.
Page 6: How To Attach The Stand
How to attach the stand NOTE: • Unplug the AC cord from the AC INPUT terminal. • Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit. •...
Page 7: Features
Featu res • Integrated Digital Tuner -You can view digital broadcasts without using a Digital TV Set-Top Box. • Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.
Page 8: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ... 3 SAFETY PRECAUTIONS ......... How to attach the stand ........How to remove the stand ........Features ............Power source ............ Contents ............Parts and functions ........... Remote control ..........Antenna connections ........Cable TV connections ........
Page 9: Parts And Functions
Parts and functions Left side Front HDMI IN jack -- VIDEO IN jacks (VIDEO/S-VIDEO/ AUDIO (L/R)) Right side DIGITAL AUDIO COAXIAL OUT jack i ..>_-;-;-,' COMPONENT IN jacks (Y/Pb/Pr/AUDIO (L!R)) AC INPUT jack RF (ANT.) IN jack Remote sensor HEADPHONEj •...
Page 10: Remote Control
Remote control 5. MENU Button - Use to display the On-Screen menu function. 6.CURSOR A/T/,q/I_ Buttons - Used to operate the menu functions of the LCD TV. 7.ENTER Button - Use to enter or select information for On-Screen operations. 8. MUTE Button - To turn off the sound, press this button once.
Page 11: Antenna Connections
Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 12 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Connect the 75 ohm cable from the combination Antenna VHF/UHF antenna to the antenna jack.
Page 12: Cable Tv Connections
Cable TV connections This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box, Some cable companies offer "premium pay channels" where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device...
Page 13: Connections To Other Equipment
Connections to other equipment The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner's Manual provided with each component the location of video and audio inputs and outputs. To connect the LCD TV to a VCR Rear of the unit I '_%...
Page 14 Connections to other equipment (continued) Using an AV Amplifier with built-in digital surround If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie. Connect an AV amplifier with built-in Dolby Digital decoder, etc, as shown below.
Page 15 Connections to other equipment (continued) To connect a HDMI or a DVI device to the unit The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter...
Page 16: Starting Setup
TO SELECT ANALOG CHANNELS Starting setup 1-9: Press 1-9 as needed. Example, select channel 2, press 2, then press The Starting Setup menu appears the first time ENTER. you turn on the TV, and assists you to specify 10-99: Press the 2 digits in order. Example, Air/Cable setting, and program...
Page 17: Quick Guide For Menu Operation
Quick guide for menu DISPLAY Press DISPLAY to display the current information operation the screen. When the TV receives a digital signal, the digital Call menu and for example: Select Language. information will appear. Press INPUT SELECT to select TV mode. Press MENU.
Page 18: Convenience Functions
Convenience functions You can change the default settings by pressing Menu button on your remote, then select of the icons at the top of the menu - follow On-Screen prompts to set your preferences. Picture Picture Brightness/Contrast You can adjust the picture quatity to your preference.
Page 19: Memorizing Channels
Memorizing channels The TV will begin memorizing all the channels available in your area. • It may take from 15 minutes to 30 minutes to This TV is equipped with a channel memory complete memorizing digital cable channels. feature which allows channels to skip up or down Depending...
Page 20: Checking The Digital-Signal Strength
Clear All channels are deleted from the channel memory. Select"Channel", then press • or ENTER. Press • or • to select"Add/Delete", then press • or ENTER. Press • or • repeatedly until the character Press • or • to select"Clear AIF, then press •...
Page 21: Setting The V-Chip
Setting the V-Chip Genre: : All : Dialogue An age limitation can be set to restrict children from : Language viewing or hearing violent scenes or pictures that you : Sex may choose to exclude. The restriction applies to "TV :Violence Rating"...
Page 22: Closed Caption
Press • or • to select "V-Chip", then press • or Press • or • to set "CC Setting" to "On". • to select "On". On: Captions will be displayed on the screen. Off: Captions will not be displayed on the screen. Press •...
Page 23: Setting The Picture Size
Press • or • to select "CC Advanced", then press • or ENTER. The CC Advanced menu will appear. Press • or • to select the desired item, then press • or • to change the setting. Cinema Wide1 (for 4:3 format programs) To fill the screen, the right and left edges are...
Page 24: Reception Disturbances
Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance...
Page 25: Troubleshooting
Troubleshooting Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. _SYMPTOMS POSSIBLE SOLUTIONS •...
Page 26: Specifications
Specifications GENERAL AC 120V 60Hz Power supply: Power consumption: Operation: Stand by: 0.3W Weight: 3.0 kg (6.6 Ibs) Dimensions: Width: 476 mm (18-3/4 inches) Height: 346 mm (13-5/8 inches) Depth: 143 mm (5-5/8 inches) 5°C - 40% Operating temperature: Less than 80% Operating humidity: Type:...
