Owner's Manual

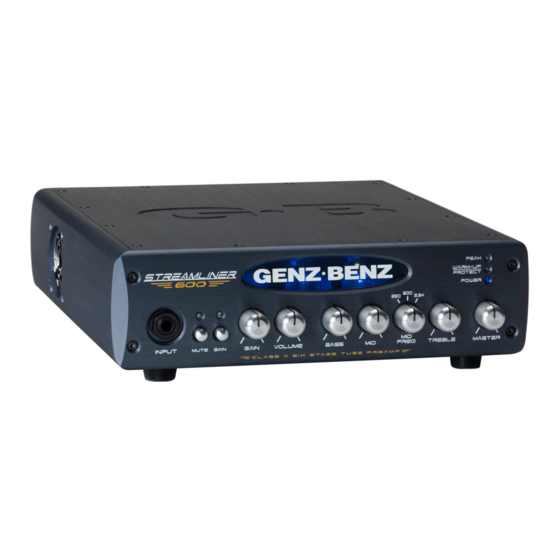

PRODUCT DESCRIPTION – The new Streamliner™ 600 bass amplifier has been manufactured to the highest
degree of engineering standards and practices, resulting in a unique blend of classic and leading-edge technologies.
This compact design blends a simple, intuitive and versatile high voltage, 3 tube, 6 stage classic style analog preamp
with an internationally proven high performance Class D power amplifier and switch-mode power supply (switchable
from 100-240 volts). The result is a versatile bass amp that exudes fat, rich tones while remaining very articulate.
The All Tube Class A preamp operates at over 300 volts and can be used to add a little warmth to your tone or dialed
up a little to provide a wide range of natural tube overdrive.
Our simple "streamlined" objective was to build an amp that allows the player to focus more on their playing style
and less on adjusting the knobs on their amplifier. So, whether you're a straight ahead 4 string player or an extended
range expressionist, your voice will come through.
The Streamliner™ 600 features a rugged chassis with solid extruded aluminum panels and a faceplate that is
CNC machined from solid billet aluminum. The entire chassis is then brushed and anodized Gun Metal Blue. The
chassis is designed for roadworthy durability, superior fit and finish.
Simply put, this 600 watt bass amplifier offers a more streamlined approach to finding your voice, yet still carries forth
the GENZ BENZ reputation for performance, reliability and innovation.
1
Advertisement
Related Manuals for Genz Benz STREAM LINER 600
Summary of Contents for Genz Benz STREAM LINER 600
- Page 1 Owner’s Manual PRODUCT DESCRIPTION – The new Streamliner™ 600 bass amplifier has been manufactured to the highest degree of engineering standards and practices, resulting in a unique blend of classic and leading-edge technologies. This compact design blends a simple, intuitive and versatile high voltage, 3 tube, 6 stage classic style analog preamp with an internationally proven high performance Class D power amplifier and switch-mode power supply (switchable from 100-240 volts).
-
Page 2: Front Panel
FRONT PANEL INPUT – The Streamliner™ 600 is equipped with a ¼” unbalanced instrument input directly feeding a conventional tube voltage amplifier stage. The input sensitivity range is from 15 mV to 1.6 volts with an input impedance of ~1M ohms. - Page 3 EQUALIZATION – The Streamliner™ 600 contains a 3 band equalizer with a user switchable midrange center frequency control. This equalizer is best described by breaking it into its component parts, the shelving bass/treble section and the midrange band-pass section. The Bass and Treble shelving filters are modified passive designs based on the classic Baxandall topology that was developed in the 1950’s by Peter Baxandall.
-
Page 4: Rear Panel
REAR PANEL DIRECT OUTPUT – An XLR balanced direct output is provided for connection to a PA system or directly into a recording studio console or D/A converter. This signal comes directly from the Tube buffered input stage to the Direct Output. - Page 5 POWER AMPLIFIER – The Streamliner™ 600 uses a state of the art, Class D power amplifier design and a high frequency switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. Switch-mode power supplies convert the AC line directly to high voltage DC, then the precision PWM (pulse width modulation) inverter creates a new AC power signal at a frequency more than 1000 times higher than the original wall frequency of 50/60Hz.
-
Page 6: Specifications
Specifications STM-600 Rated Power: 375 Watts @ 8 ohms 600 Watts @ 4 ohms Dimensions: 3 ¼” H x 10”W x 11 7/8”D Weight: 6 LBS SAFE OPERATING REQUIREMENTS: • Never set an amplifier on anything that will tip over or collapse under its weight. •... -
Page 7: Block Circuit Diagram
BLOCK CIRCUIT DIAGRAM The Instrument input feeds a conventional grounded cathode voltage amplifier which is then followed by a second grounded cathode voltage amplifier stage. The second voltage amplifier feeds a cathode follower pair that makes up the Baxandall inspired, tube based, Bass and Treble shelving equalization and active feedback type boost/cut midrange EQ network.
