OWNER'S MANUAL

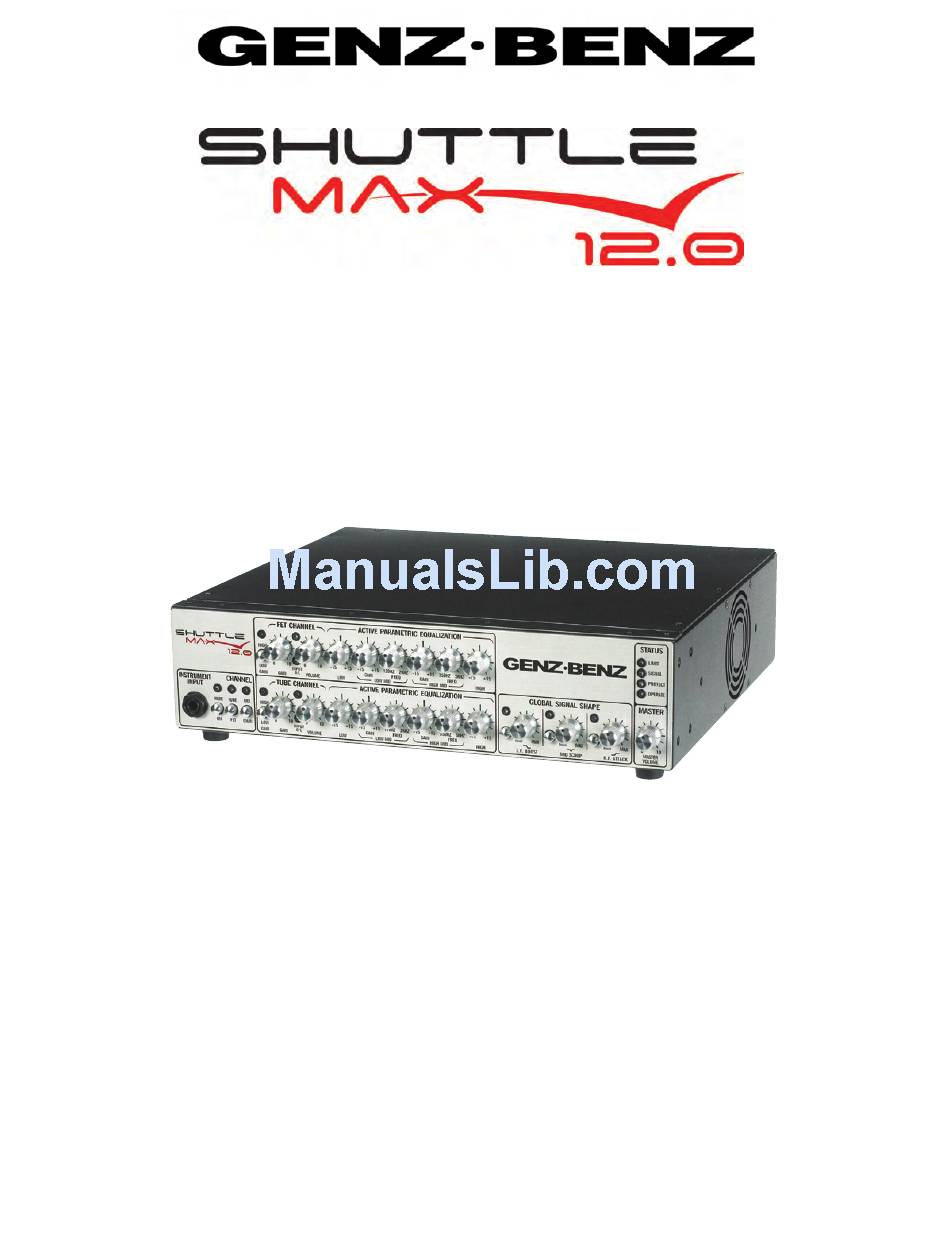

PRODUCT DESCRIPTION – The SHUTTLE MAX 12.0 bass amplifier has been designed with our unique ULTRA
LIGHT unified design process, yielding a 1200 watt (2 x 600 watt) professional high powered tour-class bass guitar
amplifier weighing only 6.75 lbs! This compact design blends the best of analog and digital platforms to produce the
ultimate in warmth, punch and power.
The SHUTTLE MAX 12.0 is equipped with a ¼" unbalanced INSTRUMENT INPUT, input stage clip detector, MUTE
switch with LED indicator, FET and 12AX7 TUBE preamps each with HIGH/LOW gain stage settings, each channel
offers 4 band ACTIVE equalization with 2 sweepable midrange bands, 3 switched SIGNAL SHAPE filters with level
adjustments, MASTER VOLUME, proprietary OUTPUT LIMITER, TUNER OUT, AUX INPUT, 3 EFFECTS LOOPS,
balanced DIRECT OUTPUT with GROUND LIFT, PRE or POST EQ and MIC/LINE switches, HEADPHONE OUT-
PUT, and 2 Neutrik NL-4 "Speakon"™ speaker jacks.
The power amp design is a powerful, lightweight Class D design and is supported by a state-of-the-art digital Switch
Mode Power Supply (SMPS), which does away with the weight of a traditional power transformer. The SHUTTLE
MAX 12.0 uses two 600 watt amplifier modules, both driving full output power into 4 ohms speaker loads—1200
watts total output. The power supply is usable from 100-240 volts, lending itself well to international touring players.


Advertisement

Table of Contents
loading

Related Manuals for Genz Benz STL-MAX-12-0

Summary of Contents for Genz Benz STL-MAX-12-0

  • Page 1 PUT, and 2 Neutrik NL-4 “Speakon”™ speaker jacks. The power amp design is a powerful, lightweight Class D design and is supported by a state-of-the-art digital Switch Mode Power Supply (SMPS), which does away with the weight of a traditional power transformer. The SHUTTLE MAX 12.0 uses two 600 watt amplifier modules, both driving full output power into 4 ohms speaker loads—1200...

  • Page 2: Front Panel

    INPUT SIGNAL MUTE SWITCH – With this MUTE switch, you can place the amplifier (and Direct Output) in standby mode between sets, without having to change any of your amp settings. This feature can also be used for silent tun- ing since the TUNER OUT stays active when the MUTE is engaged.

  • Page 3: Tube Channel

    PREAMP VOLUME CONTROL – This control sets the volume of the preamp after the INPUT and FET channel gain stages and before the EQ controls. Use this control in conjunction with the GAIN control and the MASTER VOLUME control for your overall output level. TUBE CHANNEL—...
  • Page 4 Driving hard beyond this point will cause the amplifier to gradually begin clipping. NOTE --- The PROTECT circuit senses both AMP A and AMP B power amp modules. It is possible that if one mod- ule goes into the PROTECT mode, the remaining power amp module will perform properly.

  • Page 5: Rear Panel

    GENERAL GUIDELINES FOR SETTING YOUR INPUT SIGNAL – There are a wide variety of variables that can impact your signal and tone in the design of all amplifiers. Below are some basic guidelines to consider when begin- ning to set your tone on the SHUTTLE MAX. •Begin a basic set up for the FET and TUBE channels with all EQ settings set at the 12 o’clock position.
  • Page 6 TUBE channel and the FET channel. An additional MASTER post EQ loop is provided for the summed (TUBE + FET) signal. This loop may also be used as a PREAMP OUTPUT or POWER AMP INPUT patch point.

  • Page 7: Rack Mounting

    100V to 240 volts, 50 to 60 Hz for worldwide use. Two voltage selector switches are provided, one for Amp A and Amp B. Simply set the voltage selector switches to the appropriate AC mains voltage (BEFORE connecting to the power source).

  • Page 8: Specifications

    • In addition, by use of this device, the user agrees to hold Genz Benz and it’s designers, sales agents and all other affiliates and related parties harmless in the event of any accident, injury, damage or loss resulting from such use.

  • Page 9: Declaration Of Conformity

    Manufacturer’s Name: Genz Benz, a division of KMC Music Corporation Manufacturer’s Address: 7811 East Pierce Street Scottsdale, AZ 85257, U.S.A. Product Type: Audio Amplifier Model Number: SHUTTLE MAX (all versions) Operating Power Condition: 100/115/230/240 V, 50/60 Hz Effective Date: 01-01-2009...
