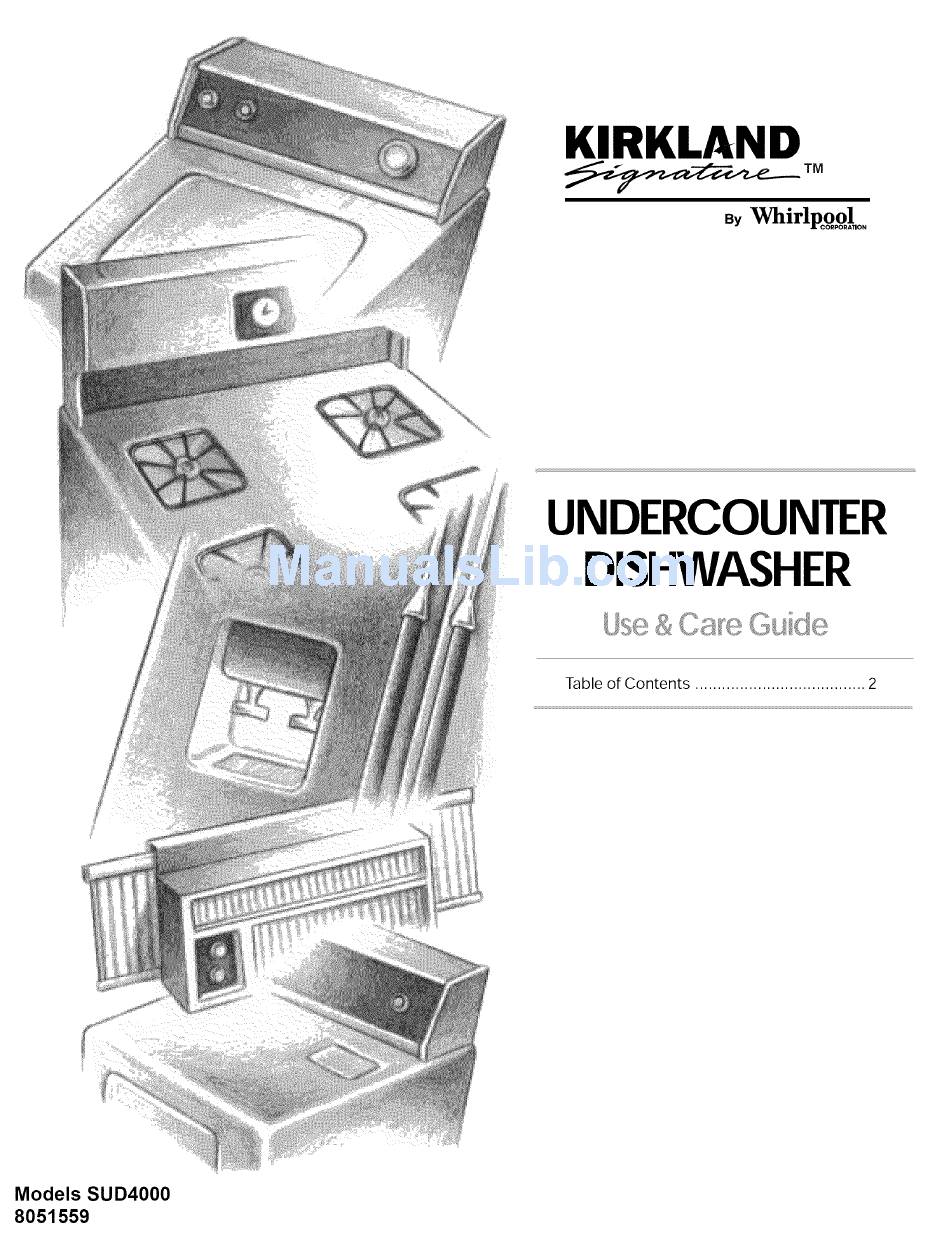

- Page 1 KIRKLAND By Whirlp&ol UNDERCOUNTER DISHWASHER Table of Contents ........Models SUD4000 8051559...
- Page 2 TABLE OF CONTENTS DISHWASHER SAFETY ........... Before Using Your Dishwasher ........4 PARTS AND FEATURES ..........START-UP GUIDE ............... Using Your New Dishwasher ........... 6 Stopping Your Dishwasher ..........LOADING YOUR DISHWASHER ........7 Loading Suggestions ............Loading the Top Rack ............. Loading the Bottom Rack ..........
- Page 3 DISHWASHER SAFETY Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word "DANGER"...
- Page 4 GROUNDING INSTRUCTIONS For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing path of least resistance for electric current. dishwasher is equipped with a cord having equipment-grounding conductor...
- Page 5 PARTSAND FEATURES NOTE: The features on your dishwasher may vary from the drawing shown. 1. Third level wash 8. Vent 2. Top rack 9. Spray tower and protector 10. Model and serial number label 3. Lower spray arm 11. Silverware basket 4.
- Page 6 5, Select the desired cycle. (See "Using Your START-UP GUIDE Dishwasher.") Before using your dishwasher, remove all hang tags, temporary labels, and packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips. b'i"...
- Page 7 LOADING YOUR ng the The top rack is designed for cups, glasses, and smaller DISHWASHER items. (See recommended loading patterns shown.) NOTE: The features on your dishwasher rack may vary from the drawings shown. Do not cover third level spray (on some models). See load ng arrow.
- Page 8 The bottom rack is designed for plates, pans, casseroles, and utensils. Items with cooked-on or dried-on food Load the silverware basket while it is in the bottom rack or should be loaded with soiled surfaces facing inward to the take the basket out for loading on a counter or table. spray.
- Page 9 USINGYOUR The amount of detergent to use depends on the DISHWASHER hardness of your water and the type of detergent. If you use too little, dishes won't be clean. If you use too much in soft water, glassware will etch. Water hardness can change over a period of time.
- Page 10 A rinse aid prevents water from forming droplets that can Hot water dissolves and activates the dishwashing dry as spots or streaks. It also improves drying by allowing detergent. Hot water also dissolves grease on dishes and water to drain off of the dishes during the final rinse by helps glasses dry spot-free.
- Page 11 C !o oe/ecto/,=0 0,,,,= ..Select the wash cycle. If the door is latched, you will hear You can cancel a cycle at any time. the cycles start and stop as the Cycle Control knob passes 1. Turn the Cycle Control knob slowly clockwise until you each cycle mark.
- Page 12 3. Close and latch the door. The Cycle Control knob will not advance if the door is unlatched. I: I NOTES: Select either Air Dry or Heat Dry for each wash cycle. You can change an option anytime before the selected option •...
- Page 13 DISHWASHER SAFE?/ WASHING SPECIAL COMMENTS MATERIAL ITEMS Pewter, Brass, Bronze High water temperatures and detergent can discolor or pit the finish. If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. Disposable DISHWASHER SAFE?/...
- Page 14 CARING FOR YOUR The filter system requires periodic cleaning as needed. DISHWASHER To clean screen 1, Unload the bottom rack. Slide the rack forward or remove the rack to reach the filter screen. 2, Remove collected particles from the screen with your fingers or a paper towel.
- Page 15 5. Remove the spring clamp from the water outlet and separate from the water supply valve; drain water into pan. Storing for the summer 6. Reconnect both water inlet and water outlet to the water supply valve. Protect your dishwasher during the summer months by turning off the water supply and power supply to the 7.
- Page 16 Dishes are not completely clean TROUBLESHOOTING Food soil left on the dishes Is the dishwasher loaded correctly? Refer to the First try the solutions suggested here and "Loading Your Dishwasher" section. possibly avoid the cost of a service call... Is the water temperature too low? If needed, turn home water heater up to ensure water entering dishwasher is Dishwasher is not operating properly...
- Page 17 Did you use the correct amount of effective detergent? Black or gray marks on dishes Use recommended dishwasher detergents only. Refer to Are aluminum items rubbing dishes during washing? the "Detergent Dispenser" section. Never use less than Disposable aluminum items can break down in the 1 tablespoon (15 g) per load.
- Page 18 To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Whirlpool with any questions or concerns at: Whirlpool Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept.
- Page 20 TWENTY YEAR FULL WARRANTY For twenty years from the date of installation, Whirlpool will pay for Factory Specified Parts and repair labor for the tub or inner door if either develops a water leak resulting from defective materials or workmanship.
