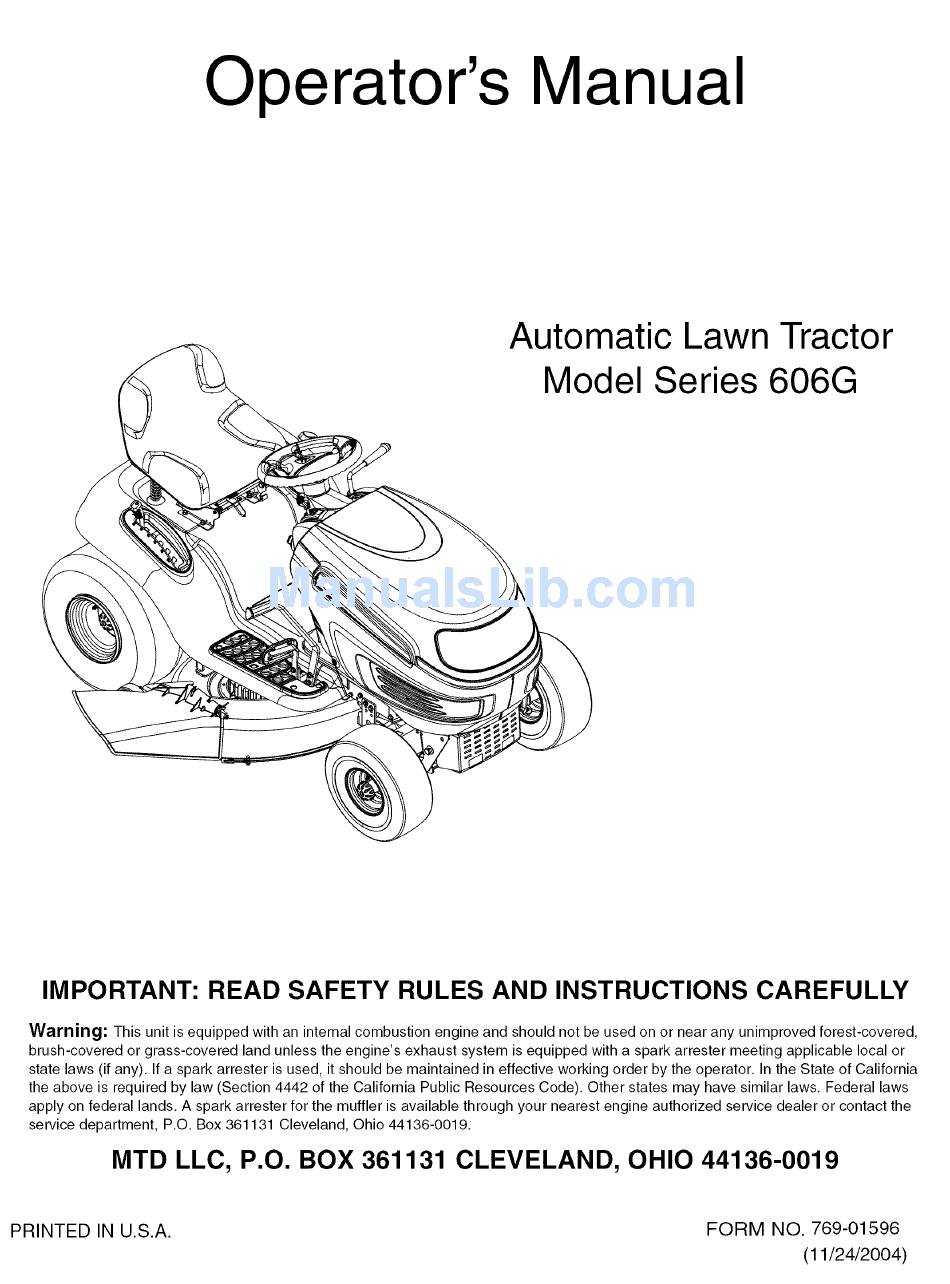

Operator's Manual
Operator's Manual
Automatic Lawn Tractor
Model Series 606G
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-covered,
brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or
state laws (if any), If a spark arrester is used, it should be maintained in effective working order by the operator, In the State of California
the above is required by law (Section 4442 of the California Public Resources Code), Other states may have similar laws, Federal laws
apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the
service department,
P,O, Box 361131 Cleveland, Ohio 44136-0019,
MTD LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 769-01596
(11/24/2004)
Advertisement
Table of Contents
Related Manuals for MTD 606G Series
Summary of Contents for MTD 606G Series
- Page 1 A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P,O, Box 361131 Cleveland, Ohio 44136-0019, MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORM NO. 769-01596 PRINTED IN U.S.A.
-
Page 2: Customer Support
TABLEOFCONTENTS Content Page Content Page Customer Support Maintaining Your Lawn Tractor Important SafeOperation P ractices Service Slope Gauge Off Season Storage Tractor S et-Up Attachments & Accessories Know YourLawn Tractor Troubleshooting Operating Y ourLawn Tractor Parts List Making Adjustments Warranty FINDINGMODELNUMBER This Operator's Manual is an important part of your new lawn tractor. -
Page 3: Section 1: Important Safeoperation P Ractices
SECTION 1: IMPORTANT SAFEOPERATION P RACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 4: Slope Operation
23. Muffler a ndengine become hotandcancause a Follow the manufacturer's recommendations burn. D onottouch. wheel weights or counterweights to improve 24. Check overhead c learances c arefully b efore driving stability. under lowhanging treebranches, wires, d oor Use extra care with grass catchers or other openings e tc.,where theoperator m aybestruck or attachments. -
Page 5: Safe Handling Of Gasoline
Gasoline is frame, your unit should be serviced professionally extremely flammable and the vapors are explosive. by an authorized MTD Service Dealer. Serious personal injury can occur when gasoline is Check brake operation frequently as it is subjected spilled on yourself or your clothes which can ignite. - Page 6 8. Never t amper w iththesafety interlock s ystem or Forsafety protection, frequently c heckcomponents othersafety devices. Check theirproper o peration andreplace immediately withoriginal e quipment regularly. manufacturer's (O.E.M.) parts only,listedinthis 9. Afterstriking a foreign object, s toptheengine, manual. "Useofpartswhich donotmeet t he disconnect thesparkplugwire(s) a ndground original e quipment specifications maylead to against theengine.
- Page 7 Sight and h01d this level with a vertical tree... >, _.,_ or a corner of a building... or a fence post ents a15 o >, >, 15° WARNING Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury.
-
Page 8: Section 3: Tractor Set-Up
SECTION 3: TRACTOR SET-UP Attaching theBatteryCables Service the engine with gasoline and oil as instructed in the separate Briggs & Stratton Operator/Owner Manual packed with your tractor. Read instructions carefully. NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg. (-). IMPORTANT: Your tractor is shipped with motor oil in the engine. -
Page 9: Section 4: Know Your Lawntractor
SECTION 4: KNOW YOUR LAWNTRACTOR - NOTE: Steering Wheel not shown for clarity, t If so equipped Figure 3 Systems Indicator Monitor/Hour Meter Cruise Control Button PTO (Blade Engage) Lever Ignition Switch Module ChokeKnobt Brake Pedal Parking Brake Button Drive Pedal Shift Lever Deck Lift Lever Cup Holder... -
Page 10: Throttlecontrol L Ever
ThrottleControl L ever IgnitionSwitchModule The throttle control lever is located on the right side of WARNING: Never leave a running machine the tractor's dash panel. This lever controls the speed unattended. Always disengage PTO, move of the engine and, on some models, when pushed all shift lever into neutral position, set parking the way forward, the choke control also. -
Page 11: Systems Indicator Monitor
Systems Indicator Monitor PTO(BladeEngage) Lever Your tractor is equipped with an hour meter as part of its systems indicator monitor. Locate the monitor on the left side of your dash panel and compare it to Figure 6. ENGAGE / BLADE Battery The PTO (Blade Engage) lever is located on the left side of the dashboard next to the steering wheel. -
Page 12: Cruisecontrol B Utton
ShiftLever NOTE: The parking brake must be set if the operator leaves the seat with the engine running or the engine The shift lever is located on the left side of the fender will automatically shut off. and has three positions, FORWARD, NEUTRAL and REVERSE. -
Page 13: Section 5: Operating Y Our Lawntractor
ON while should ever malfunction, do not operate the tractor. activated. See Figure 8. Contact an authorized MTD service dealer. Once activated (indicator light ON), the tractor can • The safety interlock system prevents the engine... -
Page 14: Settingthe Cutting Height
• Insert the tractor key into the ignition switch. • Place the PTO (Blade Engage) lever in the WARNING disengaged (OFF) position. • Engage the tractor's parking brake. AVOID SERIOUS INJURY ORDEATH • Activate the choke control. • Turn the ignition key clockwise to the START •... -
Page 15: Driving On Slopes
IMPORTANT: Do NOT use the shift lever to change the • Once engaged, the cruise control button and the direction of travel when the tractor is in motion. Always drive pedal will lock in the "down" position, and the use the brake pedal to bring the tractor to a complete tractor will maintain the same forward speed. - Page 16 Mowing • Never attempt to mulch if the lawn is damp. Wet grass tends to stick to the underside of the cutting deck preventing proper mulching of the clippings. WARNING: To help avoid blade contact or • Do NOT attempt to mulch more than 1/3 the total a thrown object injury,...
-
Page 17: Section 6: Making Adjustments
SECTION 6: MAKING ADJUSTMENTS • Retighten the two jam nuts loosened earlier when proper adjustment is achieved. adjustments while engine is running, WARNING: Never attempt to make any except where specified in the operator's Sideto Side manual. If the cutting deck appears to be mowing unevenly, a side to side adjustment can be performed. -
Page 18: Steering Adjustment
If the tractor does not come to a complete stop when Steering Adjustment the brake pedal is completely depressed, or if the If the tractor turns tighter in one direction than the other, tractor's rear wheels can roll with the parking brake or if the ball joints are being replaced due to damage or applied, the brake is in need of adjustment. -
Page 19: Section 7: Maintaining Your Lawntractor
SECTION 7: MAINTAINING YOUR LAWNTRACTOR • Refill the engine with new motor oil. WARNING: Before performing maintenance or repairs, disengage PTO, IMPORTANT:Refer to the Briggs & Stratton Operator/ move shift lever into neutral position, Owner Manual packed with your unit for information parking brake, stop engine and remove key to regarding the quantity and proper weight of motor oil. - Page 20 DeckWash System Your tractor's deck is equipped with a water port on its surface as part of its deck wash system. Use the Deck Wash System to rinse grass clippings from the deck's underside and prevent the buildup of corrosive chemicals. Complete the following steps AFTER EACH MOWING: Drive the tractor to a level, clear spot on your lawn, near enough to a water sillcock (spigot) for your...
-
Page 21: Cutting Deckremoval
SECTION 8: SERVICE Cutting DeckRemoval • Approximately 10 psi for the rear tires • Approximately 14 psi for the front tires To remove the cutting deck, proceed as follows: IMPORTANT:Refer to the tire sidewall for exact tire • Place the PTO (Blade Engage) lever in the manufacturer's recommended or maximum psi. -
Page 22: Cutting Blades
Connect the other jumper cable to the negative terminal of the good battery, then to the frame of Hex Flange Nut the unit with the dead battery. WARNING: Failure to use this procedure could cause sparking, and the gas in either battery could explode. -
Page 23: Changi Ngthedeckbelt
Fuses • Lower the deck by moving the deck lift lever into the bottom notch on the right fender. Two fuses are installed in your tractor's wiring harness • Remove the belt guards by removing the self- to protect the tractor's electrical system from damage tapping screws that fasten them to the deck. -
Page 24: Changing Thetransmission D Rivebelts
See an authorized Service Dealer to have your drive belts replaced or phone Customer Support as instructed on page 2 for information on ordering an MTD Service Manual SECTION 9: OFF-SEASON S TORAGE Clean and lubricate the tractor as instructed in Sectien7: Follow the instructions in the Service, Storage &... -
Page 25: Section 10: Attachments & Accessories
SECTION 10: ATTACHMENTS & ACCESSORIES The following attachments and accessories are compatible for Model Series 606G Lawn Tractors. See the retailer from which you purchased your tractor, an authorized MTD Service Dealer or phone (800) 800-7310 for information regarding price and availability. -
Page 26: Section 11: Troubleshooting
SECTION 11: TROUBLESHOOTING Corrective Action Trouble Possible Cause(s) Engine fails to start PTO engaged. Place PTO lever in disengaged (OFF) position. Parking brake not engaged. Engage parking brake. Spark plug wire(s) disconnected. Connect wire(s) to spark plug(s). Throttle control lever not in correct Place throttle lever to FAST position. -
Page 27: Section 12: Parts List
SECTION 12: PARTS LIST _"__4 PART REF. PART DESCRIPTION DESCRIPTION 710-0227 AB Screw #8-18 x 0.5 732-0966 Extension Spring 710-0599 TT Screw 1/4-20 x 0.5 737-0169 SAE 30W Oil 710-0726 AB Screw 5/16-12 x 0.5 751B213146 Throttle Clamp 710-1237 T screw #10-32 x 0.625 751-0535 Fuel Line Hose 710-1314A... - Page 28 ModelSeries606G ..J"...
- Page 29 Models606G REF. PART DESCRIPTION 710-04095 Hex Screw, 3/8-16, 1.00, Gr5 710-0514 Hex Screw, 3/8-16, 1.00, Gr5 710-0643 Hex Screw, 5/16-18, 1.00, Gr5 711-1408 Link, Drag, RH 711-1409A Link, Drag, LH 712-0214 Nut, Hex Lock, 3/8-24 712-04065 Nut, Flange Lock, 3/8-16, Grf, Nylon 712-0459 Nut, Flange Lock, 7/16-20 712-3004A...
- Page 30 ModelSeries606G ...° -_ •...
- Page 31 ModelSeries606G PART PART DESCRIPTION DESCRIPTION 683-0305 731-04214 Cruise Control Lever Bracket Assembly, Hood 710-0376 731-05002 Hex Screw, 5/16-18, 1.00, Gr5 Dash Panel (Models w/Manual PTO) 710-0599 731-1857 Control Knob Screw, 1/4-20, 0.500 710-0642 736-0142 Screw, 1/4-20, 0.750 Washer, Flat,.281 x.50 x.063 710-0895 747-1155 Screw, 1/4-15, 0.750...
- Page 32 ModelSeries606G Left HandTransmission Bolt Mounting...
- Page 33 ModelSeries606G REF. PART REF. PART DESCRIPTION DESCRIPTION 17840 711-04159B Mounting Bracket, Transaxle Pin, 3/8-16 x 2.68 725-04039 712-3004A Switch, Interlock Nut, Flange Lock, 5/16-18, Gr5 17962 732-0335 Plate, Switch Spring, Compression,.405 x 1.17 647-04020 732-0955 Lever Assembly, Shift Spring, Extension,.50 OD x 1.41 710-0607 732-0963...
- Page 34 ModelSeries606G (4_ ..... IMPORTANT: For a proper working machine, use Factory Approved Parts. V-belts are designed to engage and disengage safely. A substitute (non OEM) V-belt can be dangerous by not disengaging completely.
- Page 35 ModelSeries606G PART REF. PART DESCRIPTION DESCRIPTION 17962 783-0744A Plate, Switch Stop Bracket, Engagement 647-04036 683-04173 Lever Assembly, Engagement Frame Assembly, Lower 710-0809 710-0607 Screw, 1/4-20 x 1.250 Screw, 5/16-18, 0.500 710-0859 710-0642 Screw, 3/8-16, 2.50 Screw, 1/4-20, 0.750 710-0276 710-3005 Screw, Carriage, 5/16-18, 1.00 Screw, 3/8-16, 1.25, Gr5 710-1260A...
- Page 36 ModelSeries606G...
- Page 37 ModelSeries606G PART DESCRIPTION 710-1268 Screw, #10-16 x.375 712-04063 Nut, Flange Lock, 5/16-18, GrF, Nylon 712-3027 Nut, Flange Lock, 1/4-20 720-0309A Seat Adjuster Grip 726-0201 Nut, Speed,.3125 ID 731-04074 Spacer 732-0499 Compression Spring,.41 x 1.5 732-1184 Spring, Extension,.84 Dia. x 4.6 736-0275 Wash, Flat,.344 x.688 x.065 736-3019...
- Page 38 ModelSeries606G...
- Page 39 ModelSeries606G REF. PART DESCRIPTION 732-0614 Ring, Wire 716-0231 Ring, E Type,.750 736-0336* Flat Washer, 5/8 x 1.0 x.030 736-0337* Flat Washer, 5/8 x 1.0 x.040 736-0349* Flat Washer, 5/8 x 1.0 x.020 736-0335 Washer, Thrust.635 x 1.26 x.06 710-1325 Self-tapping Screw, 1/4-20 x 1.625 719-04017 Upper Housing 711-1109...
- Page 40 ModelSeries606G \\\\\\\ \\\\\\ \\\\...
- Page 41 ModelSeries606G REF. PART PART DESCRIPTION DESCRIPTION 618-0624 736-0270 Pulley/Spindle Assembly Bell Washer,.265 x.75 x.062 683-04138 736-0289 Deck Brake Assembly Shoulder Bushing,.320 ID x.135 Lg. 683-04162 736-0267 42" Deck Assembly Flat Washer,.385 x.87 x.06 683-04167 736-0760 Lock Washer Deck Brake Assembly 683-0254B 750-04446 Deck Hanger Bracket Assembly...
- Page 42 NOTES...
- Page 43 NOTES...
- Page 44 MANUFACTURER'S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC with MTD does not extend any warranty for products sold or respect to new merchandise purchased and used in the exported outside of the United States, its possessions United States, its possessions and territories.
