Page 1: Ovenlight Doesnot Operate

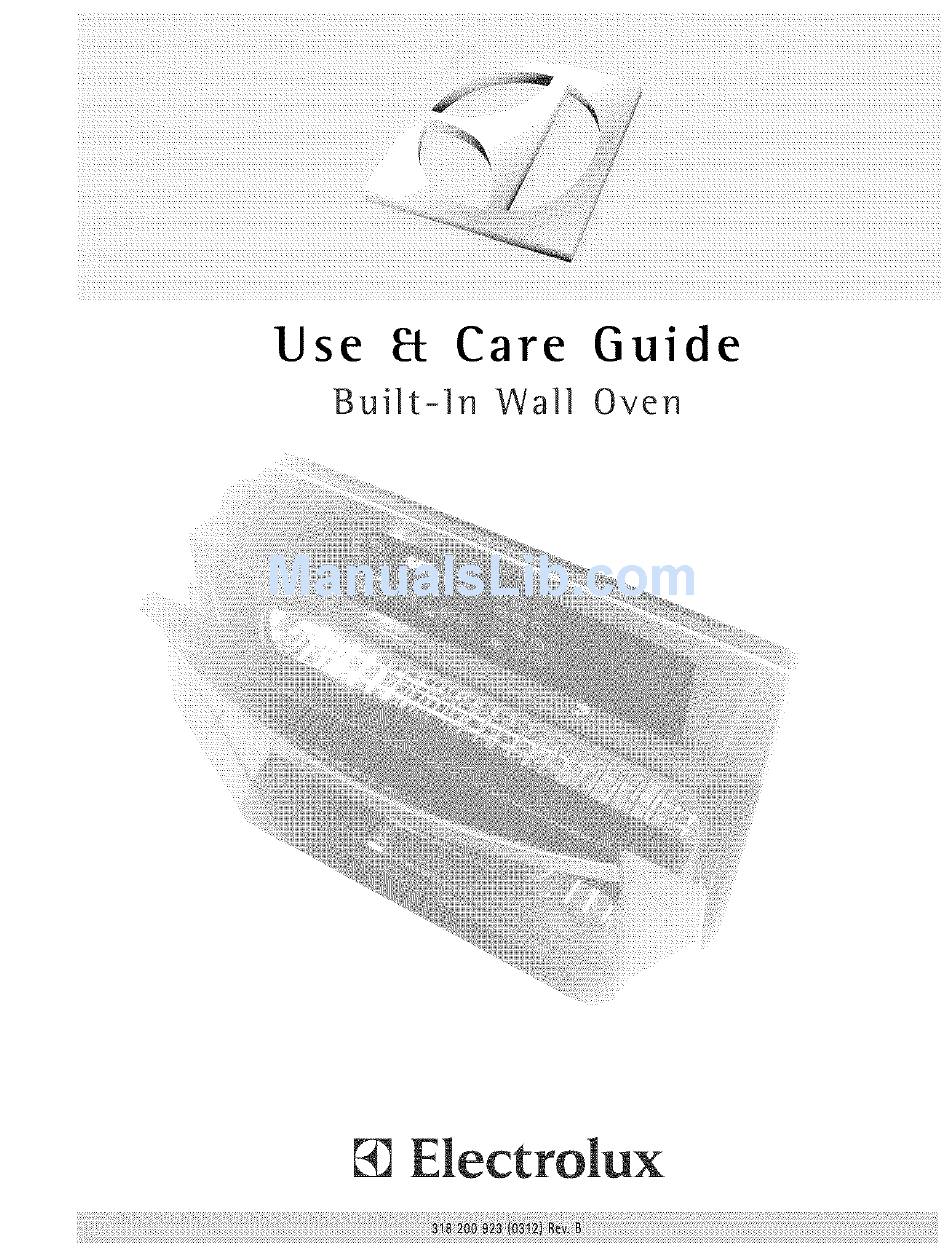

_ Care Guide Wall Built-In Oven i_ Electrolux... -
Page 2: Findinginformation
QUESTIONS? For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287) For online support and internet product information: www.electrolux.com ©2003 Electrolux Home Products, Inc. Post Office Box 212378, Augusta, Georgia 30917, USA All rights reserved. Printed in the USA... -
Page 3: Table Of Contents
Finding Information TABLE OFCONTENTS FindingInformation ..........2 Care & Cleaning..........24 Makea Recordfor Future use ......2 Cleaningthe Self-Cleaning Oven ....24 Questions?............2 StartingSelf-Cleaning Cycle ......2 5 ToStart DelayedSelf-Cleaning Cycle....26 Safety ..............GeneralCleaning........... 27 ImportantSafetyInstructions......4 Careand Cleaningof StainlessSteel ....28 To Removeand ReplaceOvenDoor .....28 FeatureOverview .......... -
Page 4: Safety
Safety iMPORTANT S AFETY iNSTRUCTiONS Please read all safety instructions before using your new Electrolux wall oven. • Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material. - Page 6 Safety iMPORTANT S AFETY iNSTRUCTiONS • Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease could ignite. • Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break.
-
Page 7: Featureoverview
Feature Overview YOURWALLOVEN CONVECTIONFAN CONTROLPANEL DOOR LATCH BROILINGELEMENT RACKSLIDERS RACK SUPPORT RACKS OVEN LIGHT BAKINGELEMENT GLASS OVEN DOOR DOOR HANDLE BROILERPAN BROILERPANCOVER... -
Page 8: Gettingstarted
Getting Started BEFORE SETTING OVENCONTROLS ArrangingOven RacksALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). To bake on a single rack, place the rack in position 3. To bake on 2 racks, place the racks in position 2 and 4. To bake on racks, place the racks in position 1,3 and 5. -
Page 9: Controlpadsfunctions
@r_!_} iLii_iI_i ¸ _i!l;_i_%ii_ i _!ii!is!ul ii;_}ii i@i;iii!_i iii,iiii_ ! !; Roast Bake Convection Pad- Bake Pad- Used 1o Broil Pad- Used 0 Thru 9 number Convection Used to select the eater the eorma_ 1o selecl lhe pads- Used to Pad_ Used to convection baking mode. -
Page 10: Settingoven Controls
Setting Oven Controls SETTING THECLOCK The _ or _ pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation. The clock has been preset at the factory for the 12 hour operation. When the range is first plugged in, or when the power supply to the range has been interrupted, the timer in the display wilt flash with "PF"... -
Page 11: Settingcontinuousbake Or 12 Hours Energysaving
Setting Oven Controls SETTINGCONTINUOUS BAKEOR 12 HOUR ENERGYSAVING The _ or _ and (_ or _} pads centre! the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes. -
Page 12: Settingoven Lockoutfeature
Setting Oven Controls SETTING OVENLOCKOUT FEATURE The _ or _J pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and prevents the Warmer Drawer from being turned on. It does not disable the clock, Timer, electric and gas surface burners, Warmer Zone or the interior oven lights. -
Page 13: Settingsilentcontroloperation
The_(_ or "'*L._ andO or _%_ padscontro_ theSilent C ontrol o peration f eature. The Silent C ontrol operation f eature allows theovencontrol tobeoperated w ithout s ounds or beeps whenever necessary. If desired thecontrol canbeprogrammed forsilent o peration andlater returned to operating with all the normal sounds and beeps. -
Page 14: Cooking Instructions
Cooking Instructions PREHEATING or [_!_ pad controls the Preheat feature. The Preheat feature will bring the oven The _ up to temperature and then indicate when to place the food in the oven. Use this feature in combination with the Bake pad when recipes call for preheating. Preheating is not necessary when roasting or cooking casseroles. -
Page 15: Baking
Cooking Instructions BAKING The _ or {_ pad controls normal baking. If preheating is necessary, refer to the Preheat Feature for instructions. The oven can be programmed to bake at any temperature from 170 ° F to 550 ° F (The sample shown below is for 350°F). To set the Bake Temperature to 350°F: Arrange interior oven racks and place food in oven. -
Page 16: Bakingproblems
Cooking Instructions BakingProblems For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc... There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. -
Page 17: Convectionbaking
Cooking Instructions CONVECTION B AKING The convection oven uses a fan located in the rear wall of the oven to circulate heated air around the food to be cooked. The controlled air flow pattern quickly seals the food surface --Some food s cook UP to 30% faster, Saving time an d retaining the natural juices and fiavcor, This method of energy. - Page 18 Cooking Instructions To set the ovenfor Convection Bake and temperatureto 350°F: Arrange interior oven racks and place food in oven. Press "_- or (_. "- - -°" wilt appear in the display (Figure 1). Figure 1 "350 °" will appear in the display (Figure 2). Press Q, Press _ or _.
-
Page 19: Settingtimed Bakeor Timedconvectionbake
Cooking Instructions SETTING TIMEDBAKEORTIMEDCONVEC_ON BAKE The ®/or@> or ®7and @(or @7 pads cootro, the T ,med Beke feature. The automatic t(mer of the Timed Bake feature will turn the oven OFF after cooking for the desired amount of time you selected. To program the oven to begin baking immediatelyand to shut off automatically:(examplebelowto BAKEat 350OF for 30 minutes): Be sure the clock is set for the correct time of day. -
Page 20: Delayedtimed Convectionbake
Cooking Instructions SETTING DELAYED TIMEDBAKEOF{ DELAYED TIMED CONVECTION B AKE The (_)(or or _ (or_),_ (or G) and (_ (or O) pads control the Delayed Time Bake feature. The automatic timer of the Delayed Time Bake will turn the oven on and off at the time you select in advance. NOTE: If your clock is set for normal 12 hour display mode the Delayed Time Bake feature can never be set to start more than 12 hours in advance. -
Page 21: Broiling
ii!ii_i_!il !!ii_iiiii_il ' ii_iii!ii!ii!!i_i_iii_i_:ii!i Cooking Instructions :iiiiii!i! iiii iiii !i:ii!i_!_iii_ii_i,i!i_ii_ BROILING i!i ii iiilii!i! Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. Preheating Preheating is suggested when searing rare steaks. (Remove the broiler pan before preheating. - Page 22 Cooking Instructions SettingBroil The _ or (_) pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set between 400°F and 550°F. The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the oven broiler.
-
Page 23: Convectionroasting
CONVECTION B OASTING When convection roasting, use the broiler pan and grid, and the roasting rack. The broiler pan wilt catch grease spills and the grid will help prevent spatters. The roasting rack wilt hold the meat. Roasting Rack To prevent food from contacting the broil element and to prevent grease spattering, DO NOT use the roasting rack when broiling. -
Page 24: Care & Cleaning
Care & Cleaning CLEANING THESELF-CLEANiNG O VEN Adhere totheFollowing Cleaning Precautions: • Allow the oven to cool before cleaning. • Wear rubber gloves when cteaning any exterior parts of the oven manually. Do Hand During the self-cleaning cycle, the outside of the watt oven can Clean Do NOT become very hot to the touch. -
Page 25: Startingself-Cleaning Cycle
Care & Cleaning STARTING SELF-CLEAN CYCLE or _ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self-clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour. So to self-clean for 3 hours wilt actually take about 4 hours to complete. -
Page 26: Tostart Delayedself-Cleaning Cycle
Care & Cleaning TOSTARTTHEDELAYED SELF-CLEAN CYCLE mmmmmmmmmmmmmmmmmmmmmm pads and length of clean cycle, controls the Delayed Self- The _ or _ and _ or I_ Clean operation. The automatic timer will turn the oven on and off at the time you select in advance. -
Page 27: Generalcleaning
Care & Cleaning GENERAL CLEANING CleaningVarious Partsof Yourappliance Before c}eaning any part of the appliance, be sure a)) controls are turned OFF and the appliance is COOL. REMOVE SPILLOVERS HEAVY SOIL[NG AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAJOR CLEANINGS LATER... -
Page 28: Careand Cleaningof Stainlesssteel
Care & Cleaning CAREANDCLEANING OFSTAINLESS STEEL Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section in this Use & Care Manual. TOREMOVE ANDREPLACE OVENDOOR Open the door to the fully opened position. -
Page 29: Ovenlight
Care & Cleaning OVENLIGHT An interior oven light will turn automatically when the oven door is opened, The oven light may be turned on when the door is closed by using the oven light switch located on the control panel. The {amp is covered with a glass shield. -
Page 30: Solutionsto Commonproblems
Solutions to Common Problems OVENCONTROL BEEPSANDDISPLAYS F1THROUGH F10 • Electronic control has detected a fault condition. Push CANCEL pad to clear the display and stop the display from beeping. Reprogram the oven. If a fault reoccurs, record the fault number, push the CANCEL pad and contact an authorized servicer. -FS-iSDISPLAYED •... -
Page 31: Self-Cleancycledoes Notwork
Solutions to Common Problems • Controls are not set properly. See instructions to set the controls. • House fuse has blown or circuit breaker h,3s tdpped immediately re(lowing inst,311ation. • House fuse may not be fully engaged. Check fuse and screw or engage circuit breaker securely. -
Page 32: Soil Notcompletelyremovedafter Self-Cleaning Cycle Is Completed
Solutions to Common Problems SOiLNOTCOMPLETELY R EMOVED AFTER SELF- CLEANING CYCLEiSCOMPLETED Failure to clean bottom, from top of oven, frame of oven or door area outside oven seat. These areas are not in the self-cleaning area, but get not enough to burn on residue. -
Page 34: Notes
Notes... -
Page 36: Warrantyinformation
Inc. We authedze no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authedzed Electrolux Home Products North America servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.
