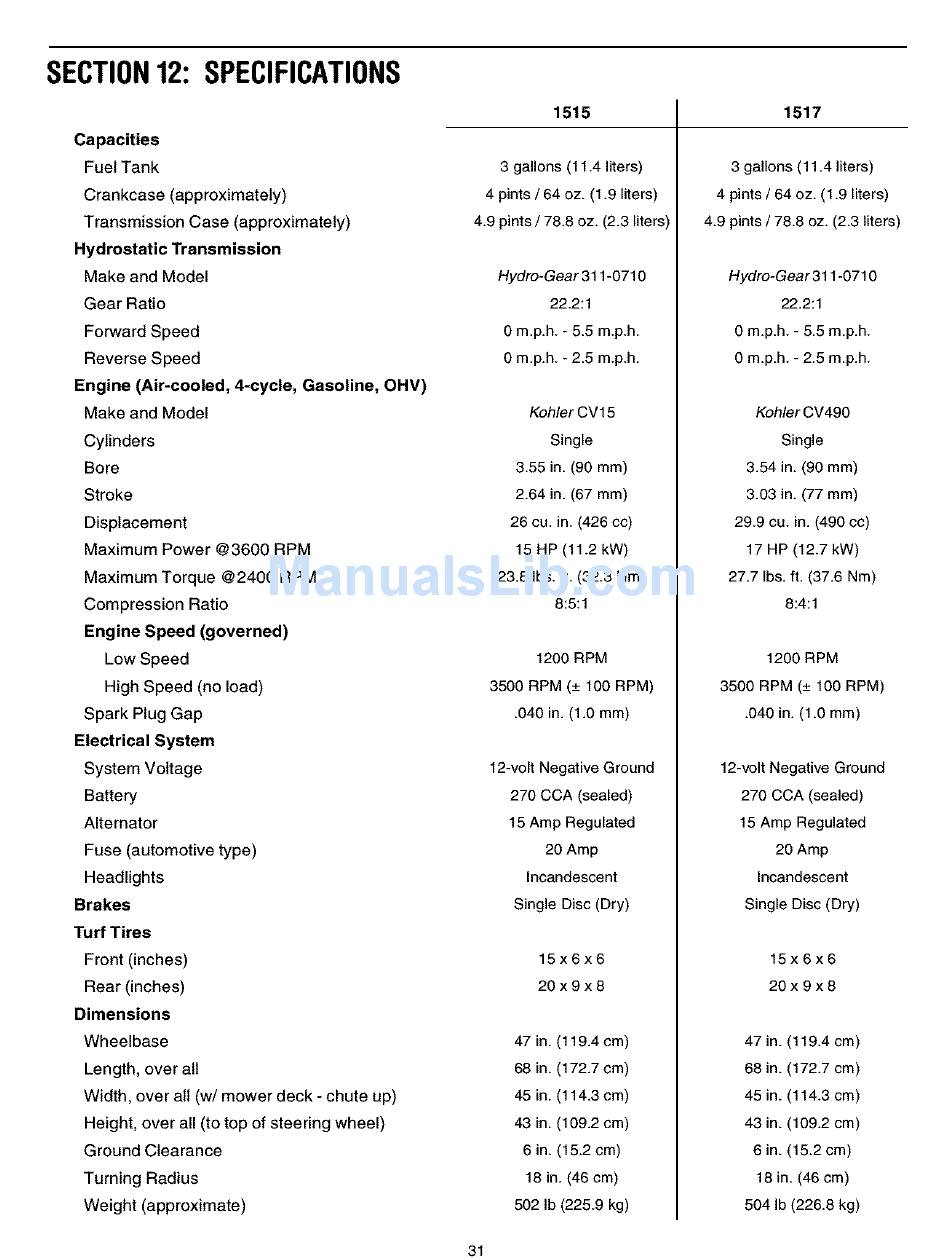

SECTION 12: SPECIFICATIONS
Capacities
Fuel Tank
Crankcase (approximately)
Transmission Case (approximately)
Hydrostatic Transmission
Make and Model
Gear Ratio
Forward Speed
Reverse Speed
Engine (Air-cooled, 4-cycle, Gasoline, OHV)
Make and Model
Cylinders
Bore
Stroke
Displacement
Maximum Power @3600 RPM
Maximum Torque @2400 RPM
Compression Ratio
Engine Speed (governed)
Low Speed
High Speed (no load)
Spark Plug Gap
Electrical System
System Voltage
Battery
Alternator
Fuse (automotive type)
Headlights
Brakes
Turf Tires
Front (inches)
Rear (inches)
Dimensions
Wheelbase
Length, over all
Width, over all (w/mower deck - chute up)
Height, over all (to top of steering wheel)
Ground Clearance
Turning Radius
Weight (approximate)
1515
3 gallons (11.4 liters)
4 pints / 64 oz. (1.9 liters)
4.9 pints / 78.8 oz. (2.3 liters)
Hydro-Gear 311-0710
22.2:1
0 m.p.h. - 5.5 m.p.h.
0 m.p.h. - 2.5 m.p.h.
Kohler CV 15
Single
3.55 in. (90 mm)
2.64 in. (67 mm)
26 cu. in. (426 cc)
15 HP (11.2 kW)
23.8 Ibs. ft. (32.3 Nm)
8:5:1
1200 RPM
3500 RPM (_+100 RPM)
.040 in. (1.0 mm)
12-volt Negative Ground
270 CCA (sealed)
15 Amp Regulated
20 Amp
Incandescent
Single Disc (Dry)
15x6x6
20x9x8
47 in. (119.4 cm)
68 in. (172.7 cm)
45 in. (114.3 cm)
43 in. (109.2 cm)
6 in. (15.2 cm)
18 in. (46 cm)
502 Ib (225.9 kg)
31
1517
3 gallons (11.4 liters)
4 pints / 64 oz. (1.9 liters)
4.9 pints / 78.8 oz. (2.3 liters)
Hydro-Gear311-0710
22.2:1
0 m.p.h. - 5.5 m.p.h.
0 m.p.h. - 2.5 m.p.h.
Kohler CV490
Single
3.54 in. (90 mm)
3.03 in. (77 mm)
29.9 cu. in. (490 cc)
17 HP (12.7 kW)
27.7 Ibs. ft. (37.6 Nm)
8:4:1
1200 RPM
3500 RPM (_+100 RPM)
.040 in. (1.0 mm)
12-volt Negative Ground
270 CCA (sealed)
15 Amp Regulated
20 Amp
Incandescent
Single Disc (Dry)
15x6x6
20x9x8
47 in. (119.4 cm)
68 in. (172.7 cm)
45 in. (114.3 cm)
43 in. (109.2 cm)
6 in. (15.2 cm)
18 in. (46 cm)
504 Ib (226.8 kg)
