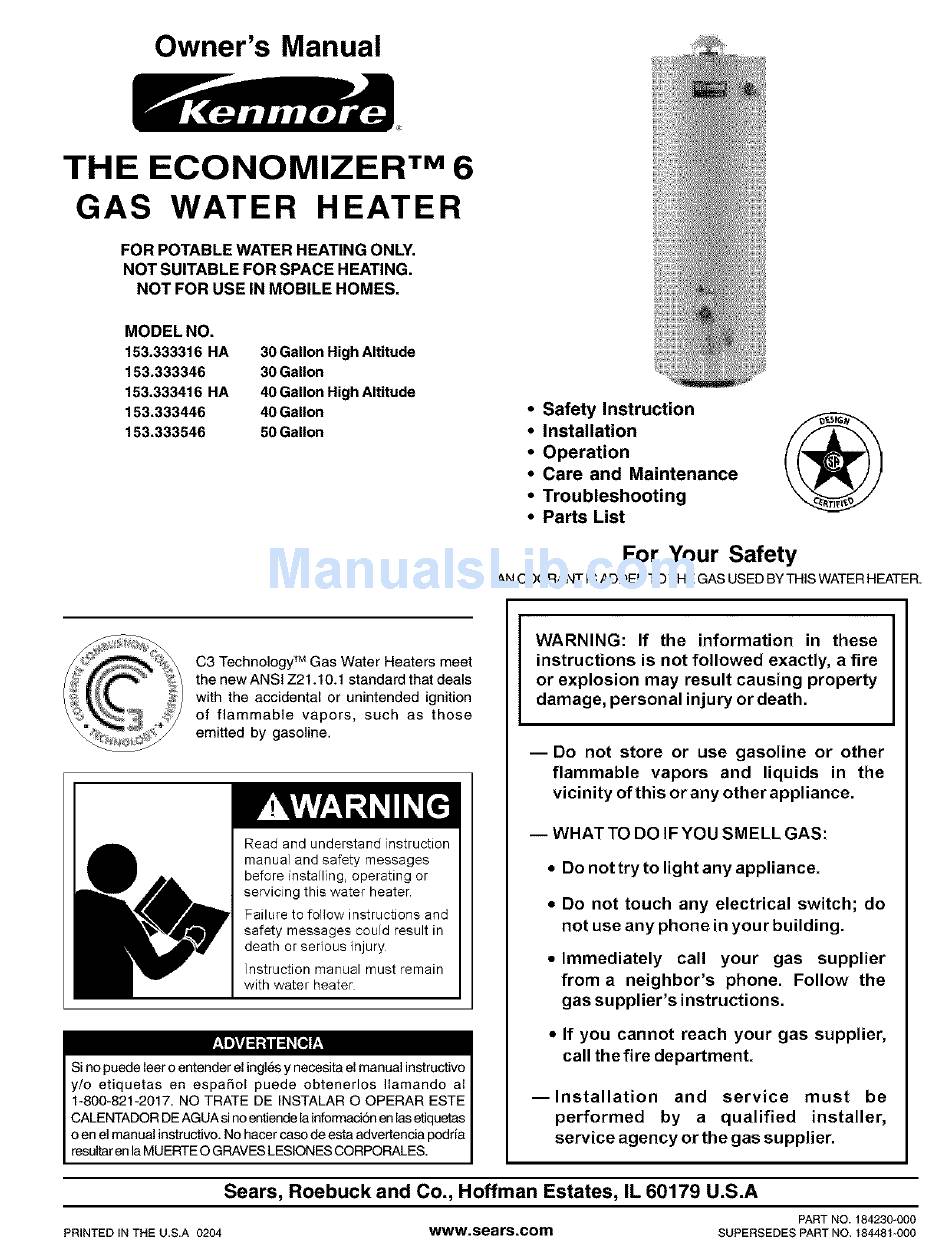

Owner's Manual
THE ECONOMIZER
TM6
GAS
WATER
HEATER
FOR POTABLE WATER HEATING ONLY.
NOT SUITABLE FOR SPACE HEATING.
NOT FOR USE IN MOBILE HOMES.
MODELNO.
153.333316
HA
153.333346
153.333416
HA
153.333446
153.333546
30 Gallon High Altitude
30 Gallon
40 Gallon High Altitude
40 Gallon
50 Gallon
• Safety Instruction
• Installation
• Operation
• Care and Maintenance
• Troubleshooting
• Parts List
For Your Safety
AN ODORANT IS ADDED TO THE GAS USED BY THIS WATER HEATER.
C3 Technology
TM
Gas Water Heaters meet
the new ANSI Z21.10.1 standard that deals
with the accidental or unintended
ignition
of flammable
vapors,
such
as those
emitted by gasoline.
Read and understand instruction
manual and safety messages
before installing, operating or
servicing this water heater
Failure to follow instructions and
safety messages could result in
death or serious injury
Instruction manual must remain
with water heater
r,Jm_vl =1 - ']1 I I=1 _, [_]_2!
Si no puede leer o entender el ingles y necesita el manual instructive
y/o
etiquetas
en espaRol
puede
obtenerlos
Ilamando
al
t-800-821-2017.
NO TRATE
DE INSTALAR
O OPERAR
ESTE
CALENTADOR DE AGUA si no entiende la informaci6n en las etiquetas
oen el manual instructivo. No hacer caeo de esta advertencia podrla
resultar en la MUERTE O GRAVES LESIONES CORPORALES.
WARNING:
If the
information
in these
instructions
is not followed
exactly,
a fire
or explosion
may result
causing
property
damage, personal
injury or death.
--Do
not store
or use gasoline
or other
flammable
vapors
and
liquids
in the
vicinity of this orany other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical
switch; do
not use any phone in you r building.
• Immediately
call
your
gas
supplier
from a neighbor's
phone.
Follow
the
gas supplier's
instructions.
• If you cannot
reach
your
gas supplier,
call the fire department.
--Installation
and
service
must
be
performed
by
a qualified
installer,
service agency or the gas supplier.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A
PART NO. 184230*000
PRINTED
IN THE U.S.A
0204
www.sears.com
SUPERSEDES
PART NO. 184481-000
