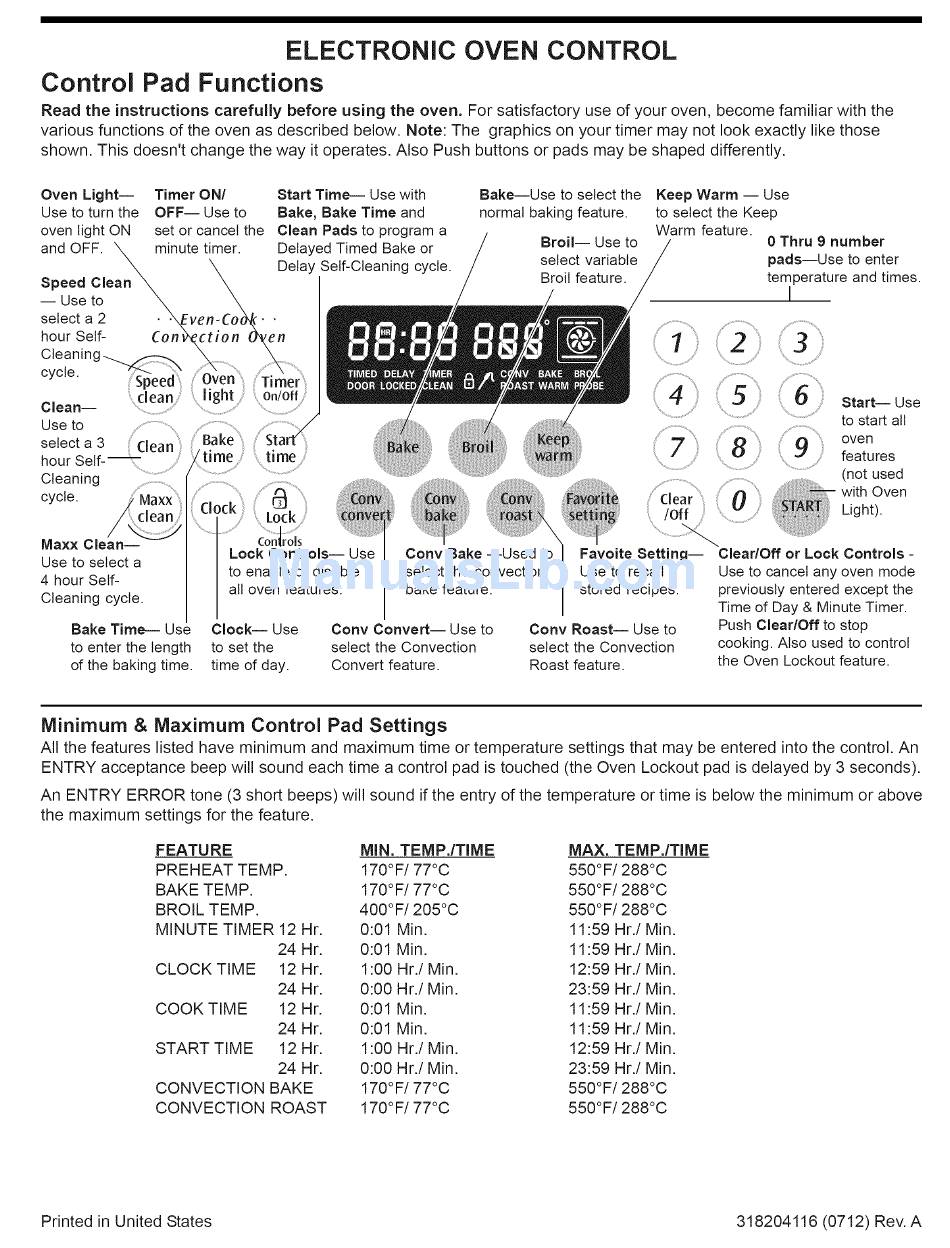

ELECTRONIC OVEN CONTROL
Control Pad Functions
Read the instructions carefully before using the oven. For satisfactory use of your oven, become familiar with the
various functions of the oven as described below, Note: The graphics on your timer may not look exactly like those
shown, This doesn't change the way it operates, Also Push buttons or pads may be shaped differently,
Oven Light-- Timer ON/
Use to turn the OFF-- Use to
oven light ON set or cancel the
and OFF. X minute timer•
Speed Clean
-- Use to
select a 2 .X
hour Setf-
Cleaning_
cyc e .... _ ^^._
• Spt:t:u
clean
Clean-- ................................
Useto ................................... :./
setect a 3
I-m
hour Self--- _time, time
Cleaning
cycle.
Maxx Clean--
Use to select a
4 hour Self-
Cleaning cycle.
Clock
Lock Controls i Use
to enable or disable
all oven features.
Bake Time--- Use
to enter the length
d the baking time.
Start Time-- Use with
Bake, Bake Time and
Clean Pads to program a
Delayed Timed Bake or
Delay Self-Cleaning cycle.
BakeiUse to select the
normal baking feature.
Broil-- Use
to
select variable
Broil feature.
ibp
Cony Bake --Used to
select the convection
bake feature.
Keep Warm -- Use
to select the Keep
Warm feature.
0 Thru 9 number
pads--Use to enter
temperature and times.
I
Clock-- Use
to set the
time of day.
Cony Convert-- Use to
select the Convection
Convert feature.
Favoite Setting--
Use to recall
stored recipes.
Cony
Roast--
Use to
select the Convection
Roast feature.
6 Start--Use
to start all
9 oven
...................................... features
(not used
i } with Oven
Light).
Clear/Off or Lock Controls -
Use to cancel any oven mode
previously entered except the
Time of Day & Minute Timer.
Push Clear/Off to stop
cooking. Also used to control
the Oven Lockout feature.
Minimum & Maximum Control Pad Settings
All the features listed have minimum and maximum time or temperature settings that may be entered into the control. An
ENTRY acceptance beep will sound each time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds),
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is below the minimum or above
the maximum settings for the feature,
FEATURE
PREHEAT TEMP.
BAKE TEMP.
BROIL TEMP.
MINUTE TIMER
CLOCK TIME
COOK TIME
START TIME
12 Hr.
24 Hr.
12 Hr.
24 Hr.
12 Hr.
24 Hr.
12 Hr.
24 Hr.
CONVECTION BAKE
CONVECTION ROAST
MIN. TEMP./TIME MAX. TEMP./TIME
170°F/77°C 550°F/288°C
170°F/77°C 550°F/288°C
400°F/205°C 550°F/288°C
0:01 Min. 11:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
1:00 Hr./Min. 12:59 Hr./Min.
0:00 Hr./Min. 23:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
1:00 Hr./Min. 12:59 Hr./Min.
0:00 Hr./Min. 23:59 Hr./Min.
170°F/77°C 550°F/288°C
170°F/77°C 550°F/288°C
