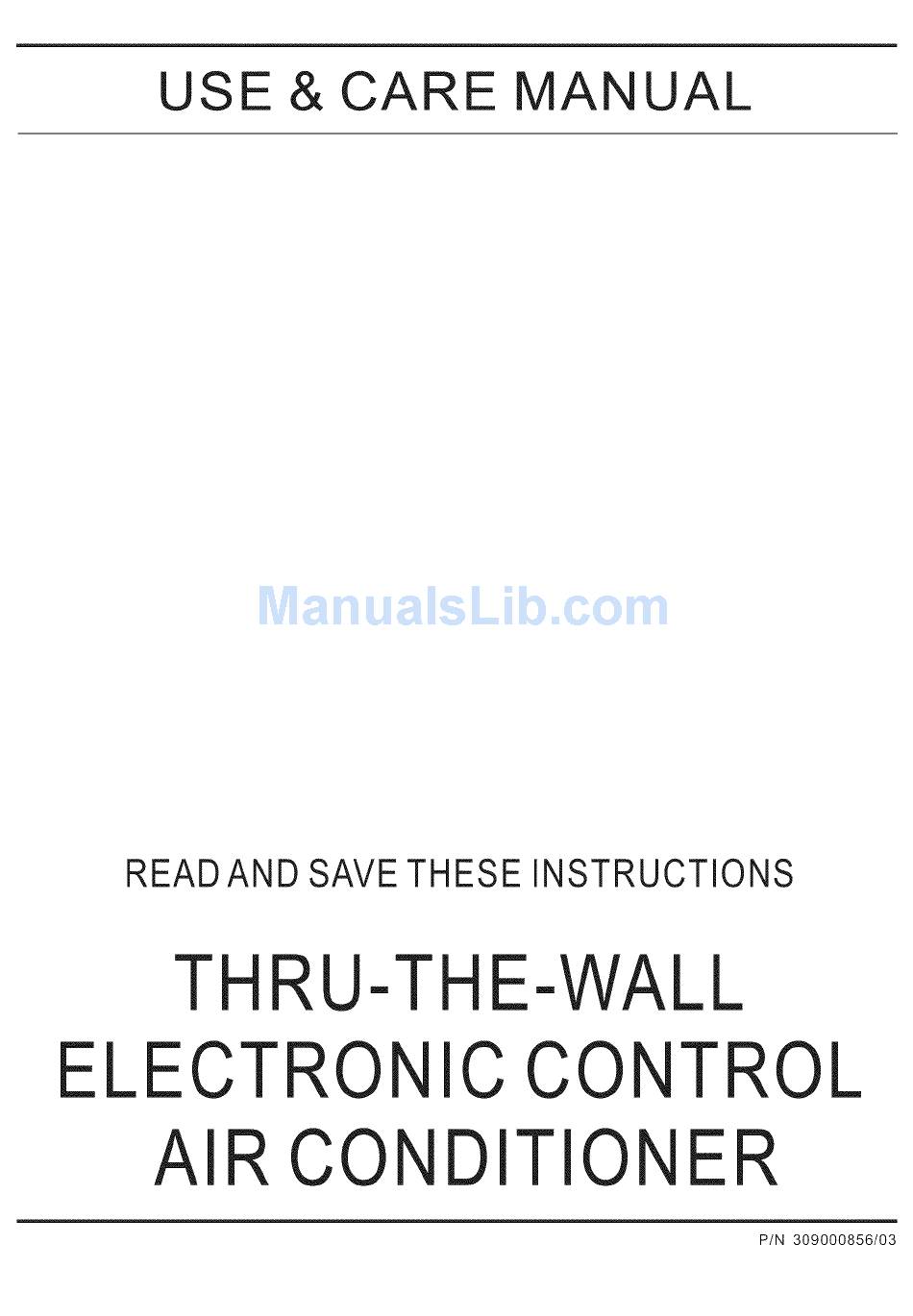

- Page 1 U S E & CARE ANUAL READ AND SAVE THESE INSTRUCTIONS -THE-WALL THRU ELECTRONIC CONTROL AIRCONDI TIONER 309000856/03...
-
Page 2: Room Air Conditioner
Your appliance is warranted by Etectrobx. Etectrobx has authorized Frigidaire Consumer Services and their authorized servicers to perform service under this waranty. Electrolux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service and parts under this war- ranty must be performed by Frigidaire Consumer Services or an authorized Frigidaire servicer. -
Page 3: Product Registration
Model No. Serial Register Your Product self-addressed PRODUCT REGISTRATION CARD should be filled completely, signed and returned to the Frigidaire Company. Contents Warranty Product Registration Normal Sounds NOTE: This Owner's Guide provides specific operating instructions Important... - Page 4 Readall instructions before using this air conditioner. Important Safety For Your Safety Instructions Do not store or use gasoline or other flammable vapors and liquids in the vicinity this or any other appliance. Read product labels for flammability and other The power supply cord...
-
Page 5: Air Conditioner Features
Air Conditioner ELECTRONIC CONTROL OPERATING INSTRUCTIONS Features Before you begin, thoroughly familiarize yourself with the control panel remote as shown below and all its functions. Then follow the symbol for the functions you desire. The unit can be controlled by the touch pad alone or with the remote. - Page 6 Air Conditioner Features (conti.ue¢ TO TURN UNIT ON: YOU WILL SEE: DO THIS: PRESS ON/OFF BUTTON TOCHANGE YOU WILL SEE: TEIVl PERATU R E SETTING DO THIS: PRESS TO RAISE PRESS TO LOWER Note: Tap or hold either up( A) or down(v) button until the desired temperature...
- Page 7 Air Conditioner Features (continued) TO OPERATE ON FAN ONLY: LIGHT YOU WiLL SEE: DO THIS: PRESS MODE BUTTON CHOOSE FAN ONLY Note: Use this function only when cooling is not desired, such as for room circulation. You can choose any fan speed you prefer, EXCEPT AUTO...
- Page 8 Air Conditioner Features(co.t .ued) LIGHT SLEEP FEATURE: YOU WiLL SEE: DO THIS: PRESS SLEEP PAD The Sleep Mode can be selected with a Heating or Cooling Mode. Note: In this "MODE" the selected cooling temperature will increase by 2 degrees F, 30 minutes after the mode is selected.
- Page 9 FAULT CODES If the display reads "AS", a sensor If the display reads "HS", a sensor has failed. Contact your Authorized has failed. Contact yourAuthorized Frigidaire Service Center Frigidaire Service Center TO TURN UNIT OFF: YOU WILL SEE: DO THIS: PRESS...
-
Page 10: Care And Cleaning
Air Conditioner Features (co.t .ued) 4-Way Directional Louvers The 4-Way air directional louvers allow you to direct air flow up or down, left or right throughout the room as needed. To adjust the air directional louvers side- to- side, use the center handle as you move it side-to-side. (4-WAY) Clean your... -
Page 11: Avoid Service Checklist
Remote control not located within range. Place remote control within 20 feet & 1400 , Prematurely (some models). Radius of the front of the unit. Remote control obstructed. Remove obstruction. If These Solution Fail, Call 1-800-444-4944 For Frigidaire Service.
