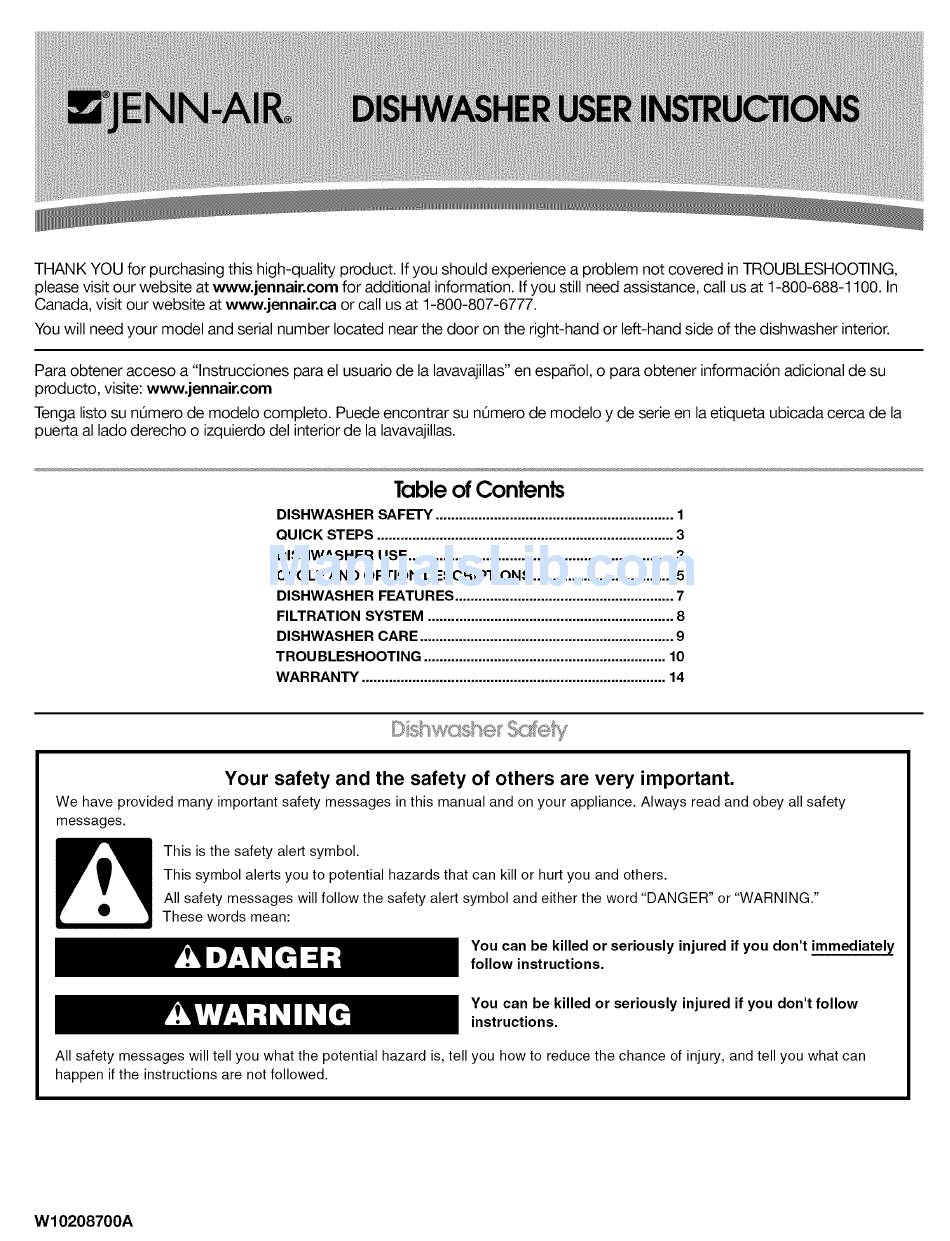

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.jennair.com
for additional information. If you still need assistance, call us at 1-800-688-1100. In
Canada, visit our website at www.jennair.ca
or call us at 1-800-807-6777.
You will need your model and serial number located near the door on the right-hand or left-hand side of the dishwasher interior.
Para obtener acceso a "lnstrucciones para el usuario de la lavavajillas" en espa_ol, o para obtener informaci6n adicional de su
producto, visite: www.jennair.com
Tenga listo su nOmero de modelo completo. Puede encontrar su nOmero de modelo y de serie en la etiqueta ubicada cerca de la
puerta al lado derecho o izquierdo del interior de la lavavajillas.
Table of Contents
DISHWASHER SAFETY .............................................................
1
QUICK STEPS ............................................................................
3
DISHWASHER USE ....................................................................
3
CYCLE AND OPTION DESCRIPTIONS .................................... 5
DISHWASHER FEATURES ........................................................
7
FILTRATION SYSTEM ...............................................................
8
DISHWASHER CARE .................................................................
9
TROUBLESHOOTING
..............................................................
10
WARRANTY ..............................................................................
14
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10208700A
