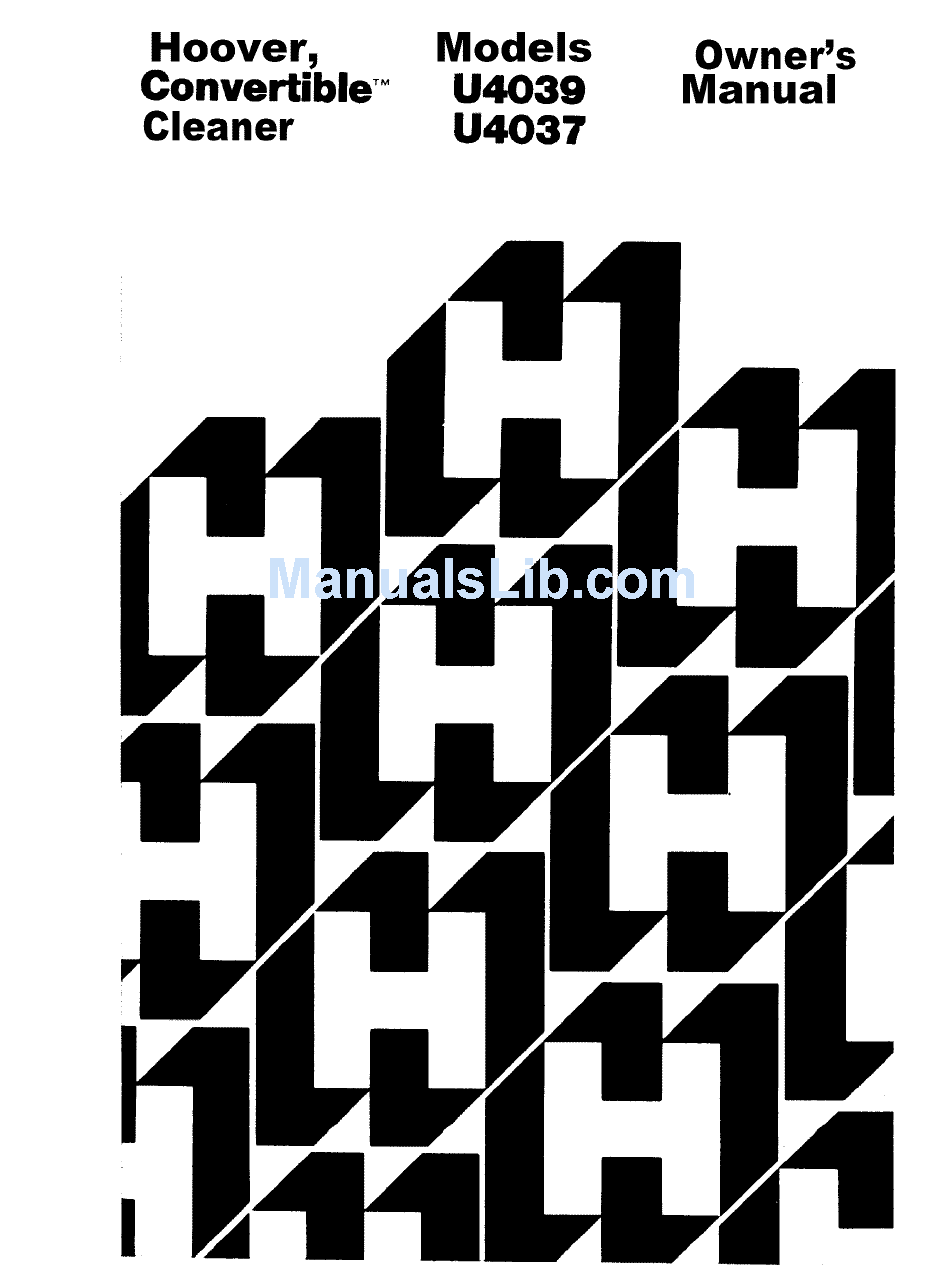

- Page 1 Models Hoover, Owner's Manual Convertible U4039 Cleaner U4037...
- Page 2 Fill in and retain! The HOOVER vacuum cleaner you have just purchased is a combination cleaner equipped with a two speed motor. One speed is utilized when the cleaner is being used on carpet and rugs, and a second higher speed is for use with attachments.
- Page 3 If cleaner is in disrepair, do not attempt to operate. • Have repairs made by the qualified personnel at Hoover Factory Service Centers or Authorized Hoover Warranty Service Dealers. • Use vacuum cleaner only for its intended use as described in the instruc- tions.
- Page 4 UNPACKING CLEANER Unpack the cleaner from the carton and identify the parts shown in Fig. 1. Remove and dispose of the cardboard packing. 1. Upper handle section 2. Lower handle section 3. Cleaner base 4. Outer bag assembly 5. Disposable bag The cleaner assembled will look FIG.
- Page 5 HOW TO ASSEMBLE A. Put handle together Be sure you have removed cardboard from the end of handle pieces. Slide the two handle pieces together. Check to see that cord storage hooks are on the same side of handle. Insert bolt through small...
- Page 6 C. Attaching outer bag to cleaner The outer bag is connected at the rear of the cleaner. There are two projec- tions at the bottom of the outer assembly. To attach outer bag to the cleaner, place the two projections at the bot- tom of the outer bag assembly...
- Page 7 Unroll the rubber bag retainer so it holds bag firmly in place. Grasp the pleats on each side of the throw-away bag at dotted line pull out until entire dotted line is visible. Place throw- away bag inside the outer jack- et without folding...
- Page 8 Adjustment for carpet pile height 'The cleaning of carpet and rugs takes place at the nozzle. This is the opening at the bottom of the cleaner where agitator is located. Fig. 1. It is necessary to raise and lower the nozzle for various carpet...
- Page 9 SPECIAL FEATURES Carrying handle Your cleaner has a convenient carry- ing handle located underneath the han- dle bait. Edge cleaning This feature improves cleaning carpet edges near baseboards and solid furniture. Dust lint tend to collect along these edges. The cleaner bottom plate has been designed with a passage-...
- Page 10 CLEANING TOOL ATTACHMENTS Cleaning tools are available for this cleaner at additional cost from Hoover Dealers. The cleaning tools allow you to do above the floor cleaning and to clean hard to reach areas. Deluxe cleaning set Includes vinyl Standard...
- Page 11 Push connector converter togeth- er and twist. converter is locked into position when projections on the converter fit into the holes on the hose connec- tor. Fig. 3. To attach the converter to the cleaner, first unplug cord. Warning: Cleaner must not be running when position- ing or removing front converter.
- Page 12 B. Select the proper cleaning tool The cleaning tools have many uses. Select the tool best suited for the cleaning task from descriptions below. Wall/floor brush* For walls and very irregular hard surface floors such as brick and slate. Fig. 1, Furniture nozzle For upholstered...
- Page 13 Turn the plastic ring counterclock- wise to lock the tool in place• Fig. 8. For additional length, attach one or both" wands to the vinyl hose as de- scribed in the preceding section• To attach the tools to the other end of the wand, press down firmly on the white plastic spring latch.
- Page 14 Proper use and care of your 'Convertible' cleaner will insure con- tinued cleaning effectiveness. The bag Your HOOVER cleaner has a durable outer jacket which covers the throw away bag. A light wiping with a damp cloth will keep...
- Page 15 What bags to buy Use HOOVER type C with this cleaner• To assure that your HOOVER cleaner operates at peak performance, it is imperative that you use only genuine HOOVER throw away bags made Hoover Company. HOOVER bags can be identified by the trade- ®...
- Page 16 The belt belt of your HOOVER cleaner controls the speed of the agitator and it is important the effective operation of your cleaner. belt is located unde bottom plate of the cleaner and should be checked from time to time...
- Page 17 Always replace both brushes at the same time to maintain cleaning effectiveness. What brushes to buy When purchasing new brushes, ask for Hoover part No. 19799. They are de- signed to be used with your cleaner.
- Page 18 Replace agitator as possible. in cleaner. ENERGY SAVING TIPS Replace throw away cleaner bag promptly, before overfilled. Use a genuine HOOVER bag made for your model cleaner• 2. To maintain effective cleaning, replace agitator brushes and belt when necessary.
- Page 19 (The model number appears on the bottom cleaner.) If further assistance is needed, contact the Hoover Company Customer Rela- tions Department, North Canton, Ohio 44720, 216-499-9200. Lubrication The motor is equipped with one ball bearing and one sleeve bear- ing.
- Page 20 Store machine carefully -- in dry area -- never outdoors. For optimum cleaning performance and safety, study and follow your Owner's Manual -- keep it in a handy and safe place for future reference. THE HOOVER COMPANY, NORTH CANTON, OHIO 44720 9-76 U4037-OO1/U4039-O01...
