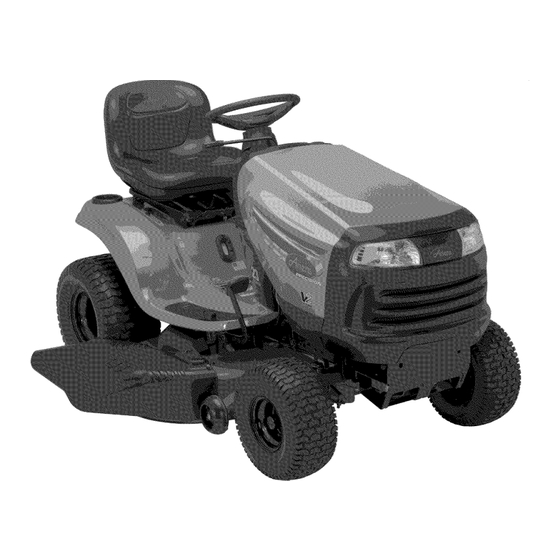

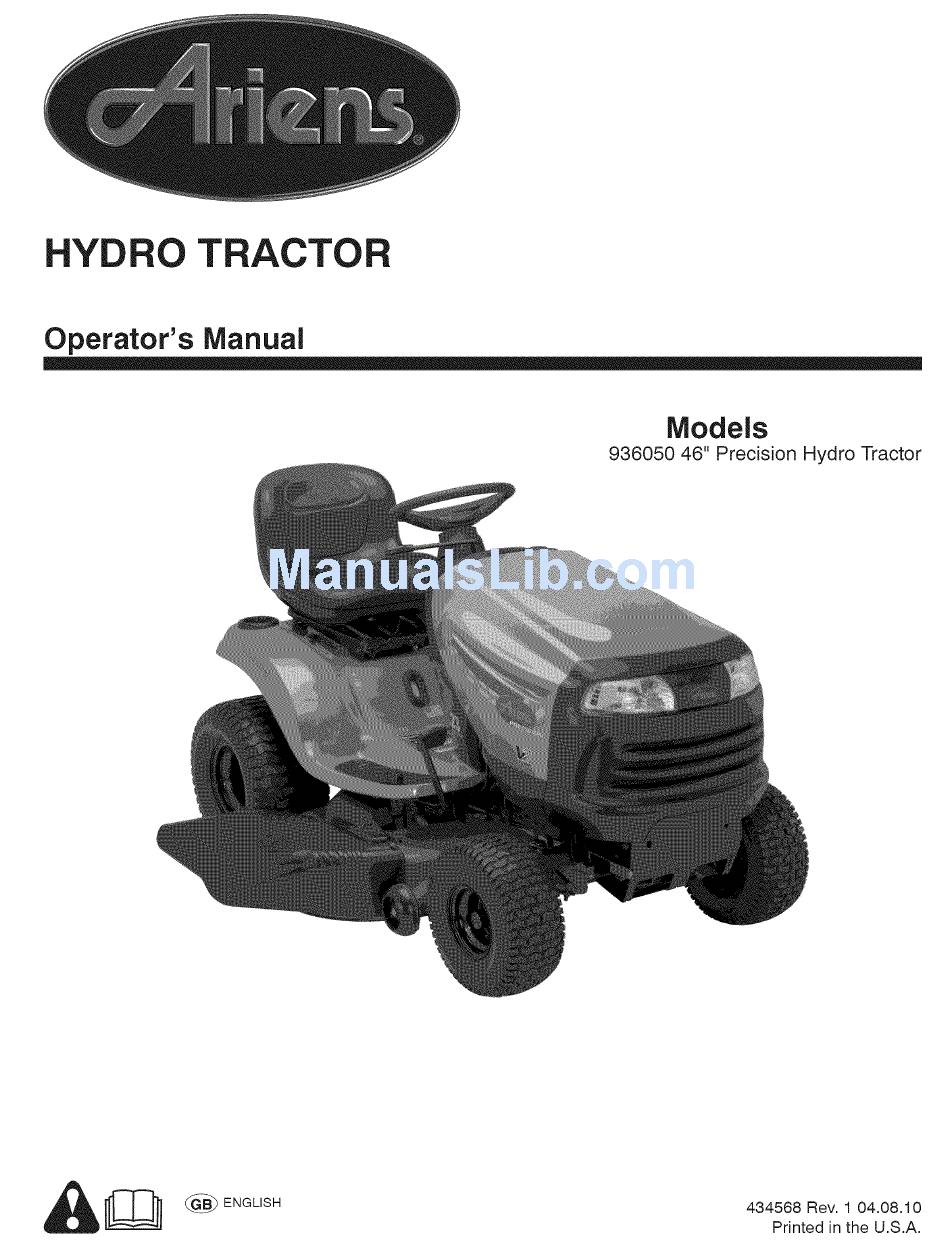

- Page 1 YDRO TRACTO Operator's Manual Models 936050 46" Precision Hydro Tractor 434568 Rev. 1 04.08.10 _ ENGL,SH Printed in the U.S.A.
-
Page 2: Safety Rules
SAFETY RULES Safe Operation Practices for Ride=On Mowers DANGER: THiS CUTTING MACHINE iS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY iNSTRUCTiONS COULD RESULT iN SERIOUS iNJURY OR DEATH. • Slow down before turning. WARNING: in orderto prevent accidental •... - Page 3 SAFETY RULES Safe Operation Practices for Ride=On Mowers ill. CHILDREN GENERAL SERVICE Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to • Never operate machine in a closed area. the machine and the mowing activity.
-
Page 4: Table Of Contents
PRODUCT SPECiFiCATiONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give Gasoline Capacity 3.0 Gallons you the best possible dependability and performance. and type: Unleaded Regular Should you experience any problem you cannot easily rem- Oil Type (API-SG-SL): SAE 30 (above 32°F) edy, please contact your nearest authorized servicecenter/... - Page 5 UNASSEMBLED PARTS Slope Sheet (1) Oil Drain Tube (2) Keys ASSEMBLY Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. Standard wrench sizes are listed.
-
Page 6: Assembly
ASSEMBLY J'CHECKLIST BEFORE YOU OPERATE YOUR NEW TRACTOR, WE NOTE: You may now roll your tractor off the skid. Follow the WISH TO ASSURE THAT YOU RECEIVE THE BEST instructions below to remove the tractor from the skid. PERFORMANCE SATISFACTION FROM THIS _i, WARNING: Before starting, read, understand and fol-... - Page 7 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. I",l CHOKE FAST SLOW REVERSE NEUTRAL HiGH IGNITION SWITCH ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT MOWER LIFT OPERATION...
-
Page 8: Operation
OPERATION KNOW YOUR TRACTOR READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. 03102 Fig. 3 Our tractors conform to the applicable safety standards of the American National Standards Institute. - Page 9 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 10 OPERATION TO MOVE FORWARD AND BACKWARD The cutting height range is approximately 1" to 4". The heights are measured from the ground to the blade tip with (See Fig. 7) the engine not running. These heights are approximate and The direction and speed of movement is controlled by the may vary depending upon soil conditions, height of grass forward and reverse drive pedals.
- Page 11 OPERATION TO STOP MOWER BLADES • Look down and behind before and while backing. • Slowly depress reverse drive pedal to start movement. • Disengage attachment clutch control. • When use of the ROS is no longer needed, turn the ignition key clockwise to engine "ON"...
- Page 12 OPERATION SERVICE REMINDER/HOUR METER TO START ENGINE (See Fig. 3) Service reminder shows the total number of hours the engine When starting the engine for the first time or if the engine has run and flashes to indicate that the engine or mower has run out of fuel, it will take extra cranking time to move needs servicing.
- Page 13 OPERATION MOWING TIPS PURGE TRANSMISSION Mower should be properly leveled for best mowing performance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual. freewheel lever while the engine CAUTION: Never engage or disengage • The left hand side of mower should be used for trim- running.
-
Page 14: Maintenance Schedule
MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS v" Check Brake Operation Check Tire Pressure Presence & ROS Check Operator Systems v" Check for Loose Fasteners Mower Blades Check/Replace Lubrication Chart Level Check Battery... -
Page 15: Maintenance
MAINTENANCE BLADE CARE TRACTOR For best results mower blades must be kept sharp. Replace Always observe safety rules when performing maintenance. bent or damaged blades. BRAKE OPERATION proved by the manufacturer of your tractor. If tractor requires more than five (5) feet to stop at highest Using a blade not approved by the manu= CAUTION: Use only a replacement blade ap-... - Page 16 MAINTENANCE V=BELTS OIL DRAIN VALVE Check V-belts for deterioration and wear after 100 hours CLOSED of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. LOCKED ---_-b__ L_._ _ OS,T,ON TRANSAXLE COOLING _/'--_...
- Page 17 MAINTENANCE IN=LINE FUEL FILTER (See Fig. 18) DECK WASHOUT PORT (See Fig. 20) The fuel filter should be replaced once each season. If fuel Your tractor's deck is equipped with a washout port on filter becomes clogged, obstructing fuel flow to carburetor, its surface as part of its deck wash system.
- Page 18 SERVICE A Depress brake pedal fully and set parking brake. WARNING: TO AVOID SERIOUS iNJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. Ensure the blades and all moving parts have completely stopped. DisconnectsparkpIugWirefromsparkpIugandp_acewirewhereitcannotcomeincontactwithpIug_ iMPORTANT: IF AN ATTACHMENT OTHER THAN THE TO REMOVE...
- Page 19 ENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
- Page 20 SERVICE A TO LEVEL MOWER • If adjustment is necessary, see step in Visual Adjust- ment instructions above. Ensure tires are properly inflated to the PSI shown on tires. • Recheck measurements, adjust if necessary until both If tires are over or under inflated, it may affect the appear- sides are equal.
- Page 21 ENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 31) (See Fig. 32) The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake. Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest.
-
Page 22: Service And Adjustments
SERVICE AND ADJUSTMENTS FRONT WHEEL TOE-IN/CAMBER TO REMOVE CABLES, REVERSE ORDER- • BLACK cable first from chassis and then from the fully Your new tractor front wheel toe-in and camber isset at the charged battery. factory and is normal. The front wheel toe-in and camber •... - Page 23 SERVICE AND ADJUSTMENTS iNTERLOCKS AND RELAYS • With engine not running, move throttle control lever to fast position. Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting. • Check that swivel is against stop. If it is not, loosen Check wiring.
-
Page 24: Storage
STORAGE Immediately prepare your tractor for storage at the end ENGINE of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM iMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS WARNING: Never store the tractor with FROM FORMING IN ESSENTIAL FUELSYSTEM PARTS SUCH gasoline in the tank inside a building... - Page 25 TROU OOTI CORRECTION CAUSE PROBLEM 1. Out of fuel. Will not start Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter. Clean/replace air filter.
- Page 26 BLESHOOTING PROBLEM CAUSE CORRECTION Check wiring, switches and connections. If not Engine continues Faulty operator-safety presence control corrected, contact an authorized service center/ system. to run when oper= department. ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. Replace blade.
- Page 27 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION 8LO_ ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow WARNING: To avoid serious injury, operate your tractor up and slopes greater...
-
Page 28: Warranty
Ariens brand consumer tractors will be free from defects in material and workmanship for a period of two years after the date of purchase. An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein. -
Page 29: Warranty
Canada. In all other countries, contact place of purchase for warranty information. Disclaimer Ariens may from time to time change the design of its products. Nothing contained in this warranty shatl be construed as obligating Ariens to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective. - Page 30 Ariens Company 655 West Ryan Street Brillion, Wl 54110-1072 800-317-5898 www.ariens.com _IL WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
