- Page 1 CABINET PARTS REFRIGERATOR For Model: KSCS25FJSS00 (Stainless Steel) 10−01 Litho In U.S.A. (mdg) Part No. 4398601 Rev. C...
-

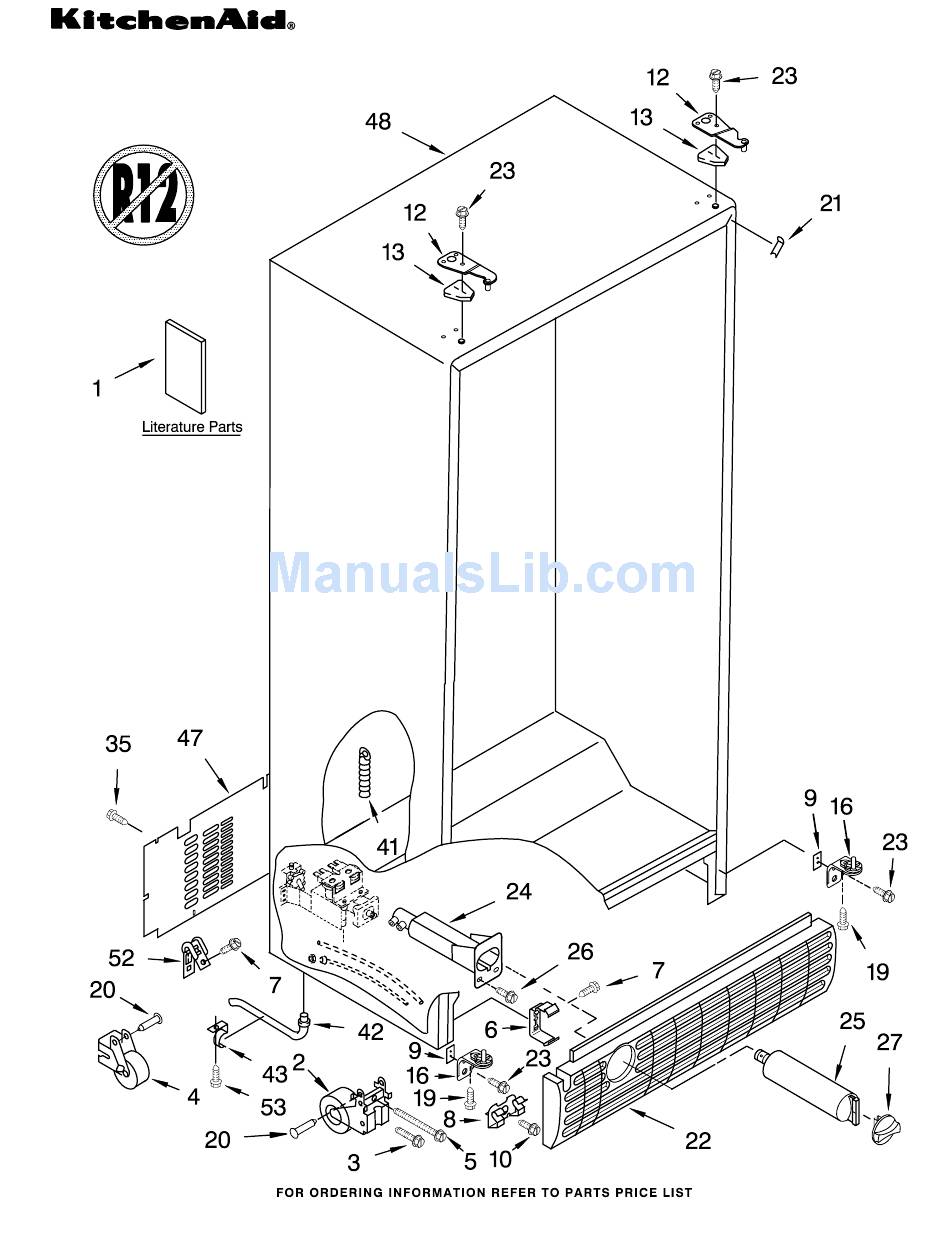

Page 2: Cabinet Parts
CABINET PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS 1 LIT2210719 Use & Care Guide LIT2199974 Service & Wiring Sheet LIT2211871 Energy Label LIT628370 Modular Icemaker Service Sheet 2203007 Front Roller (2) 3400512 Bolt 2203008 Roller (Rear) (2) 3400511 Bolt 2210749 Clip, Grille 489478 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2171846 Release Valve 2196485 Stud Assembly (3) 8281158 Screw (9) 2196483 Stud Assembly (9) 2181796 Ladder, Shelf 3400894 Screw (3) 489478 Screw 2179404 Rack, Wine & Egg 2203078 Air Diffuser Assembly 2162085 Socket... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION 2203054 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2203034 Cover, Meat Pan (Includes Items 13, 14 & 15) 2203038 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 6 FREEZER LINER PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2199860 Door, Ice Compartment 2172803 Grommet 2174478 Eyelet, Roller 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2199867 Trim, Basket 2199863 Basket (2) 2199892 Basket, Shallow 2188212 Roller 2203111 Wiring Cover...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION 2199843 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2199846 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489355 Screw 2162085 Socket, Light 2199895 Ice Container 983668 Coupling, Conveyor 1119005 Spacer, Step (3)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2209549S Stainless Steel 2182181 Thimble−Top 2182399 Door, Compartment 2182190 Trim, Door Shelf 489463 Screw 2199986 Bin, Door Door Gasket, Magnetic (Service) 2209515 Black 2204454 Handle (Includes Item 20) 3400012 Screw 2195497 Divider, Bin...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 12 FREEZER DOOR PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2209552S Stainless Steel 2204454 Handle (Includes item 20) 3400012 Screw 489491 Screw 2199990 Trim, Door Shelf 2182181 Thimble−Top Door Gasket, Magnetic (Service) 2209514 Black 2199991 Trim, Door Shelf 3369138 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 14 DISPENSER FRONT PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2180325 Black 2209718 Water Fitting Assembly (Includes Water Tube) Lever, Ice...
-
Page 15: Unit Parts
UNIT PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 16 UNIT PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2199167 Drier 486692 Speed Nut 2205813 Strap 2190685 Fan, Blade 2208176 Compressor 227991 Wire Connector (Includes Items 2208155B Condenser 2196152 Union 12, 13, 17, 27, Assembly &...
-
Page 17: Air Flow Parts
AIR FLOW PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2208184 Block, Fan Scroll 2199931 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2203117 Harness, Fan Evaporator, And Heater, Bi−Metal... -
Page 18: Control Parts
CONTROL PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2203080 Circuit Board, 2203172 Thermistor 2203081 Overlay Interface 2162085 Light Socket 2208141 Retainer, Circuit 850166 Light Bulb 2199717 Control Box Board 2203108 Light Lens 2199761 Control Box 940014 Hole Plug Harness... -
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSCS25FJSS00 (Stainless Steel) 4398601... - Page 20 ICEMAKER PARTS For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part DESCRIPTION 2203127 Tube, Filter Outlet 2209707 Tube, Filter Inlet 628379 Clip, Fuse 2181940 Tube, Water 2181939 Insert, Tube 489478 Screw 2199838 Valve, Solenoid 627018 Nut, Compression 2208136 Clip, Water Tube 2203024 Tube, Water Inlet 488878 Tube Clamp 2174155 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Model: KSCS25FJSS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl Customer Touch−Up Material (3/4 x 108") 876370 Kit, Insulation...
