- Page 1 COOKTOP PARTS 36" ELECTRIC CERAN For Models: KECC566RSS04 COOKTOP (STAINLESS) Part No. W10184008 Rev. A 01−08 Litho in U.S.A.(amd)

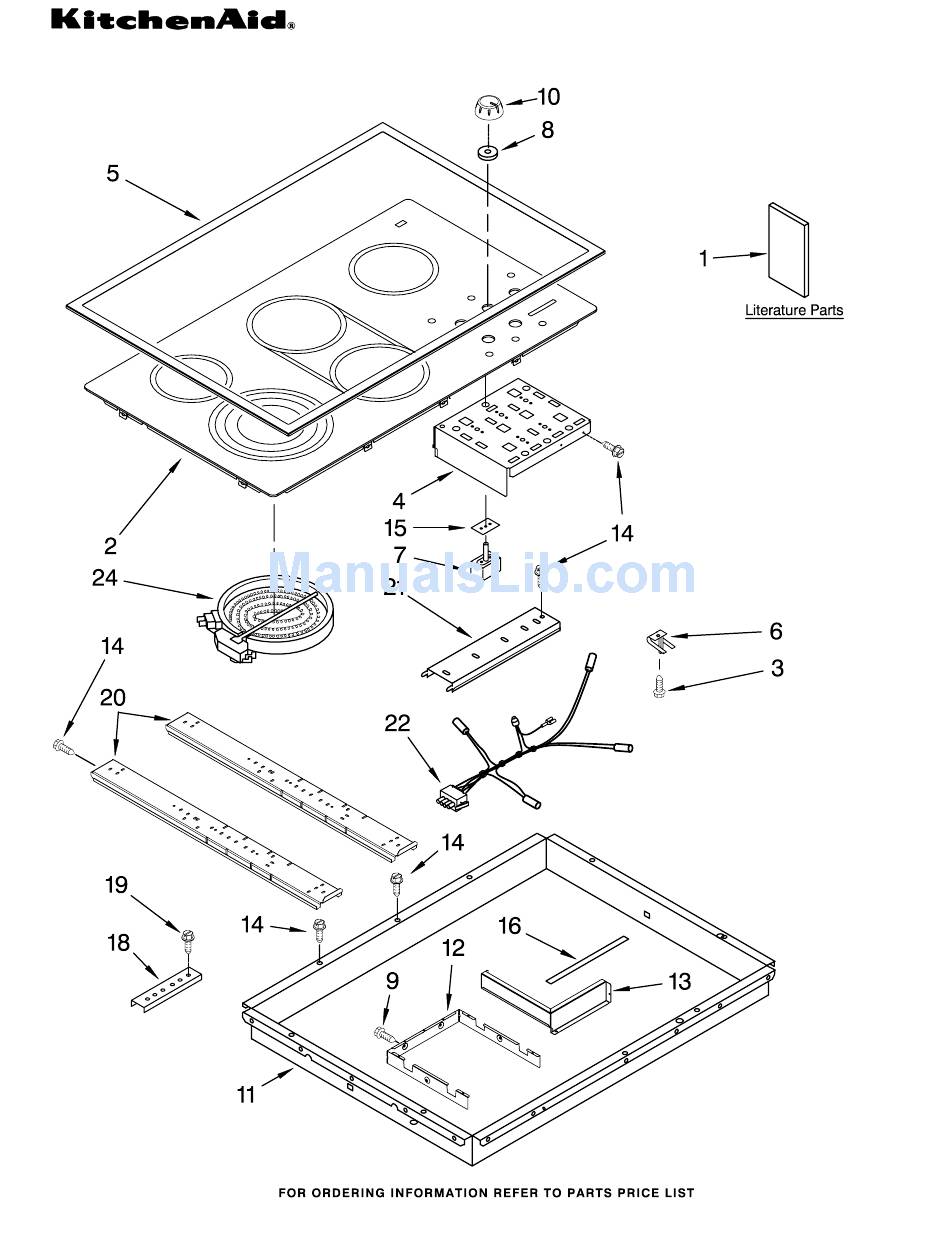

- Page 2 COOKTOP PARTS For Models: KECC566RSS04 (STAINLESS) Illus. Part DESCRIPTION Literature Parts 8286066 Instruction Installation 8304571 Instrctions−Canada 8286074 Wiring Diagram 8286062 Energuide Label W10162162 Use & Care Guide Safer Cooking Tips 9762761 English W10065852 French 8286947 Cooktop, Glass 246119 Screw 8285808 Bracket, Switch 5 W10142239 Frame, Cooktop 9759094 Spring Locator(10) Switch, Infinite...
- Page 3 OPTIONAL PARTS For Models: KECC566RSS04 (STAINLESS) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 8286642 Tape, Foam SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga. 150 C 242830 Wire, Brown 14 Ga.
