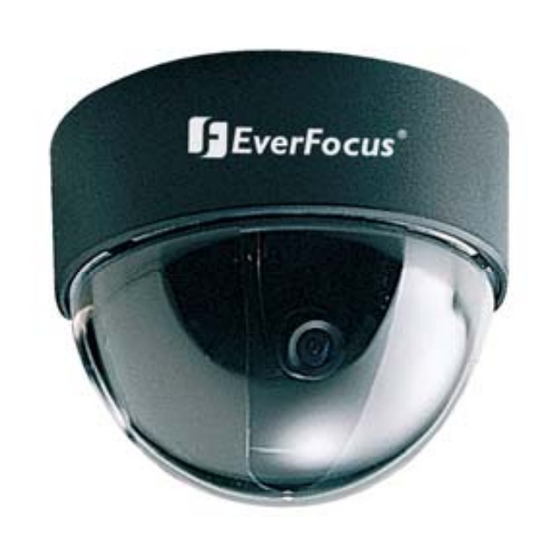

EverFocus 560 TVL Color Mini Dome Camera ED350 Operation Instructions Manual

EverFocus 560 TVL Color Mini Dome Camera ED350 Operation Instructions Manual

1/3” 560 tvl color mini dome camera
Hide thumbs Also See for 560 TVL Color Mini Dome Camera ED350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2.
Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3.
Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4.
Keep the power cord away from water and liquid.
Touching the wet power cord may result in electric shock.
5.
Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in failure, electric shock or fire.
1/3" 560 TVL Color Mini Dome Camera
EVERFOCUS
Operation Instructions
ED350
Model No.

Advertisement

Table of Contents
loading

Related Manuals for EverFocus 560 TVL Color Mini Dome Camera ED350

Summary of Contents for EverFocus 560 TVL Color Mini Dome Camera ED350

  • Page 1 Touching the wet power cord may result in electric shock. Never install the camera in areas exposed to water, oil or gas. Water, oil or gas may result in failure, electric shock or fire. 1/3” 560 TVL Color Mini Dome Camera Operation Instructions EVERFOCUS ED350 Model No.

  • Page 2: Package Contents

    Cleaning Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

  • Page 3: Specifications

    SPECIFICATIONS Pickup Device Video Format Scanning System Picture Elements Horizontal Resolution Sensitivity S/N Ratio Electronic Shutter Lens Type Back Light Comp. Auto Gain Control Flickerless Auto White Balance Gamma Correction Video Output Sync. Mode Power Source Power Consumption Dimensions Weight Operating Temperature Certifications 1/3'' SONY Super HAD CCD...
  • Page 4 DIMENSIONS MAJOR PARTS NAME & THEIR FUNCTIONS...
  • Page 5 (1) Camera Cover This cover will protect the camera from dust and damage. (2) Lens This Vari-Focal Lens allows users to adjust the Zoom and Focus manually. (3) Base The camera unit is set in the dome base when it is shipped from the factory. (4) Focus Ring To set the focus, loosen the Focus ring knob first, then turn the ring toward <∞>...

  • Page 6: Lens Adjustment

    LENS ADJUSTMENT Zoom and focus adjustments After the camera was installed, the zoom and focus of the lens must be adjusted. 1. Loosen the zoom ring knob, and then turn the ring towards <W> or <T> as necessary to obtain the desired view range.
  • Page 7 ADJUSTMENTS Audio (Optional) (1) IRIS ALC Adjustment To select light metering method: Turn the IRIS ALC Adjustment VR counterclockwise for Average Metering. Turn the IRIS ALC Adjustment VR clockwise for Peak Metering. (2) IRIS Level Adjustment Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens. Turn counterclockwise to L to get darker picture.
  • Page 8 (3) Flickerless When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(NTSC) or 1/120(PAL) automatically, and reduce the flicker immediately. The default setting is OFF. (4) Auto Gain Control Adjustment AGC ON: The sensitivity increases automatically when the light is low. AGC OFF: A low-noise picture is obtained under a low light condition.

  • Page 9: Installation

    INSTALLATION Remove the plastic dome cover. Lossen the two screws of the supporting bracket to remove the camera body. Use four screws to fix the camera base on the ceiling. Put the camera body back to the supporting bracket, then tighten the two screws to fix the camera.

  • Page 10: Everfocus Electronics Corp

    415 Oser Avenue Unit S Hauppauge, NY 11788 TEL: 631-436-5070 FAX: 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
