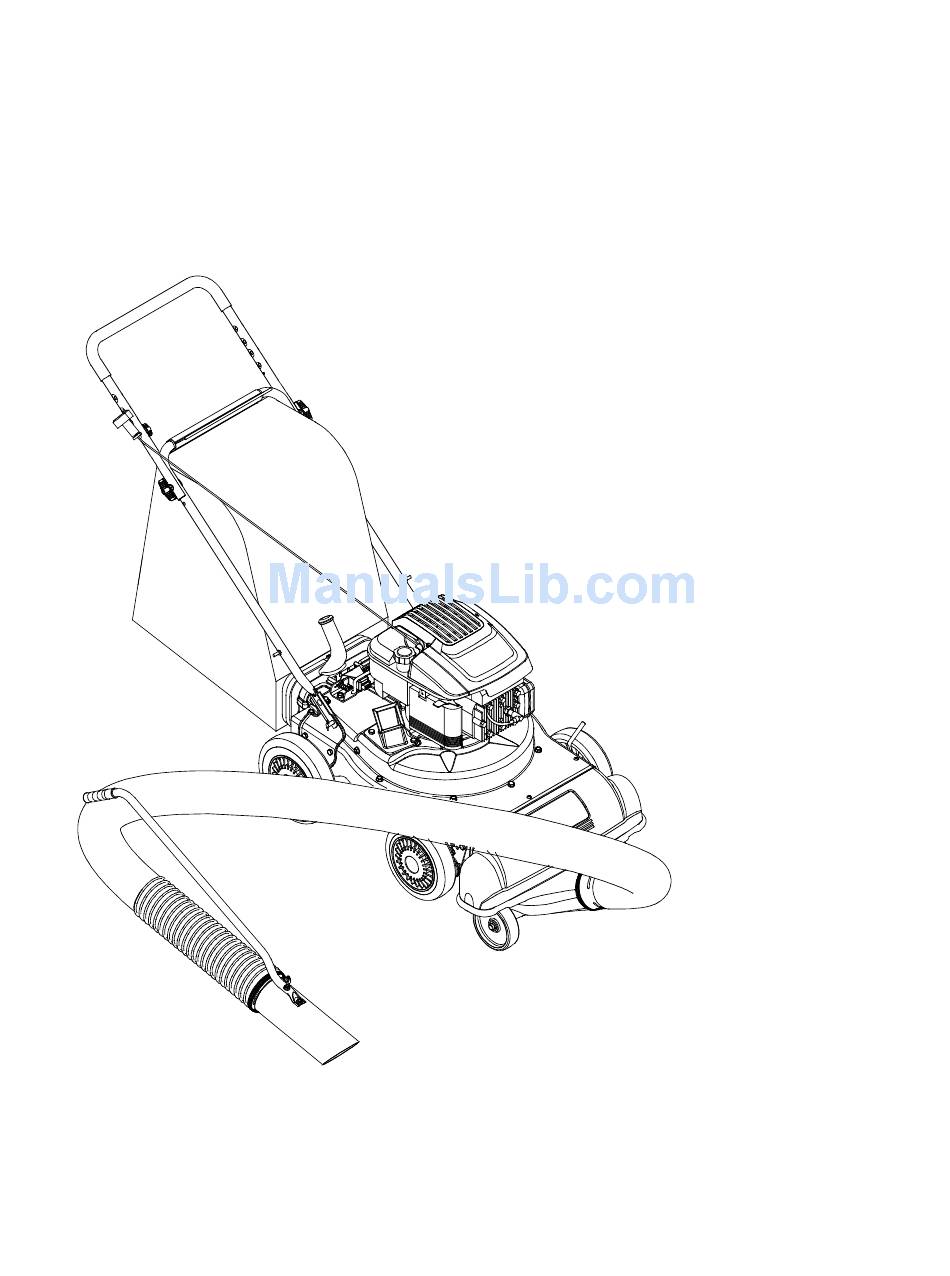

- Page 1 OPERATOR’S MANUAL Chipper Shredder Vacuum Hose Attachment OEM-290-024 MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722 770-10421A.fm PRINTED IN U.S.A. FORM NO. (10/00)
-
Page 2: Section 1: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. -
Page 3: Operation
To reduce a fire hazard, keep machine free 10. Keep all guards, deflectors and safety devices in of grass, leaves, or other debris build-up. place and operating properly. Clean up oil fuel spillage and remove any fuel 11. Keep your face and body back and to the side of soaked debris. -
Page 4: Section 2: Assembly
SECTION 2: ASSEMBLY Removing Unit From Carton • Slip one end of the hose over the nozzle assembly and secure by tightening the adjustment clamp • Remove staples, break glue on top flaps, or cut against the hose. See Figure 2. tape at carton end and peel along top flap to open •... - Page 5 Strap Hose Handle Strap Nozzle Hose Attachment Wheel Nozzle Assembly Figure 4 Figure 3 Using the Hose Attachment Use the handle to guide the nozzle on the end of the hose while vacuuming yard waste such as leaves and pine needles. Do not attempt to vacuum any material other than vegetation found in a normal yard (i.e.
- Page 6 Model OEM-290-024...
- Page 7 Model OEM-290-024 Ref. Part No. Part Description 07071 Handle Grip 749-1270 Handle 712-3027 Hex Lock Nut 1/4-20 736-3020 Flat Washer .271 ID x .630 OD 731-2478 Nozzle 3.875 x 12.0 710-0751 Hex Cap Screw 1/4-20 x .620 710-0106 Hex Cap Screw 1/4-20 x 1.25 723-0295 Adjustable Clamp 764-0646...
- Page 8 MANUFACTURER’S LIMITED WARRANTY c. Routine maintenance items such as lubricants, filters, The limited warranty set forth below is given by MTD blade sharpening and tune-ups, or adjustments such PRODUCTS INC (“MTD”) with respect to new merchandise as brake adjustments, clutch adjustments or deck purchased and used in the United States, its possessions adjustments;...
