MTD GT1822 Supplement Sheet

Supplement

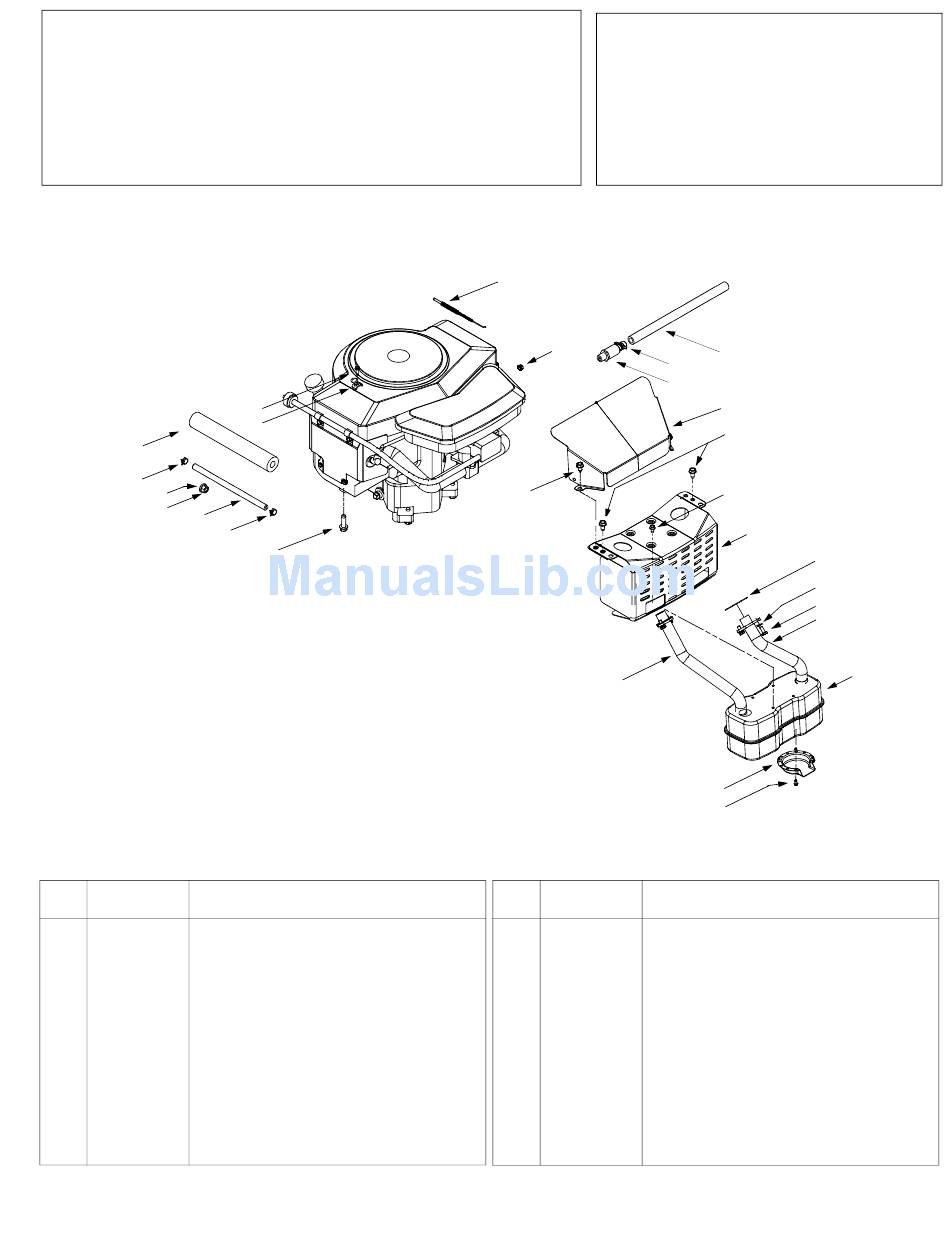

Your tractor may be equipped with an engine not covered in the Parts List section of your
Operator's Manual. Use the information below when ordering service parts if your lawn
tractor is equipped with a Briggs & Stratton Opposed Twin engine.
Briggs & Stratton
Opposed Twin
11
13
15
(for choke)
8
18
13
REF. PART
NO. NO.
1 710-0148 Self-tapping Screw, #8-32 x .375
2 710-0599 Self-tapping Screw, 1/4-20 x .5
3 710-0604A Self-tapping Screw, 5/16-18 x .625
4 710-0751 Hex Cap Screw, 1/4-20 x .620 (Grade 5)
5 710-0779A Screw, #10-16 x .5
6 710-1315 Self-tapping Screw, 3/8-16 x 1.25
7 712-0271 Hex Sems Nut, 1/4-20 (for starter cable)
8 712-3017 Hex Nut, 3/8-16
9 783-0615 Muffler Heat Shield
10 721-0346 Exhaust Gasket
11 722-0263 Foam, .625 x 1.5 x 10 (fits over fuel line)
12 725-0157 Cable Tie (Not Shown)
13 726-0205 Hose Clamp
Sheet
5
14
6
DESCRIPTION
CODE:
DATE:
SUBJECT: B&S Opposed Twin
26
7
25
23
3
22
REF. PART
NO. NO.
14 726-0272 Clamp, 9/16
15 736-3000 Flat Washer, .406 x .875 x .059
16 736-0329 Lock Washer, 1/4
17 783-0357A Heat Shield
18 751-0535 Fuel Line Hose
19 751-0564 Muffler Deflector
20 751-0616 Muffler, Twin Inlet
21 751-0623 LH Exhaust Pipe
22 751-0624 RH Exhaust Pipe
23 751-3140 Oil Drain Valve
24 751-3141 Oil Drain Hose
25 751-3142 Oil Drain Cap
26 746-1086 Throttle Cable
R-441
December 8, 1999
Engine Accessories
21
17
3
2
9
10
16
4
21
20
(deflector must
19
face forward)
1
DESCRIPTION
FORM NO. 770-1671
