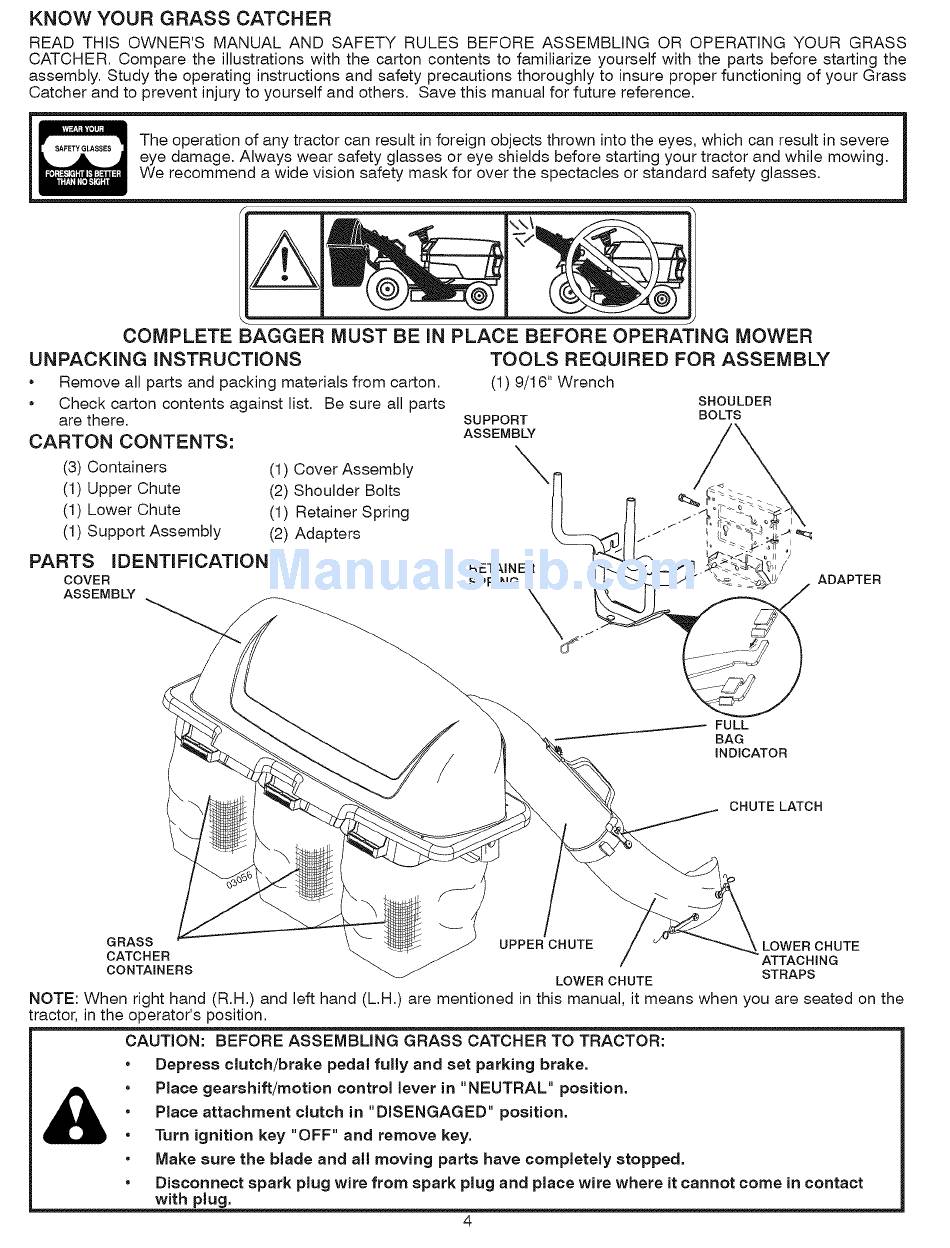

KNOW YOUR GRASS CATCHER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS
CATCHER. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the
assembly. Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass
Catcher and to prevent injury to yourself and others. Save this manual for future reference.
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe
eye damage. Always wear safety glasses or eye shields before starting your tractor and while mowing.
We recommend a wide vision safety mask for over the spectacles or standard safety glasses.
COMPLETE BAGGER MUST BE iN PLACE BEFORE OPERATING MOWER
UNPACKING iNSTRUCTIONS
• Remove all parts and packing materials from carton.
• Check carton contents against list. Be sure all parts
(1) Cover Assembly
(2) Shoulder Bolts
(1) Retainer Spring
(2) Adapters
are there.
CARTON CONTENTS:
(3) Containers
(1) Upper Chute
(1) Lower Chute
(1) Support Assembly
TOOLS REQUIRED FOR ASSEMBLY
(1) 9/16" Wrench
SHOULDER
SUPPORT BOLTS
ASSEMBLY
\
PARTS iDENTiFiCATiON RETAINER
COVER SPRING
ASSEMBLY
FULL
BAG
INDICATOR
ADAPTER
CHUTE LATCH
GRASS UPPER CHUTE LOWER CHUTE
CATCHER ATTACHING
CONTAINERS STRAPS
LOWER CHUTE
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the
tractor, in the operator's position.
CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
Depress clutch/brake pedaJ fully and set parking brake.
Place gearshift/motion control lever in "NEUTRAL" position.
Place attachment cJutch in "DISENGAGED" position.
Turn ignition key "OFF" and remove key.
Make sure the bJade and aJJmoving parts have compJeteJy stopped.
Disconnect spark pJug wire from spark pJug and pJaee wire where it cannot come in contact
with plug.
4
