Summary of Contents for Omega FOB100

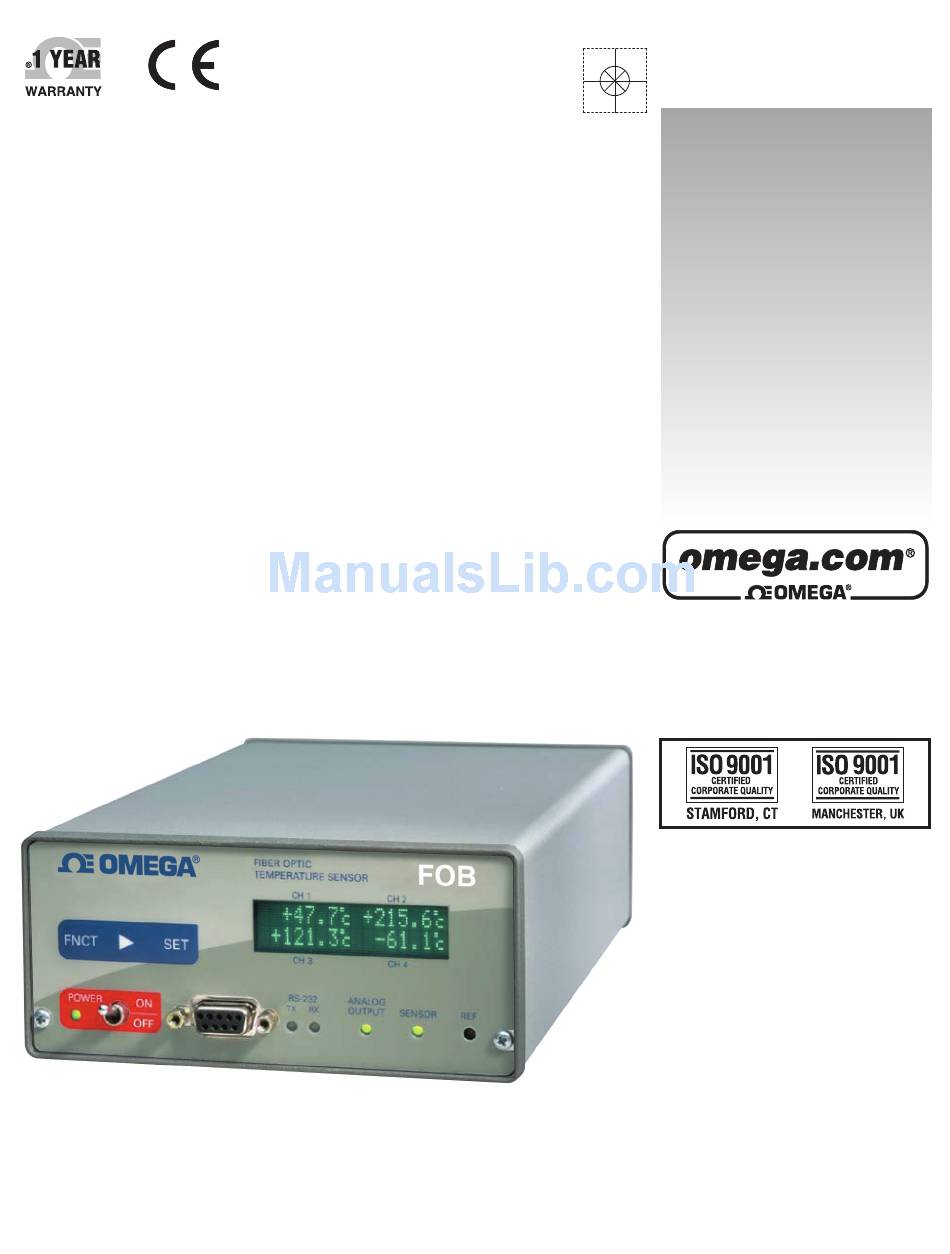

- Page 1 User’ s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info MADE IN CANADA Fiber Optic Thermometer Systems...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
20 mA analog output options are self-powered interfaces (by opposition to loop-powered interfaces), and thus do not require any external supply. Fiber optic probes are fragile, and will break if the bending radius becomes less than ~1cm, even temporarily. Probe breakages are not covered under the standard Omega warranty. -
Page 4: Introduction
NTRODUCTION Congratulations on the purchase of your FOB100 Series thermometer product! Your new temperature sensing system will soon allow you to take full advantage of the benefits inherent to fiber optic sensing technology. It offers accurate and reliable temperature measurements, combined with extraordinary insensitivity to EMI/RFI, high voltage insulation and disturbance free sensing due to the non-electrical nature of the sensor element used. -
Page 5: Calibration
NIST traceable calibration certificates are available. All calibrations are performed at the factory. Con certificates are available. All calibrations are performed at the factory. Contact your Omega tact your Omega representative for further information. -
Page 6: Unpacking
Returns must be made with the original packaging, accompanied by an authorization number (RMA). Omega Customer Service Department will provide you with information concerning the return of merchandise; you can contact Omega at (800) 622-2378 or (203) 359- 1660. -
Page 7: Fob100 Series Thermometer Hardware Reference
3 FOB100 S ERIES HERMOMETER ARDWARE EFERENCE The following figure shows the thermometer front panel: The FOB100 back panel is as follows: The following presents a full description of the user interface as well as detailed instructions on how to use the thermometer. - Page 8 If you need to extend a sensor fiber, you should use optional patch cords that are available from ds that are available from Omega. For thermometers that have 1 or 2 channel(s), only 1 or 2 sensor c . For thermometers that have 1 or 2 channel(s), only 1 or 2 sensor connectors are used.
- Page 9 Warning: The fiber type that is used with your thermometer is of a special type, and it is recommended that you get ALL of your patch cords (also called extension cables) from Omega. 9) Analog output connector(s): There are a total of 1, 2 or 4 such connectors, one for each channel. Prior to shipment, your FOB100 thermometer was factory set to one of the following configurations: 4-20mA or 0-10V output.
-
Page 10: Using The Temperature Probes
SING THE EMPERATURE ROBES 4.1 Caution Each time you connect a temperature probe to the unit, the probe optical connector should be cleaned beforehand. Otherwise, particles of grease or dirt may obstruct the device internal connector and affect the measurements by completely blocking the signal or by generating too much attenuation when using a long fiber length. -
Page 11: Warning
Warning: Solvents and fuel oils can cause problems for silicone rubber. Omega also manufactures probes that have their tips made of epoxy. Just like silicone, epoxy resin is resistant to a large number of chemical aggressors, strong acids or alkali may damage it, especially at high temperature and/or if used for extended periods of time. -
Page 12: Serial Communication Description
Windows program that can be easily used to exercise your FOB100 thermometer. To use Hyper Terminal you first set its properties as follows: 1- In the “Connection Description” window, enter a name that suits you, such as “Omega-FOB100”. Click OK. -
Page 13: Detailed Description Of Rs-232 Commands
FOB101 FOB102 or 104 Description Return enclosure temperature e[1;2; ... ;n] Enable channels to scan (if no argument, scan all) f[j] f[i;j] Set point adjustment on channel [i] to [j] Help menu (this screen) Get factory and status information Lock the keypad (l+ to lock, l- to unlock) l[i] l[i] o[i]... - Page 14 “f[j]” or “f[i j]” This command forces an actual temperature reading (j) for channel # i; any resulting offset will be applied to all future measurements for that channel. This is useful to compensate for small temperature deviations that may occur between sensors. A maximum offset of +/-5 C is recommended;...
- Page 15 i=1. In case of a probe problem, the analog output for this channel will be forced to its maximum possible value (e.g., 10V or 20mA). i=2. In case of a probe problem, the analog output will be forced to its minimum possible value (e.g., 0V or 4mA).
-
Page 16: Typical Temperature Reading Sequence
“y ”, with the FOB104 thermometer, will return: CH1: power:2.61, lamp attenuation: 250, CCD time: 50ms (fixed)<CR> CH2: power:2.51, lamp attenuation: 250, CCD time: 50ms (fixed)<CR> CH3: power:2.38, lamp attenuation: 125, CCD time: 50ms (fixed)<CR> CH4: power:1.09*, lamp attenuation: 125, CCD time: 50ms (fixed)<CR> *: 0.3 to 1.1 indicates that no probe is detected for this channel. -
Page 17: Error Codes
Display Analog Out Description Err2 Err2 Internal memory checksum error. Memory corruption. Contact Omega. “- - . -” “- - - - -” Hi-Lo, 0.5 Hz* Temperature out of maximum instrument limits or no signal Err5 Argument out of range... -
Page 18: Fob100-Soft Software Package
7.1 Getting started with FOB100-SOFT FOB100-SOFT was designed to acquire temperature readings from all models of the Omega FOB100 thermometer family. This versatile software package is designed to work with Microsoft Windows operating system; to fully exploit the capabilities of FOB100-SOFT, it is recommended to use it in conjunction to commercial spreadsheet software, such as Microsoft Excel. -
Page 19: Working With The Configuration Window
FOB100-SOFT starts with the “Acquisition” window active, as shown in the figure above. To switch to the “System Configuration” window, you need to click on one of the instrument names that have been detected; for example, by clicking on “Omega FOB”, you will get the following window:... - Page 20 For each instrument, this configuration window gives some information about this particular information and allows you to set some parameters. The top portion of the window gives information about the specifics of the thermometer, such as: COM Port number • Serial Number •...
-
Page 21: Acquiring And Viewing Temperature Data
Warning: Doing a temperature offset adjustment on a channel will alter its reading. In effect, it alters the : Doing a temperature offset adjustment on a channel will alter its reading. In effect, it alters the : Doing a temperature offset adjustment on a channel will alter its reading. In effect, it alters the thermometer own calibration. - Page 22 To start acquiring data, click the “START” button. Conversely, to stop the acquisition, click the • “STOP” button. When subsequently trying to opening the *.tem file, it is possible that you may get the following message: Select “Select the program from a list”, and click OK. In the next window, you should instruct Windows to always open this type of file with Microsoft Excel.
-
Page 23: Viewing Temperature Data
When logging temperatures for a very long time, one needs to note that a standard Excel sheet is limited to 65535 lines. If this limit is reached (65000 lines), the logging process will close the current data-logging file, and will open a new one, with the same name but with “_1” appended to the file name, and so on (“_2” …), until the application is stopped or your disk becomes full. - Page 24 Adjust the “Refresh Rate” (minimum is 0.2 sec) and Min / Max to suit your viewing needs. Note that the setting of curve colors and other parameters must be done in the “System Configuration” window pane. Up to 64 trends can be displayed. 7.3.2.2 Displaying analog thermometers Click the “Thermo”...
-
Page 25: The Fob100 Console
The console, which can be invoked through the Window and then Open Console from FOB100-SOFT main window menu bar, is useful to manage each Omega thermometer in details. Take note that the console can only be open when no temperature acquisition is taking place. It can be useful also to understand problems and malfunctions that a module may exhibit. -
Page 26: Console Help Menu
Before sending commands and receiving information from a specific module, it is necessary to select the instrument you want to interrogate. Please note that only ONE instrument can be selected at a time; if the same command is to be sent to all thermometers, then, it is necessary to repeat the command for each individual module. -
Page 27: The Window Menu
7.5.2.1 Open Console Open Console can be very useful for developers and other users who want to interrogate the “internal” parameters of an Omega thermometer. It should be used only by experienced users. 7.5.2.2 View Trends Select this menu item to open a window that gives you a graphical representation of your temperature readings, as a function of time. - Page 28 Blank.
- Page 29 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
