QUICK START GUIDE
DVD Storage
S-DVD-100
Thank you for purchasing this OLYMPUS DVD
Storage S-DVD-100.
This guide contains instructions for basic
operations to use the storage immediately
after purchase. For details on operations and
handling of CD-ROM, refer to the supplied
user's manual.
For inquiries, contact the OLYMPUS service
center on the back cover of the user's manual.

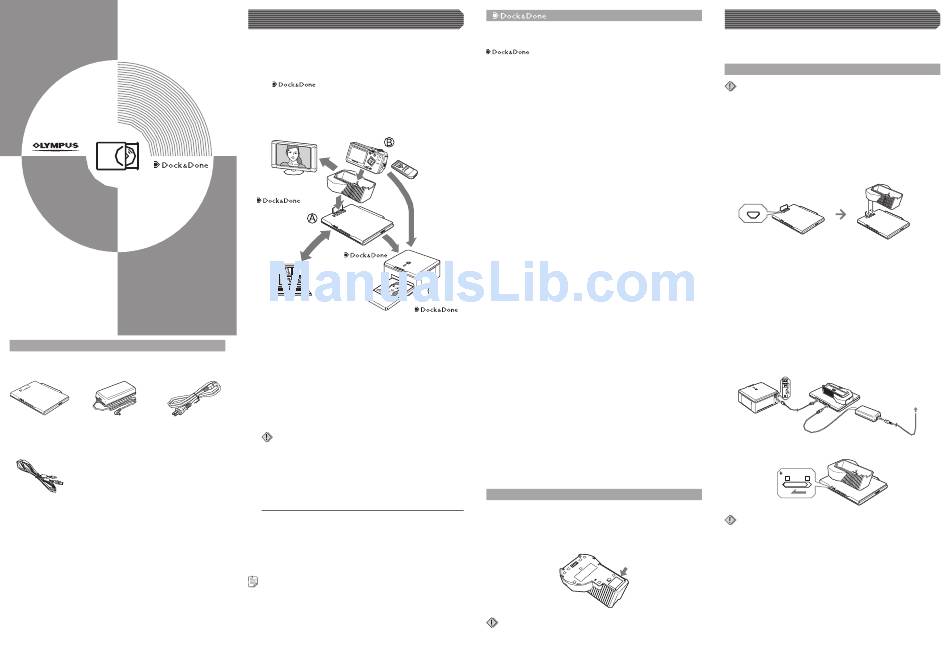

Checking the contents
Unit AC adapter Power cord *
USB cable • CD-ROM
(OLYMPUS Master, B's CLiP6)
• USER'S MANUAL
• QUICK START GUIDE (this guide)
• Warranty card
• Tape sheet Pad
* The shape of the plug differs from country to country.
User registration
To stay informed of important updates and news regarding your Olympus
product, it is recommended to register your purchase. You can register by
the following way:
• Register online
Install the OLYMPUS Master software from the supplied CD-ROM.
When restarting your computer after installation, the registration screen
appears.
Your new life of photography has begun.
With the advent of digital photography, people are taking more pictures,
but many of those pictures just wind up sitting in a folder on some
computer hard disk drive. All this is about to change now that Olympus has
come up with a new way to let users truly integrate digital photography
into their daily lives: "Dock&Done."
What is ?
Dock&Done is a total system that puts personal imaging into a single
process. For example, by simply docking the digital camera on the cradle,
new pictures are saved, photo printing is prepared, and the camera's
batteries are recharged.
Viewing on TV
Digital camera*
Remote(RM-100)*
TV B B
Cradle*
A A
storing
Printing from
the camera
Unit
Editing pictures
and making an Digital Photo
Connecting by Printer*
album by PC
cable KP16*
Connecting
by USB cable
PC
Print directly by
* Sold separately
A Dock&Done-compatible DVD storage unit (S-DVD-100)
This unit is compatible with Dock&Done 2.0.
Image fi les can be stored and played back easily by docking the
Dock&Done-compatible digital camera. The camera battery will be
recharged at the same time.
B Dock&Done-compatible digital camera
By setting the camera on the cradle when used in combination with the
Dock&Done-compatible storage, storing and playing back images and
battery charging can be done with ease.
Note
Before using the unit, upgrade your IR-500 fi rmware to be compatible with
Dock&Done 2.0. For details on upgrading, refer to the Olympus website
indicated on the back cover of the user's manual.
C Dock&Done-compatible digital photo printer
By connecting to the Dock&Done-compatible storage with the
Dock&Done cable KP16, storing images and photo printing can be
done with ease.
PC
By connecting your PC to the Dock&Done-compatible storage, you can
store pictures to your PC for organizing and editing.
TV
The image fi les inside the camera can be displayed here instead of on
the LCD monitor in the Dock&Done-compatible digital camera.
Tip
Availability of these models may vary from country to country.
mode and PC mode
The unit supports the Dock&Done mode and the PC mode. The available
functions vary depending on the selected mode.
mode
By docking the cradle of the Dock&Done-compatible digital camera (IR-300,
etc.) onto the unit, you can easily dock the digital camera onto the cradle to
store images and recharge the camera. Moreover, by connecting a printer (P-
S100 etc.), you can print images which have been reserved for printing.
• Docking a digital camera: When docking a Dock&Done-compatible
digital camera, you do not need to connect any cables because the cradle
of the digital camera is docked directly to the unit. Just dock the digital
camera on its cradle.
• Automatic saving of image fi les: By simply connecting a Dock&Done-
compatible digital camera to the unit, image fi les contained in the digital
camera can be automatically stored to recordable DVDs and CDs*.
As only new image fi les are stored, images stored on the DVDs or CDs*
will not be duplicated.
• You can easily copy image fi les onto a disk to share them with your
friends: Just set the digital camera to "CREATE SHARE DISK" mode and
connect to the cradle. You can copy image fi les in the digital camera and
fi nalize them on a disk. The share disks are highly compatible with other
devices and can be read on most PC CD/DVD drives, etc., so you can
easily share them with your friends.
• You can easily print image fi les: When connected to a Dock&Done-
compatible printer, you can print the image fi les in the digital camera
with a single action.
• Playing back stored image fi les: Images stored on disk can be displayed
in the LCD monitor of the Dock&Done-compatible digital camera.
PC mode
You can use the unit as an external CD/DVD drive if you connect the unit
to a PC. The unit can read from and write onto recordable DVDs and CDs*
and read DVD-ROM/CD-ROM.
• Image fi le management using OLYMPUS Master software: When the unit
is connected to a PC, by installing and using the supplied OLYMPUS
Master software and B's CLiP6 software, you can conveniently manage
and edit high volume image fi les stored on the disk in the unit by
using the functions of OLYMPUS Master software such as the calendar
function,etc..
• Recognition from the PC: When the unit is connected to a PC, the PC
automatically recognizes the unit and compatible printer and digital
camera connected to the unit.
* DVD-R/DVD+R/DVD-RW/DVD+RW/CD-R/CD-RW
Using the pad
To stabilize the cradle when the digital camera is detached applies the
supplied pad to the bottom of the cradle.
If adhesion fails by getting a dust and debris, peel the pad from the cradle,
and wash it in clean water.
Note
When disconnecting the digital camera from the cradle, grasp the cradle by the
hand fi rmly.
Using in the Dock&Done mode
Shoot pictures and make print reservations with your Dock&Done-
compatible digital camera in advance. For details on using the digital
camera, refer to the advanced manual supplied with the digital camera.
Preparing for Dock&Done mode
Note
Make sure the power of the unit is off before connecting with other components
or AC adapter.
The digital camera IR-300 and the printer P-S100 are used for the following
explanations. Items displayed on the camera monitor, the function, the
shape of the body and cradle differ depending on the digital camera.
a Press the PUSH button to open the docking connector
cover, and dock the cradle of the Dock&Done-compatible
digital camera onto the unit.
PUSH
b Connect a Dock&Done printer and the unit using the
Dock&Done cable KP16, and connect the AC adapter and
power cord to the unit.
Insert the power
cord plug into the
A
power outlet.
B
C
D
c Set the Dock&Done mode/PC mode switch to "QDOCK."
DOCK PC
Notes
• When connecting to the PC, make sure that the power of the unit is off. Then
set the Dock&Done /PC mode switch as follows.
A Remove the disk.
B Perform the PC hardware removal procedure.
C Turn off the unit.
D Set the Dock&Done mode/PC mode switch to "QDock."
• While the unit is processing in PC mode, do not change the setting of the
Dock&Done/PC mode switch. This may cause data loss while recording from
your PC to the unit, or a system error on your PC rendering it inoperable. In
this case, shut down your PC, power off the unit, and restart your PC and
then the unit.
E
