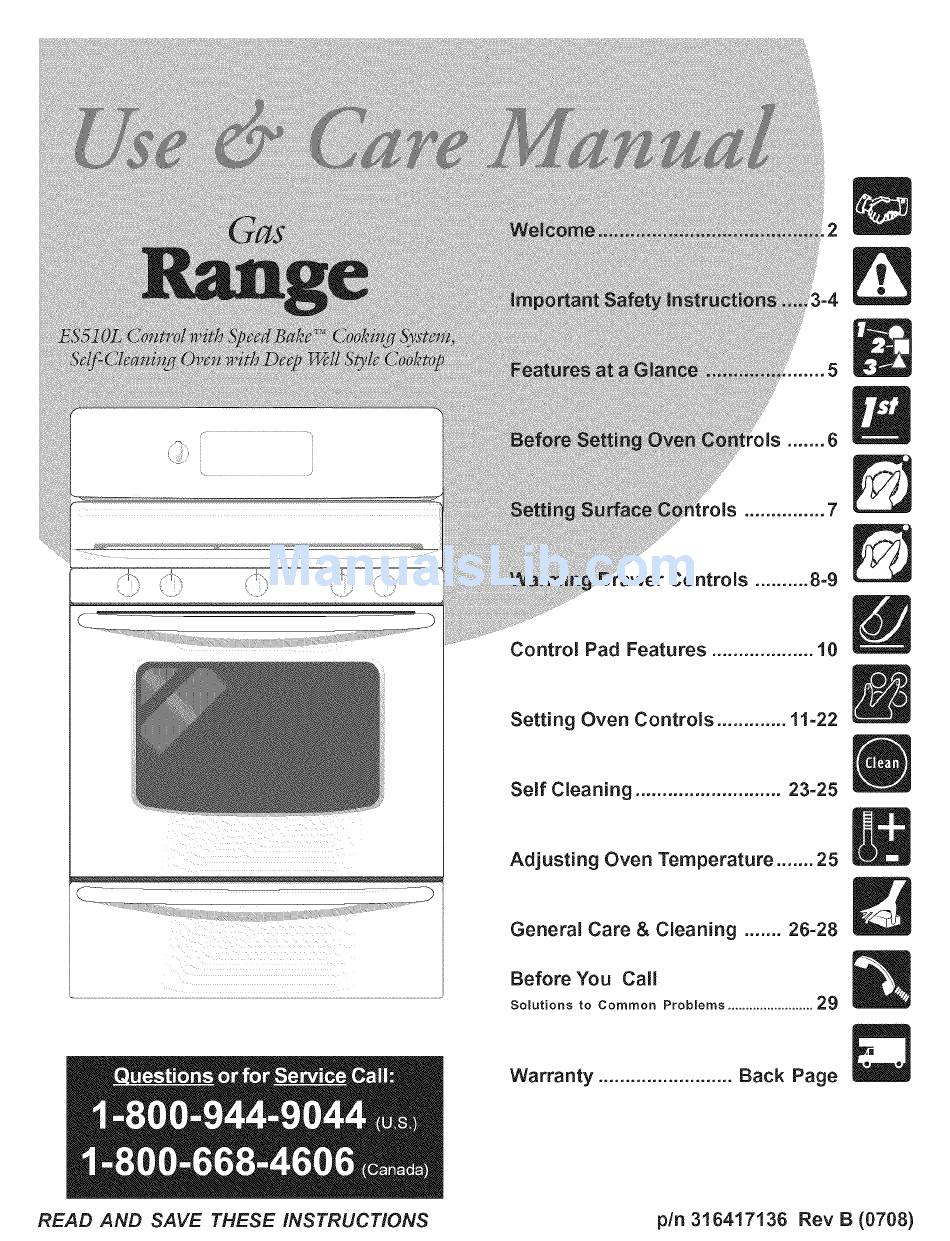

Page 1: Table Of Contents
Controls ..8-9 Control Pad Features ....Setting Oven Controls ..... 1%22 Self Cleaning ......23=25 Adjusting Oven Temperature ..25 General Care & Cleaning ..26-28 Before You Call Solutions Common Problems ......Warranty ......Back Page READ AND SAVE THESE INSTRUCTIONS pin 316417136...
Page 2 Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. We know you'll enjoy your new range and Thank You for choosing our product..
Page 3 Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given This symbol will help alert you to situations that may cause serl ous bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
Page 4 * DoNot L eave Children Alone--Children should not be left * Glazed Cooking Utensils--Only certain types of glass, glass/ ceramic, ceramic, earthenware, or other glazed utensils are alone or unattended in the area where appliance is in use. suitable for cooktop service without breaking due to the They should never be allowed to sit or stand on any part of the sudden change in temperature.
Page 5 ° Your Gas Range Features Include: Electronic Oven Control with Kitchen Timer..Warming Drawer Control & Indicator Light (some models). Left Front Burner Valve & Knob. Left Rear Burner Valve & Knob. Center Burner Valve & Knob (some models). Right Rear Burner Valve &...
Page 6 OVEN VENT Oven Vent Location The oven vent is located beJow the backguard (See Fig. 1). When the oven is on, warm air is released through this vent. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT BLOCKTHE VENT.
Page 7 Setting Surface controls Do not place plastic Your range may be equipped with different sized surface burners. The ability to heat items such as salt and pepper food quicker and in larger volumes increases as the burner size increases. The shakers, spoon holders or plastic simmer burner (some models) is best used for simmering delicate food items wrappings...
Page 8: Controls
(some models) Arranging Warming Drawer Rack Positions The rack can be used in 2 ways: Always use pot holders or in the upright position to allow low profile food items to be placed both oven mitts when removing food from the under and on top of the rack (for example, rolls or biscuits on top of the rack Warming Drawer as cookware and plates and a casserole dish underneath).
Page 9 Setting Warming Drawer Controls Removing & Replacing the Warming Drawer Pull up with finger Electrical Shock Hazard can occur and result in serious injury or death, Disconnect appliance from electric power before cleaning and servicing theWarming Drawer, Left Glide To Remove and Replace the Warming Drawer...
Page 10 READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Manual. OVEN LIGHT--Use TIMERON/...
Page 11 • "Even-Cook- Convection Oven Speed Oven Timer clean light On/Off Clean Bake Start Broil Bake Keep time time warm Ma×× Clock Speed Favorite Clear clean Lock bake setting Controls Setting the Clock The CLOCK @ pad is used to set the clock. The clock may be set for 12 or 24 hour time of day operation.
Page 12: Setting Oven Controls
Setting Oven Controls Setting Continuous Bake or 12 Hour Energy Saving The TIMER ON/OFF _'?_ and CLEAN _e,n_pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes.
Page 13 ,Oven cont, Setting Oven Lockout Feature The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the Warming Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven light.
Page 14 Setting Oven Controls • , Even.Cook" Convection Oven Speed Oven rimer clean light OnlOff Clean Bake Start Broil Bake Keep time time warm Maxx Clock Speed Favorite Clear /Off clean Lock bake setting Controls Setting Silent Control Operation The START TIME _and CLEAN _ pads control the Silent Control operation feature.
Page 15 Even.Cook- Convection Oven Speed Ove_ Timer clean light OnJOff Clean Bake Start Broil Bake Keep time time warm Maxx Clock Speed Favorite Clear clear Lock bake setting /Off Conlrots Setting Bake The BAKE _ pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).
Page 16 Setting Timed Bake The BAKE , and BAKE TIME _ pads control the Timed Bake feature. The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the desired amount of time you selected. INSTRUCTIONS PRESS DISPLAY To program the oven to begin...
Page 17 Setting Delayed Timed Bake The BAKE , BAKE TiME _ and START TiME _ pads control the Delayed Timed Bake feature. The automatic timer of the Delayed Timed Bake will turn the oven ON and OFF at the time you select in advance. iNSTRUCTiONS PRESS DISPLAY...
Page 18 Setting Broil pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature between 400°F and 550°F.
Page 19 --Some foods may cook up to 25 to 30% faster, saving time and --Multiple rack baking. Benefits of Speed Bake Cooking System: energy. --No special pans or bakeware needed. Setting Speed Bake The Speed Bake ) pad controls the Speed Bake feature.
Page 20 Using the Favorite Setting Feature FAVORITE SETTING pad is used to record and recall your favorite recipe settings. This feature may store and recall from 1 to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake. This feature will not work with any other function including a Delayed Timed Bake setting.
Page 21 Setting Setting the Sabbath Feature (for use on the Jewish Sabbath & Holidays) "-].K.K_" The _ BAKE TiME and _ START TiME pads are used to set the Sabbath feature. The Sabbath feature may only be used with the l pad.
Page 22 Setting Oven Controls Setting the Sabbath Feature (cont'd) it is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than the oven control can accept, if the oven temperature is set incorrectly, the oven temperature will default to 170°F or 550°F.
Page 23: Self Cleaning
Self-Cleaning Self=Cleaning Oven A Self-Cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth. Adhere to the following cleaning precautions: During the Self-Cleaning •...
Page 24 f2-'X The SPEED CLEAN _, CLEAN _ & MAXX CLEAN _ pads are used to start a Self-Cleaning cycle. When used with START TIME @ pad, a delayed Self-Cleaning cycle may also be programmed. This feature allows for any Self-Cleaning cycle times from 2 hours (using Speed Clean), 3 hours (using Clean) to 4 hours (using Maxx Clean).
Page 25 i ¸ Self=Cleani'n iNSTRUCTiONS PRESS DISPLAY When the Self=Clean cycle is done: The time of day,"DOOR LOCKED" and "CLEAN" icon will remain in the display. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" icon is no longer displayed, the oven door can then be opened.
Page 26 (Cleaning Table) Surfaces How to Clean Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution Plastic Body Parts & of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Control Knobs Glass cleaners...
Page 27 Care&Cleaning Cleaning the Contoured Cooktop Well Areas, Burner Cap, Burner Head Burner Drip Pans (some models) The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: THE COOKTOP IS NOT REMOVABLE.
Page 28 Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Door Hinge To Remove Oven Door: locations with oven door Open oven door completely (horizontal with floor - See Fig. 1). fully open Pull the door hinge locks on both left and right door hinges down from the...
Page 29: General Care & Cleaning
Before You Call So .t onsto Commo"P ob ms Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance.
Page 30: Warranty
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,...
