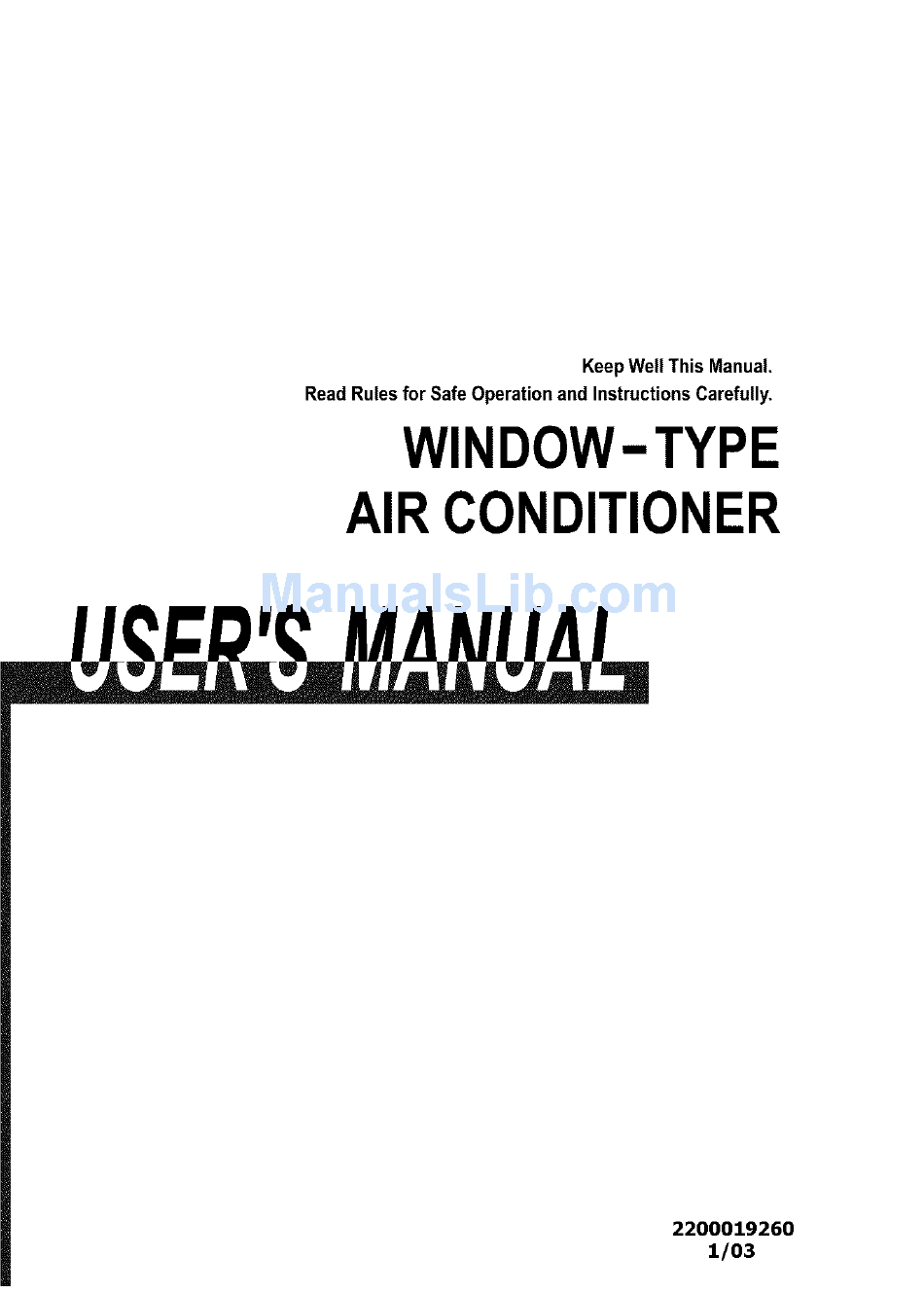

- Page 1 Keep Well This Manual. Read Rules for Safe Operation and Instructions Carefully. WINDOW-TYPE AIR CONDITIONER 2200019260 11o3...
- Page 2 1. ELECTRICAL SAFETY RULES .............. 2. UNIT PARTS IDENTIFICATION .............. 3. POINTS FOR ATTENTION WHEN OPERATING ........4. OPERATION PANEL(Cooling only type) ............. OPERATION INSTRUCTION ..............5. CAREAND MAINTENANCE ..............6. WINDOW INSTALLATION INSTRUCTIONS ......... 7. TROUBLESHOOTING TIPS ..............
- Page 3 All wiring must comply with local and national electrical codes and be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician. Never insert your fingers or any foreign objects into the air outlet. Take special care to warn children of these dangers.
- Page 4 1. Front panel 2. Air filter 3. Frame 4. Cabinet 5. Air inlet grille (outdoor side) 6. Air outlet grille 7. Operation panel 8. Power supply and plug Fig. 1...
- Page 5 1. During the course of operating, if you have turned off the unit or changed operation mode from COOLING MODE to FAN MODE, be sure to keep that state for at least three minutes before switching to COOLING MODE again. 2.
- Page 6 THERMOSTAT SELECTOR _o,, CC_L WAITTHREE MINUTES BEFORE RESTARTING Fig. 2 1. Pull the top of the operation cover to open it. 2. Close the operation cover and press the top until it snaps into the locked position. Don't press or swing the opened operation cover, Fig.
- Page 7 imlmmr ttm To set desired cooling temperature, simply rotate the SELECTOR knob to the appropriate setting. "HIGH FAN" will circulate the air at a maximum SELECTOR speed without cooling. "MED FAN" will circulate the air at a middle speed without cooling. "HIGH FAN"...
- Page 8 During the cooling operation of the unit, when the thermostat knob is rotated counterclockwise, allow at least three minutes before turning back the knob to the "COOLER" direction. Otherwise the fuse may blow due to an overload of the unit. Horizontal air flow adjustment (manually) Move the "T"...
- Page 9 This is usually kept in the closed position and use only when clearing smoke and/or odors from the room. When the ventilation switch is pushed to "CLOSE", the fresh air ventilation is closed; when the ventilation switch is pushed to "VENT", the fresh air ventilation is opened. •...
- Page 10 If the air filter becomes clogged with dust, air flow is obstructed and reduces cooling efficiency. The air filter should be cleaned every two weeks. Fig. 7 1. Removal of Air Filter 1) Press "PUSH" on the bottom corners of the inlet grill. See Fig. 7 2) Pull the air filter down to remove.
- Page 11 • Dust may accumulate on the front panel, use soft wet cloth with a neutral cleaning agent to wipe it. • Never use water over 50°C, alcohol, gasoline, acid, solvent or brush to clean the front panel as this will damage the surface of the part. OPERATING _f_____-;...
- Page 12 5. Window sash seat 6. Top mounting rail seal strip 7. Foam top window gasket Top mounting rail 3. Accordion panel 13. Connection 1. Sill suppo_ 2. Bottom mounting rail 8. Type A (4) 9. Type B (9) 10. Type C (8) 11.
- Page 13 A i=o, t,'-- "H'l 5000 and 6000 BTU models • These instructions are for a standard double-hung window. You will need to modify them for other types of windows. • The conditioner can be installed without the accordion panels if needed to 14"...
- Page 14 B. Remove the 2 screws at the bottom, and remove the frame from the cabinet. Note: No need to remove the selector and thermostat knobs. C. Remove the 2 screws on each side of the case. Keep these for later use. D.
- Page 15 D. Install the Accordion panels (_ Attach the two Connection Bar to Connect the shutter with the Connection the case. Bar. Shu_er Fig. 19 Fig. 18 (_ Insert the shutters into its frame bar. Clip the shutters onto the frame bars And install the upper and lower frame with the clips.
- Page 16 D. Loosely assemble the sill supports. Indoor Outdoor \Nut Fig. 23 E. Select the position that will place the sill supports near the outermost point on the sill. Attach the sill supports to the case track hole in relation to the selected position using 4 type C screws in each supports.
- Page 17 • The installation process is the reverse of the removal process on page 11 and 12. See Fig 11. Fig. 28 Save time and money! Review the chart below first and you may not need to call for service. Possible Causes What To Do...
- Page 18 Possible Causes What To Do Air conditioner Airflow is restricted. • Make sure there are no curtains, blinds or does not cool fumiture blocking the front of the air conditione_ as it should The temp control may • On models with touch pads: In COOL mode, not be set correctly, press the DECREASEYpad.
- Page 19 CS45-U 2200019260...
