Frigidaire FAM156R1A2 Use & Care Manual page 9

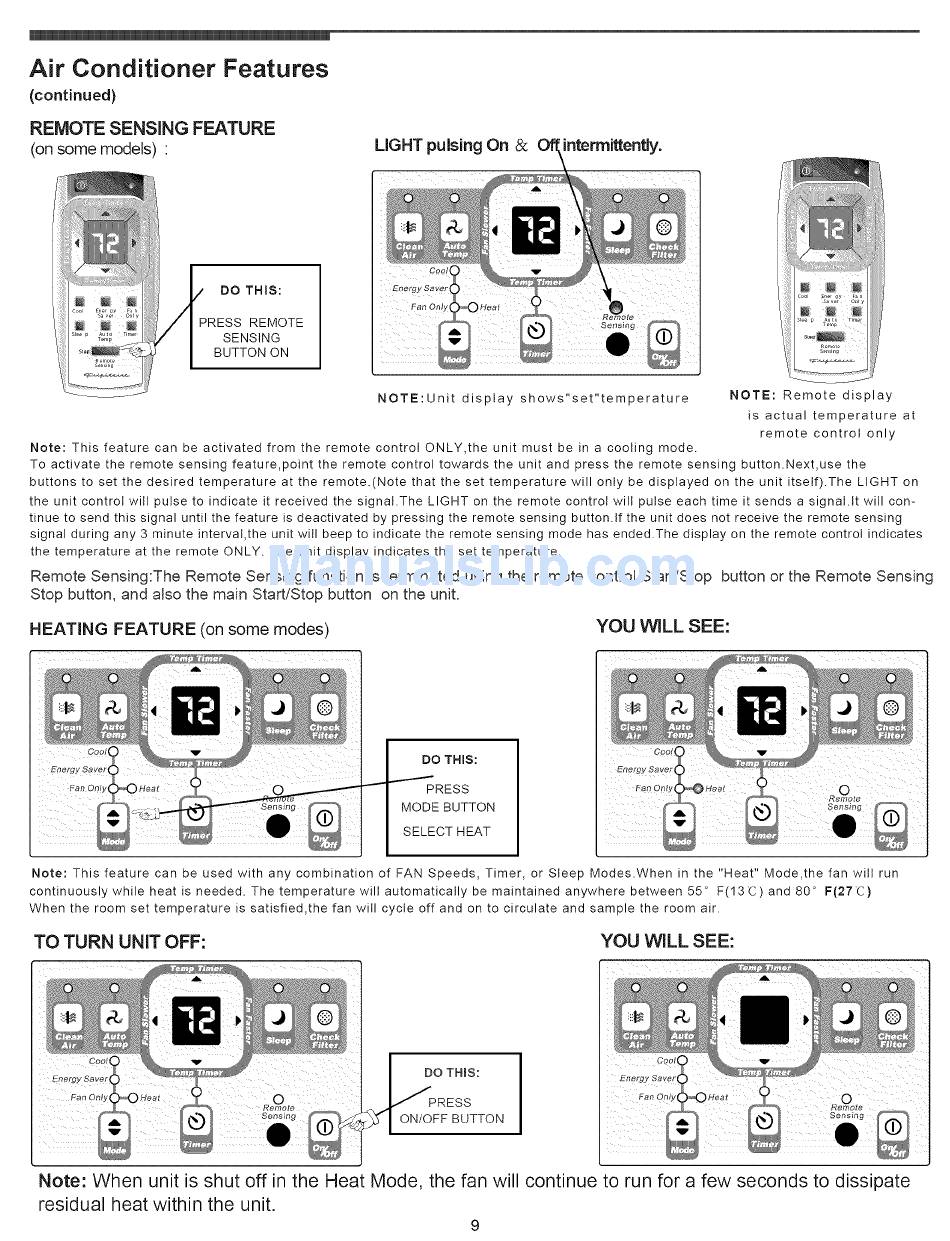

Air Conditioner Features
(continued)
REMOTE SENSING FEATURE
(on some models) •
DO THIS:
PRESS REMOTE
SENSING
BUTTON ON
LIGHT pulsing On & intermittently.
NOTE:Unit display shows"set"temperature
NOTE: Remote display
is actual temperature at
remote control only
Note: This feature can be activated from the remote control ONLY,the unit must be in a cooling mode.
To activate the remote sensing feature,point the remote control towards the unit and press the remote sensing buttonNext,use the
buttons to set the desired temperature at the remote.(Note that the set temperature will only be displayed on the unit itsetf).The LIGHT on
the unit control wilt pulse to indicate it received the signal.The LIGHT on the remote control will pulse each time it sends a signal.It will con-
tinue to send this signal until the feature is deactivated by pressing the remote sensing button.If the unit does not receive the remote sensing
signal during any 3 minute interval,the unit will beep to indicate the remote sensing mode has ended.The display on the remote control indicates
the temperature at the remote ONLY. The unit display indicates the set temperature.
Remote Sensing:The Remote Sensing function is terminated using the remote control StartJStop button or the Remote Sensing
Stop button, and also the main Start/Stop button on the unit.
HEATING FEATURE (on some modes)
DO THIS:
PRESS
MODE BUTTON
SELECT HEAT
YOU WILL SEE:
Note: This feature can be used with any combination of FAN Speeds, Timer, or Sleep Modes.When in the "Heat" Mode,the fan wilt run
continuously while heat is needed. The temperature wilt automatically be maintained anywhere between 55 ° F(13C)and 80 ° F(27C)
When the room set temperature is satisfied,the fan will cycle off and on to circulate and sample the room air.
TO TURN UNIT OFF:
DO THIS:
ON/OFF BUTTON
YOU WILL SEE:
Note: When unit is shut off in the Heat Mode, the fan will continue to run for a few seconds to dissipate
residual heat within the unit.
9
