Door Removal - Frigidaire FRS3R5ESB0 Use & Care Manual

OR
Tools Necessary:
3/8"
Fixed
Wrench
Lower
_\ ) _ Hinge
_//.I k seerebly
N
Sockel
Wrench Sel
J

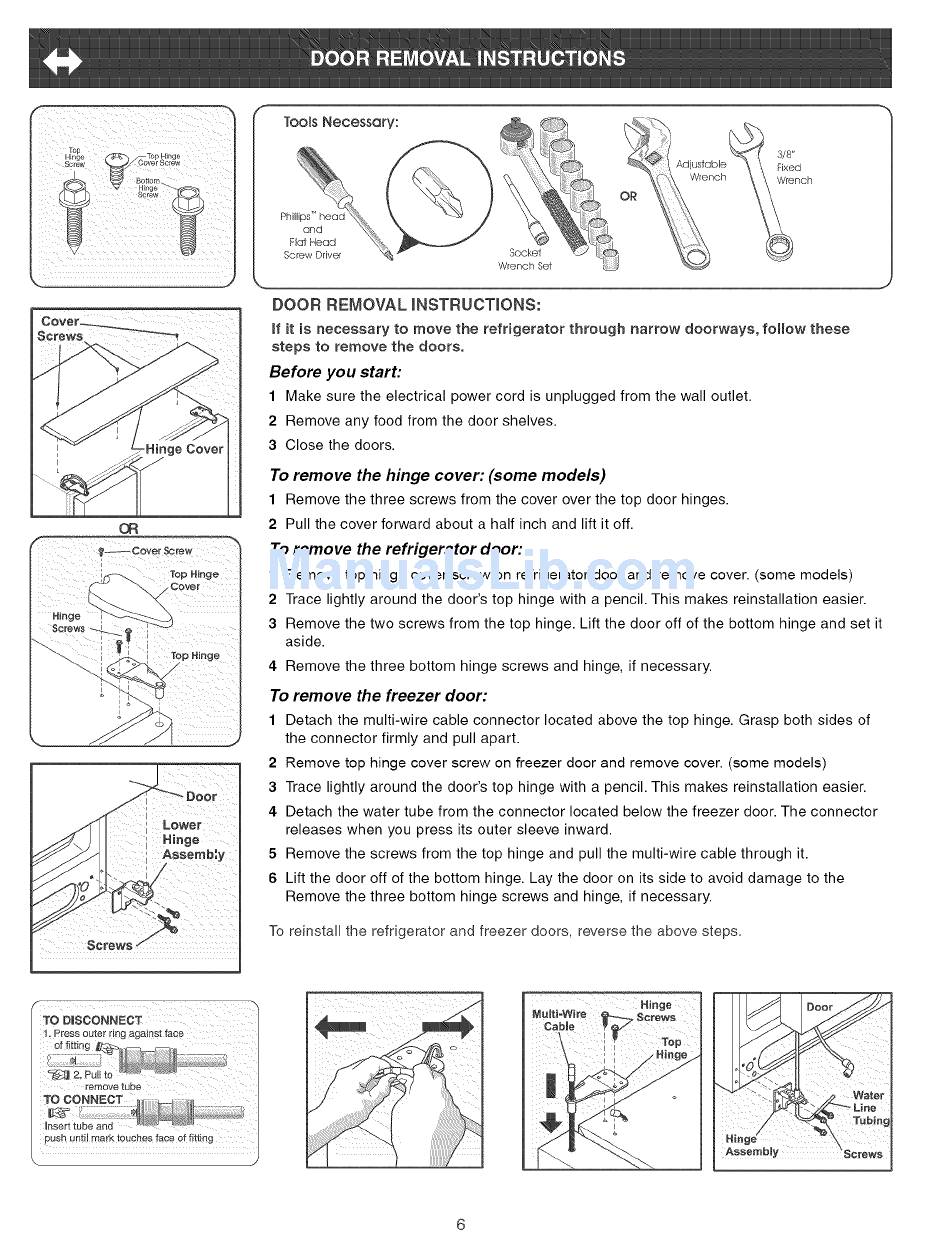

DOOR REMOVAL INSTRUCTIONS:
If it is necessary to move the refrigerator through narrow doorways, fommowthese
steps to remove the doors.
Before you start:
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Remove any food from the door shelves.
3 Close the doors.
To remove the hinge cover: (some models)
1 Remove the three screws from the cover over the top door hinges.
2 Pull the cover forward about a half inch and lift it off.
To remove the refrigerator door:
1 Remove top hinge cover screw on refrigerator door and remove cover. (some models)
2 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.
3 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it
aside.
4 Remove the three bottom hinge screws and hinge, if necessary.
To remove the freezer door:
1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides of
the connector firmly and pull apart.
2 Remove top hinge cover screw on freezer door and remove cover. (some models)
3 Trace lightly around the door's top hinge with a pencil. This makes reinstallation easier.
4 Detach the water tube from the connector located below the freezer door. The connector
releases when you press its outer sleeve inward.
5 Remove the screws from the top hinge and pull the multi-wire cable through it.
6 Lift the door off of the bottom hinge. Lay the door on its side to avoid damage to the
Remove the three bottom hinge screws and hinge, if necessary.
To reinstall the refrigerator and freezer doors, reverse the above steps_
t. Press outer ling against face
_ 2. Pull to
,ush until mark touches face et titling
m
Hinge
