Eureka Backcountry 1 Assembly Instructions

Assembly Instructions
for Backcountry 1
Component List:
1 Tent Body 1 Tent Fly 1 Tent Bag 2 Tent Poles
1 Pole Bag 1 Fly Rod 1 Set Stakes w/Bag
NOTE:
Do not drop tent bag or pole bag on its end. Do not bounce
tent bag on its end to get the tent out. These actions may
cut the shock cord and/or damage the pole ends.
Assembly:
• Unpack the tent bag. Unfold the tent and lay it out, with
the floor on the ground with a grommeted web in each
corner. Pull the tent into a rough rectangle. Do not stake
down the tent just yet; but in windy conditions, stake
down one corner that faces into the wind.
• Assemble the shockcorded tent poles and fly rod.
Carefully seat each section. Try to keep the poles from
snapping together as this can damage the ends.
• At the front of the tent body at A, slide a pole diagonally
across the tent, through the sleeves, to the opposite side
B. Follow the seam from sleeve to sleeve. Push the pole,
don't pull it. Continue with the second pole through its
sleeves from C to D. See fig.1.

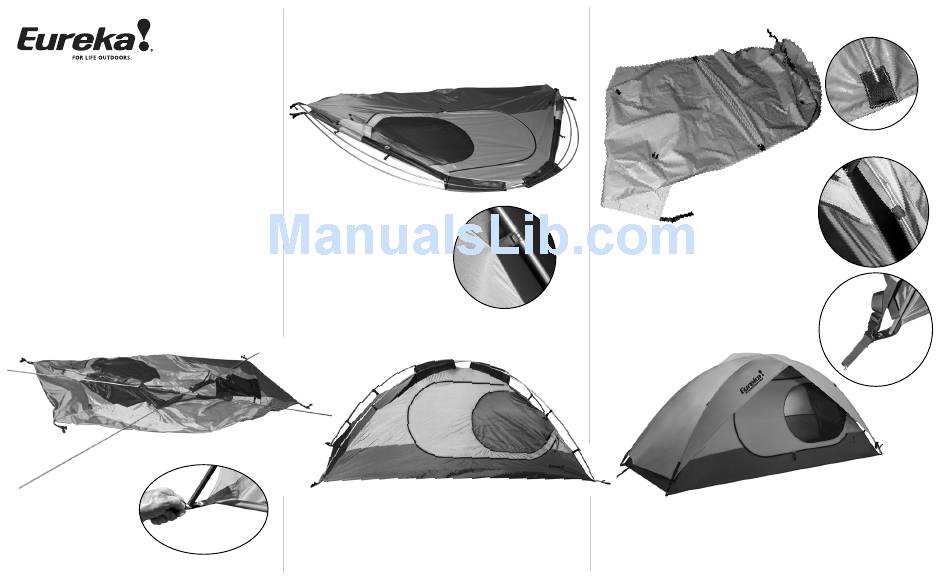

A
D
fig.1
• Insert the post end of a
pole into a grommet on
the corner stake-out
web. See fig.2.
fig.2
• At the opposite corner, grasp the web and
simultaneously push the pole to form an arc. Insert the
post end into the grommet on the corner stake-out
web. Repeat with the second pole. See fig.3.
fig.3
• Raise the poles over the tent
and place it in the desired
location.
• Working your way around the
tent, attach all the clips from
the corners of fly to the poles.
See fig.4.
• With the corner clips attached, square the tent. Use a
metal skewer to stake out each corner web.
C
See fig.5.
B
• Unroll the fly, upside down, on the ground. Locate
the web pockets in the center of the fly and insert
the assembled fly rod into these pockets.
See fig.6 & fig.7.
• Turn the fly right side up and drape it on
the tent with the Eureka! logo over the
door. Reach under the fly and wrap each
Velcro® strap around a pole. See fig.8.
fig.4
• Attach the web buckle from each corner
of the fly to its mate on the corner tent
web. Adjust the web to proper tension.
See fig.9 & fig10.
fig.5
Take down:
• Pull up stakes and open doors. Pull posts out of the grommets and
push poles out of the sleeves. Collapse the tent poles and stow.
Fold the tent and fly thirds. Roll up both towards the door and stow.
fig.6
fig.8
fig.9
fig.10
Your Tent is Ready!
fig.7
Rev. D 4-09
