Oven Light Operation
(some models):
The Bake-n-Warm
TM
Double Oven light operates with the upper
oven light and automatically turns ON when the upper oven
door is opened. If equipped, the Bake-n-Warm
TM
Double Oven
light may also be manually operated by pressing the _
pad.
To Remove
the Bake-n-
Warm
TM
Double
Oven Drawer
& Replace
the Oven Light:
1.
Beforedrawer
removal, be sure to
turn OFF the Bake-n-Warm
TM
Double Oven and let the drawer area
cool completely.
2.
Pull the drawer away from the oven.
Using a phillips-head screwdriver
remove the two d rawer screws from
the insides of the front oven drawer
compartment (See Fig. 1).
3.
With one hand hold the drawer front
in place. Use your other hand to pull
the glide away from the oven (See
Fig. 2) until the glide hook
disengages (See Fig. 3).
4.
Repeat from step 3 above for the
other side of the drawer.
5.
With BOTH glide hooks
disengaged,
carefully lift the drawer
up and away from the oven. Push
both drawer glides into lower oven
cavity.
6.
Replace the lower oven light with a
40 Watt Appliance light bulb (Refer
to Fig.5).

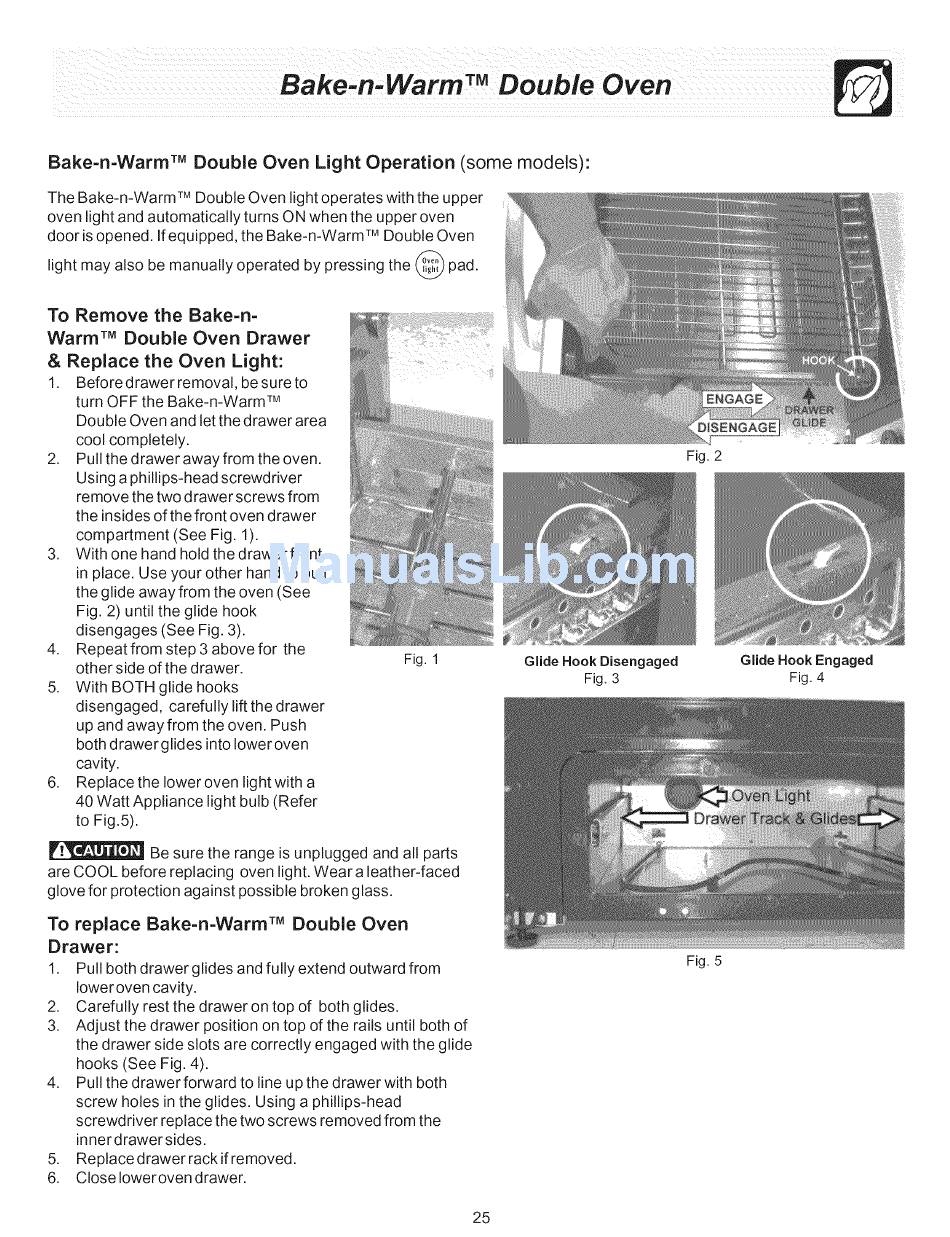

Fig. 1
Be sure the range is unplugged and all parts
are COOL before replacing oven light. Wear a leather-faced
glove for protection against possible broken glass,
To replace
Bake-n-Warm
TM
Double
Oven
Drawer:
1.
Pull both drawer glides and fully extend outward from
Ioweroven cavity.
2.
Carefully rest the drawer on top of both glides.
3.
Adjust the drawer position on top of the rails until both of
the drawer side slots are correctly engaged with the glide
hooks (See Fig. 4).
4.
Pull the drawer forward to line up the drawer with both
screw holes in the glides. Using a phillips-head
screwdriver replace the two screws removed from the
innerdrawer sides.
5.
Replace drawer rack if removed.
6.
Close loweroven drawer.
25
Glide Hook Disengaged
Fig. 3
Fig. 2
Fig. 5
Glide Hook Engaged
Fig. 4
