KNOWYOURELECTRIC DRILL

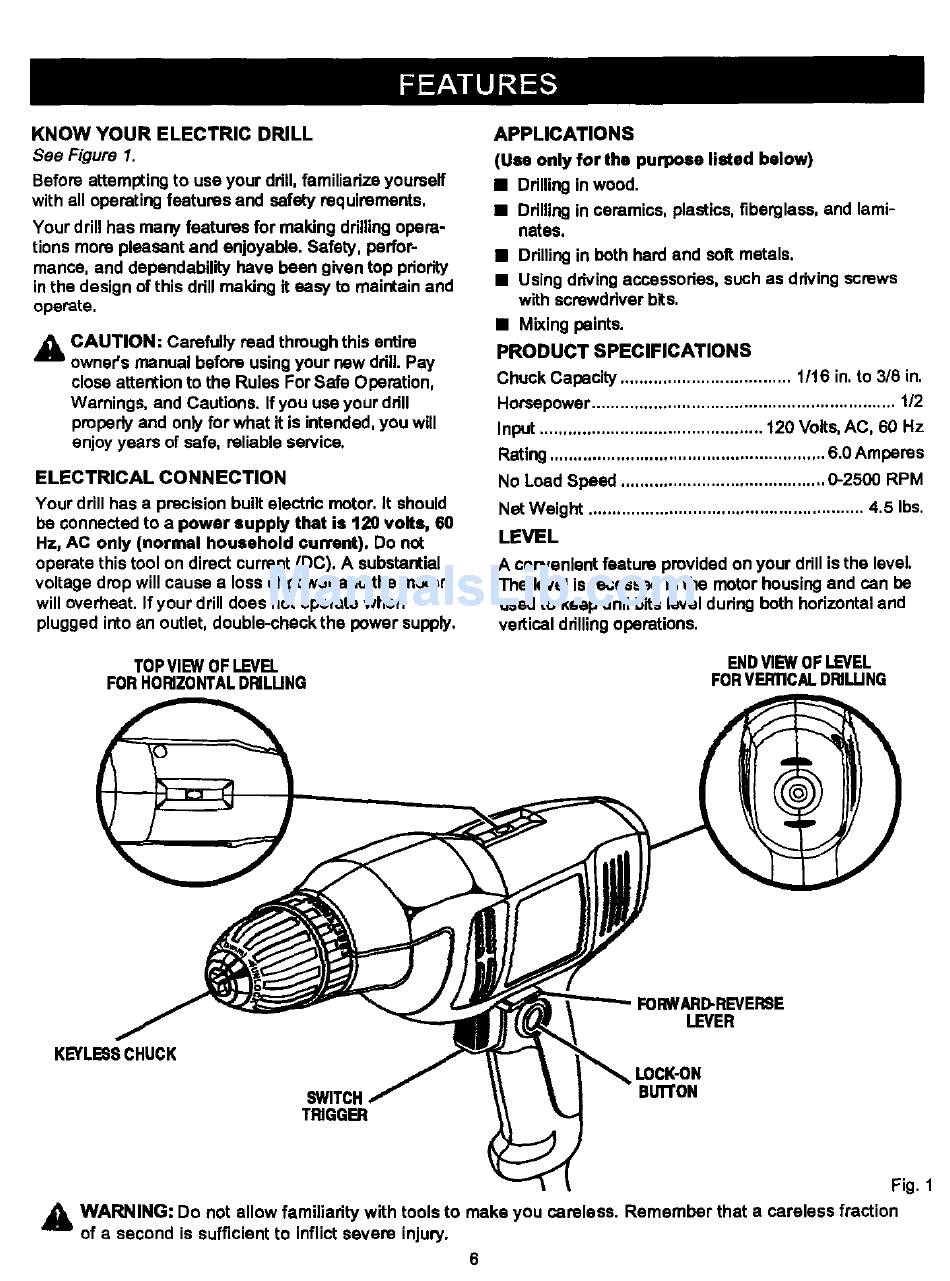

See Figure 1.
Before attempting to use your drill, familiarize yourself
with all operatingfeatures and safety requirements.
Your drillhas many features for making drillingopera-
tions more pleasant and enjoyable. Safety, perfor-
mance, and dependability have been giventop priority
in the design of this drill making it easy to maintain and
operate.
A
CAUTION: Carefully read through this entire
owner's manual before using your new ddll. Pay
close attentionto the Rules For Safe Operation,
Warnings, and Cautions. If you use your drill
pmpedy and only for what it is intended,you will
enjoy years of safe, reliableservice.
ELECTRICAL
CONNECTION
Your drill has a precisionbuilt electdc motor. It should
ha connected to a power supply that is 120 volts, 60
Hz, AC only (normal household curt'ant). Do not
operate this tool on direct current (DC). A substantial
voltage drop will cause a loss of power and the motor
will overheat. If your drill does not operate when
plugged intoan outlet, double-check the power supply.
TOPVIEWOFLEVEL
FORHORIZONTAL D RILUNG
APPLICATIONS
(Use only for the purpose listed below)
•
Drillingin wood.
•
Drillingin ceramics, plastics,fiberglass, and lami-
nates.
•
Drillingin bothhard and soR metals.
•
Using driving accessories, such as driving screws
with screwdriverbits.
•
Mixingpaints.
PRODUCT SPECIFICATIONS
Chuck Capacity .................................... 1/16 in,to 3/8 in.
Horsepower................................................................ t/2
Input ............................................... 120 Volts,AC, 60 Hz
Rating.......................................................... 6.0 Amperes
No Load Speed ........................................... 0-2500 RPM
Nd_Weight .......................................................... 4.5 Ibs.
LEVEL
A convenientfeature providedon your drillis the level.
The level is recessed in the motor housingand can he
used to keep drill bits level during both horizontaland
vertical ddllingoperations.
ENDVIEWOF LEVEL
FORVER11CAL D RlUJNG
KEYLESS CHUCK
SWITCH
TRIGGER
FORWARD-REVERSE
LEVER
LOCK-ON
BUTTON
Fig. 1
WARNING: Do not allow familiarity with tools to make you careless. Remember that a careless fraction
of a second is sufficient to Inflict severe injury.
