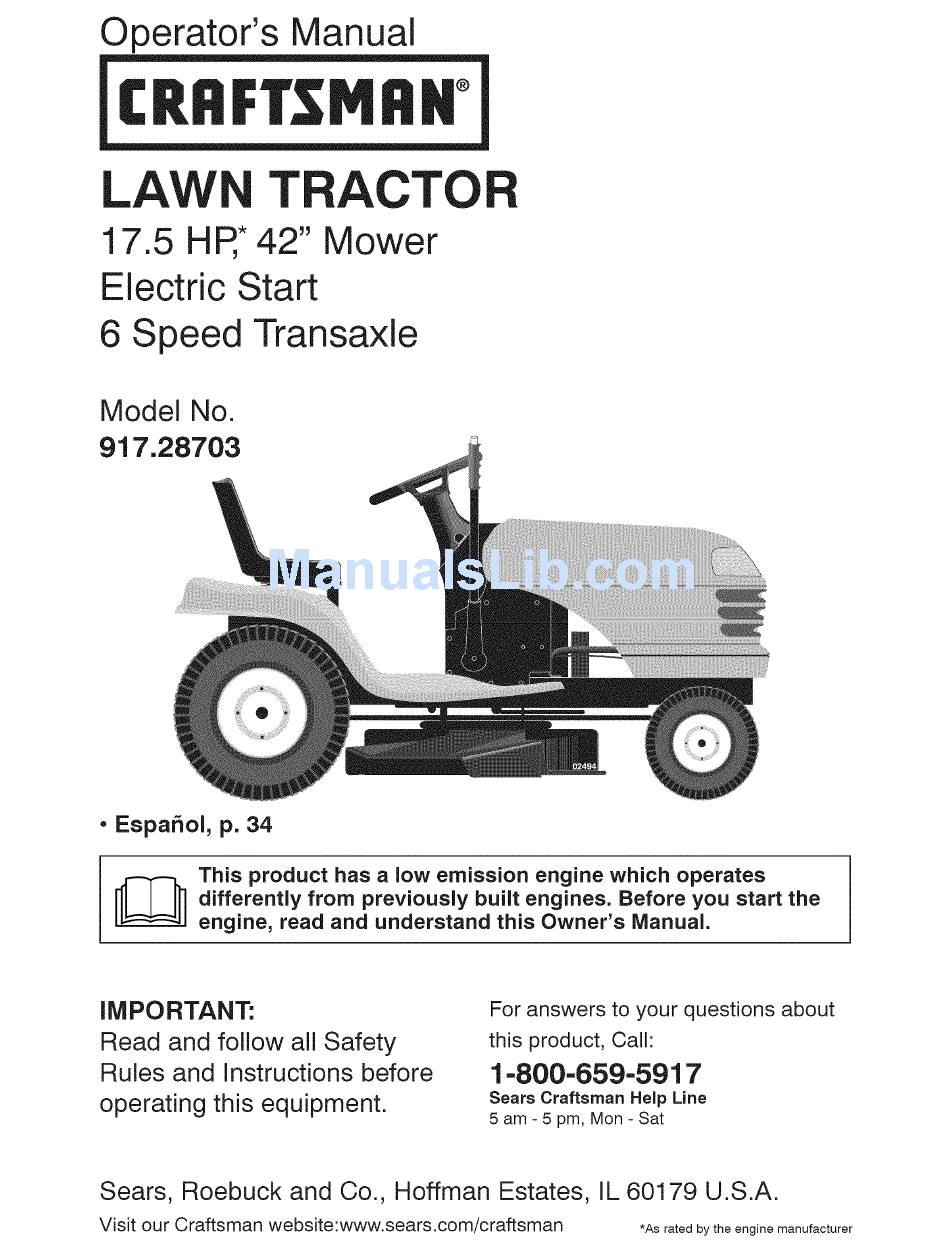

Operator's
Manual
CRRI:T 14RH °
LAW
TRACTO
17.5 HP,*42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.28703
• EspaSol,
p. 34
This product has a low emission
engine
which
operates
differently
from previously
built engines.
Before
you start the
engine,
read and understand
this Owner's
Manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions
before
operating
this equipment.
For answers to your questions
about
this product, Call:
1-800-659-5917
Sears Craftsman
Help Line
5 am - 5 pm, Mon- Sat
Sears, Roebuck
and Co., Hoffman
Estates, IL 60179 U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman
*As rated
by the engine
manufacturer
