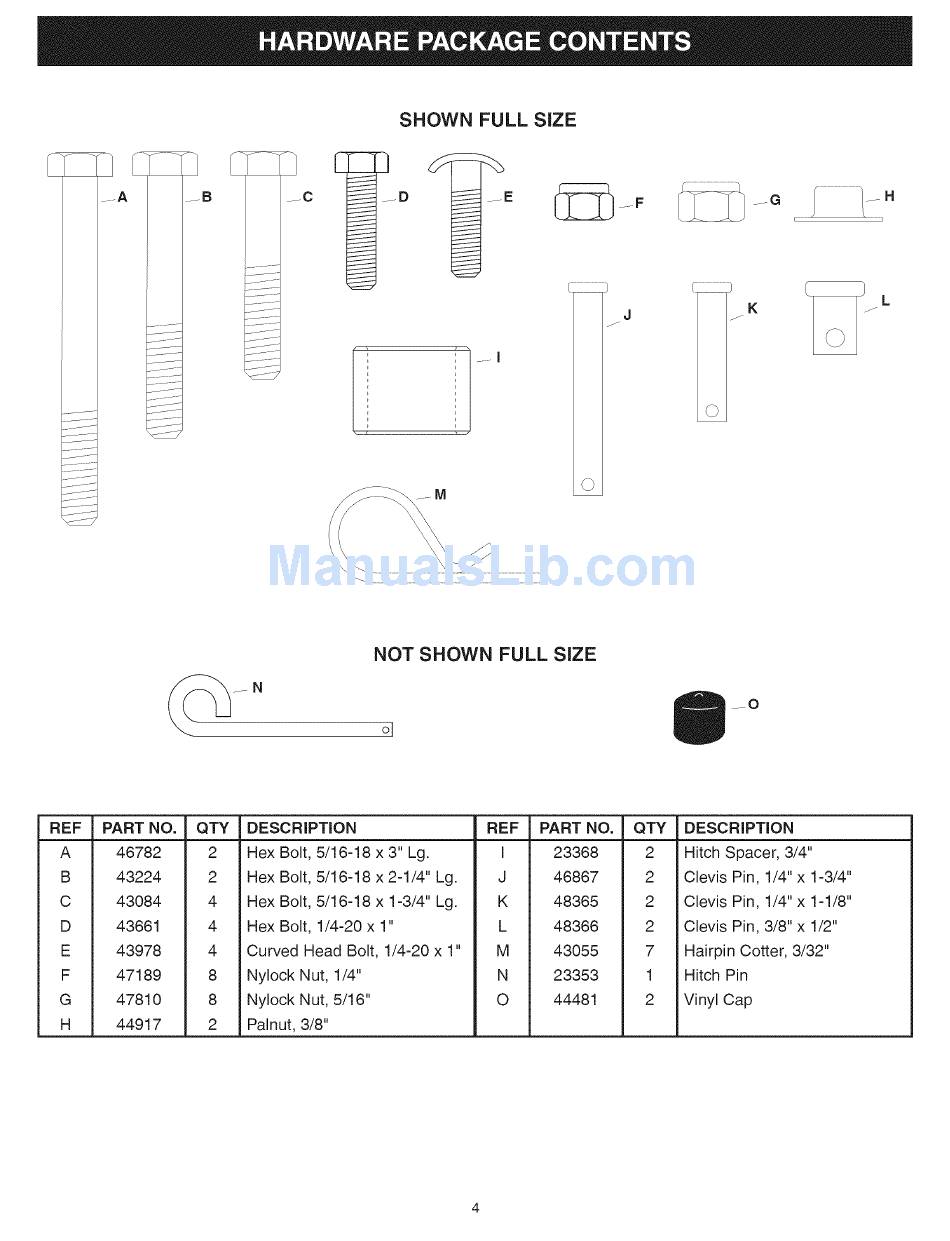

Hardware Package Contents; Ref Part No; Qty Description Ref Part No; Qty Description - Craftsman 486.242223 Owner's Manual

...... A
SHOWN FULL SIZE
.... C _D E _ ...... F G
J
J
C ..........
©
K
NOT SHOWN FULL SIZE
ol
.... O
REF
A
B
C
D
E
F
G
H
PART NO.
46782
43224
43084
43661
43978
47189
47810
44917
QTY
2
2
4
4
4
8
8
2
DESCRIPTION REF
Hex Bolt, 5/16-18 x 3" Lg. I
Hex Bolt, 5/16-18 x 2-1/4" Lg. J
Hex Bolt, 5/16-18 x 1-3/4" Lg. K
Hex Bolt, 1/4-20 x 1" L
Curved Head Bolt, 1/4-20 x 1" M
Nylock Nut, 1/4" N
Nylock Nut, 5/16" O
Palnut, 3/8"
PART NO.
23368
46867
48365
48366
43055
23353
44481
QTY
2
2
2
2
7
1
2
DESCRIPTION
Hitch Spacer, 3/4"
Clevis Pin, 1/4" x 1-3/4"
Clevis Pin, 1/4"x 1-1/8"
Clevis Pin, 3/8"x 1/2"
Hairpin Cotter, 3/32"
Hitch Pin
Vinyl Cap
