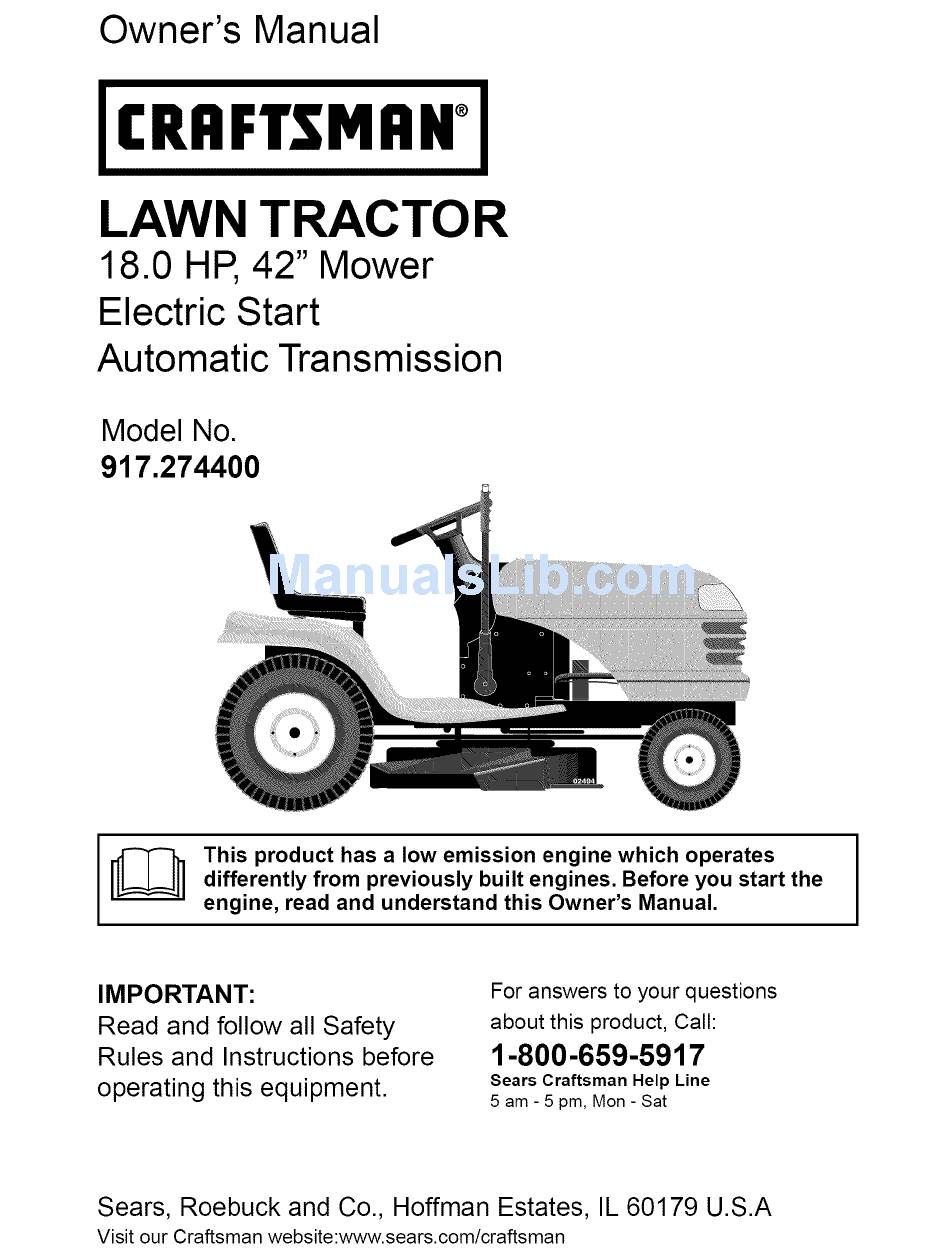

Owner's Manual
ICRRFTSMIIH°I
LAWN TRACTOR
18.0 HP, 42" Mower
Electric Start
Automatic Transmission
Model No.
917.274400
[_
his product has a low emission
engine which operates
differently from previously built engines. Before you start the
engine, read and understand
this Owner's Manual,
IMPORTANT:
Read and follow all Safety
Rules and Instructions
before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
Visit our Craftsman
website:www.sears.com/craftsman
Advertisement
Table of Contents
Related Manuals for Craftsman 917.274400
Summary of Contents for Craftsman 917.274400
- Page 1 Call: Read and follow all Safety 1-800-659-5917 Rules and Instructions before Sears Craftsman Help Line operating this equipment. 5 am - 5 pm, Mon - Sat Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A Visit our Craftsman...
- Page 2 ......Back Cover Maintenance ........LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT For two (2) years from the date of purchase, if this Craftsman Riding Equipment maintained, lubricated and tuned up according to the instructions in the owner's manual, Sears will repair or replace...
- Page 3 IMPORTANT: This cutting machine is capable of amputating hands and feet and throw- ing objects. Failure to observe the following safety instructions could result in serious injury or death. • Never direct discharged material _IWARNING: In order to prevent toward anyone.
- Page 4 II. SLOPE OPERATION • Nevercarry children,evenwith the bladesshut off. They may fall off and Slopes are a major factorrelated to loss of be seriouslyinjuredor interferewith controland tip-over accidents,which can safe machineoperation.Childrenwho result in severeinjury or death. Opera- havebeen given rides in the past may tion on all slopes requiresextra caution.
- Page 5 • Remove gas-powered equipment from • Keep machine free of grass, leaves, the truck or trailer and refuel it on the other debris build-up. Clean oil or fuel ground. If this is not possible, then spillage and remove any fuel-soaked debris.
- Page 6 PROTECTION W/O Filter: 3.0 Pints AGREEMENTS Spark Plug: Champion RC12YC Congratulations on making a smart pur- (GAP: .030") chase. Your new Craftsman® product Ground Speed Forward: designed and manufactured for years of (MPH): Reverse: dependable operation. But like all prod-...
- Page 7 Steering Wheel Steering Wheel Insert (1) Large Flat Washer Boot Steering Steering Wheel Adapter Extension Shaft Steering (1) 5/16 Lock Washer (15)/16-18 x 4 Hex Bolt Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge _(1) Knob For Future Use Keys Slope Sheet...
- Page 8 Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure...
- Page 9 7. Slide seat until a comfortableposition NOTE: You may now roll or drive your is reachedwhich allows you to press tractor off the skid. Follow the appropriate clutch/brakepedal all the way down. instruction below to remove the tractor 8. Get off seat without moving its ad- from the skid.
- Page 10 CHECKTIRE PRESSURE _CHECKLIST The tires on your tractor were overinflated Before you operate your new tractor, at the factory for shipping purposes. Cor- wish to assure that you receive the best rect tire pressure is important for best performance and satisfaction from this cutting performance.
- Page 11 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. I',,I REVERSE NEUTRAL HIGH CHOKE FAST SLOW IGNITION SWITCH 4Y G o, I ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE...
- Page 12 KN OW YOU R TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Ignition Switch Ammeter Attachment ROS "ON"...
- Page 13 The operation of any tractor result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety I...
- Page 14 TO OPERATE MOWER Slowly move motion control lever to Your tractor is equipped with an operator reverse (R) position to start movement. presence sensing switch. Any attempt When use of the ROS is no longer by the operator to leave the seat with the needed, turn the ignition key clockwise...
- Page 15 Transmission Engaged _ICAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame. IMPORTANT: When operating in tempera- tures below 32°F(0°C), use fresh, clean winter grade gasoline to help insure good cold weather starting.
- Page 16 COLDWEATHERSTARTING( 50° F and Slowly move motion control lever to below) full forward position and hold for five (5) seconds, or approximately 40 feet. 7. When engine starts, allow engine to run with the throttle controlin the Slowly move lever to full reverse posi- tion and hold for five (5) seconds, choke positionuntil the engine runs...
- Page 17 FILL IN DATES /_/_X'x_'_/_ " AS YOU COMPLETE /__/_ _/_/O.Oq. _" REGULAR SERVICE /_r/_'_r_VSERVICE DATES C hh :; kkBirakp r?sPe_;i° Check Operator Presence ROS Systems Check for Loose Fasteners ll_s Sharpen/Replace Mower Blades 11_3 Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
- Page 18 TRACTOR ROS "ON" Position Engine "ON" Position (Normal Operation) Always observe safety rules when per- forming any maintenance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake...
- Page 19 NOTE: Do not use a nail for balancing • Inspect cooling fins for dirt, grass clip- blade. The lobes of the center hole may pings and other materials. To prevent appear to be centered,but are not. damage to seals, do not use com- •...
- Page 20 Oil Drain Valve Align tabs on cover with slots in blower housing and replace cover. Hook handle on cover and push down Closed on handle to close. IMPORTANT: Petroleum solvents, such Locked as kerosene, are not to be used to clean Position the cartridge.
- Page 21 MUFFLER CLEANING • Clean engine, battery, seat, finish, etc. Inspect and replace corroded muffler of all foreign matter. spark arrester (if equipped) as it could cre- • Keep finished surfaces and wheels free ate a fire hazard and/or damage. of all gasoline, oil, etc.
- Page 22 WARNING: SERVICE OR ADJUSTMENTS: TO AVOID SERIOUS INJURY, BEFORE PERFORMING Depress clutch/brake pedal fully and set parking brake. Place motion control lever in neutral (N) position. Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. Make sure the blades and all moving parts have completely...
- Page 23 • If links are not equal in length, adjust 8. Place flat washer and clutch spring on idler pulley bolt and secure with small one link to same length as other link. • To lower front of mower loosen nut "E" retainer spring.
- Page 24 3. Install mower(See "To InstallMower" With parking brake "Engaged" in this sectionof this manual). ut "A" Mandrel Idler Operating dam Nut TO REPLACE MOTION DRIVE BELT Pulley Park the tractor on level surface. Engage parking brake. For assistance, there is a TO CHECK AND ADJUST BRAKE...
- Page 25 TRANSMISSION REMOVAL/ REPLACEMENT EnginePulley Should your transmission require removal service or replacement, it should be purged after reinstallation and before operating tractor. See "PURGE TRANSMISSION" Clutching IdlerI_ the Operation section of this manual. TO ADJUST STEERING WHEEL ALIGN- MENT If steering wheel crossbars are not...
- Page 26 If "jumpercables"are usedfor emergency starting, follow this procedure: Seat IMPORTANT:Yourtractor is equipped with a 12 volt system.The other vehicle must also be a 12 volt system. Do not use your tractorbattery to start other vehicles. TO ATTACH JUMPER CABLES 1. Connect one end of the RED cable to the POSITIVE (+) terminal...
- Page 27 ENGINE IMPORTANT: Damage to the needle valve and the seat in carburetor may result Maintenance, repair, or replacement of the if screw is turned in too tight. emission control devices and systems, which are being done at the customers expense, PRELIMINARY SETTING may be performed...
- Page 28 Immediately prepare your tractor for stor- hose, or tank during storage. Also, alcohol age at the end of the season or if the trac- blended fuels (called gasohol or using tor will not be used for 30 days or more. ethanol or methanol) can attract...
- Page 29 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. Fill fuel tank. See "TO START ENGINE" Engine not "CHOKED" properly. Operation section. Wait several minutes before Engine flooded.
- Page 30 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Loss of power Faulty spark plug. Clean and regap or change ',cont.) spark plug. Dirty fuel filter. Replace fuel filter. Stale or dirty fuel. Empty fuel tank and refill tank with fresh, clean gasoline.
- Page 31 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Mower blades will 1. Obstruction in clutch Remove obstruction. not rotate mechanism• Worn/damaged mower drive Replace mower drive belt. belt. Frozen idler pulley• Replace idler pulley.
- Page 33 TRACTOR - - MODEL NUMBER 917.274400 SCHEMATIC 02831 193372 BATTERY oi,I,I,o SOLENOID STARTER ,,_R FUSE .---_---, j ..,_='----T:, _ ,Lq_ &Ggc_ ZffR_ ..SEATSWITCH e_CK REVERSE SWITCH SHORTING CONNECTOR ..i NOT IN REVERSE _ ..IGNITION SPARKPLUGS UNIT (2 PLUGS 'w ON TWIN CYL,...
- Page 34 TRACTOR - - MODEL NUMBER 917.274400 ELECTRICAL...
- Page 35 TRACTOR - - MODEL NUMBER 917.274400 ELECTRICAL KEY PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20 unc x 3/4 176689 Box Battery 176138 Switch, Interlock 183759 Harness Asm Light W/4152j 4152J Bulb Light #1156 4799J Cable Battery 6 Ga. 11" red 193149 Cable Battery...
- Page 36 TRACTOR - - MODEL NUMBER 917,274400 CHASSIS AND ENCLOSURES chassis-Laser-It.stir...
- Page 37 TRACTOR - - MODEL NUMBER 917,274400 CHASSIS AND ENCLOSURES PART DESCRIPTION 174619 Chassis 176554 Drawbar 155272 Bumper Hood/Dash 193510X012 Dash STD533710 Bolt, Carriage 3/8-16 x 3/4 174996 Panel, Dash, L H. 172105X010 Panel, Dash, R.H. 17490608 Screw Thdrol 3/8-16 x 1/2 185682X613 Hood Assembly 184921...
- Page 38 QROUNo OR#rE TRACTOR. "MODEL NUMBER 917"274400 drive'hydro, stirs 3...
- Page 39 TRACTOR - - MODEL NUMBER 917.274400 GROUND DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle Peerless LTH2000 154778 Keeper Belt Engine Hydro Screw Hex Wsh Hi-Lo 1/4-1/2 (See Breakdown) 142432 192706 Rod Shift Fender 134683 Keeper Belt Engine STD561210 Pin Cotter 1/8 x 1 CAD 137057 Spacer 10040400...
- Page 40 TRACTOR - - MODEL NUMBER 917,274400 STEERING ASSEMBLY / / / 44----_ steering pl.lt 5B...
- Page 41 TRACTOR - - MODEL NUMBER 917.274400 STEERING ASSEMBLY PART DESCRIPTION 186780 Steering Wheel 175131 Axle Assembly 169840 Spindle Assembly, L.H. 169839 Spindle Assembly, R.H. 6266H Bearing, Race, Thrust, Hardened 121748X Washer 25t32 x 1-5t8 x 16 Ga. 19272016 Washer 27/32 x 1-1/4 x 16 Ga.
- Page 42 TRACTOR - - MODEL NUMBER 917,274400 ENGINE OPTIONAL EQUIPMENT Spark Arrester engine-bs.lcyl KEY PART PART DESCRIPTION DESCRIPTION 137040 170545 Line, Fuel Control, Throttle/Choke 181654 17720408 Screw, Hex Head, Thread Plug Drain Oil Easy 124028X Bushing, Snap, Fuel Line Cutting 114-20 x 112 17670412 Screw, Hex Washer...
- Page 43 TRACTOR - - MODEL NUMBER 917,274400 SEAT ASSEMBLY seat_It.knob_9 PART PART DESCRIPTION DESCRIPTION 188716 Seat 174648 Bracket Pnt Mounting Switch 180166 121248X Bracket Pnt Pivot Seat (blk) Bushing Snap BIk Nyl 50 Id 71110616 Bolt Fin Hex 3/8-16 unc x 1 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 19131610...
- Page 44 179768X428 Decal, Customer Maintenance Pad, Footrest LH STLT 193545 179769X428 Decal, Hood Side Pad, Footrest RH STLT 186282 193398 Decal, Fender, Craftsman Manual, Owner's, English 156439 193399 Decal, Fender Danger Manual, Owner's, Spanish 138047 Decal, Battery 146046 Decal, V-Belt Drive Schematic...
- Page 45 TRACTOR - - MODEL NUMBER 917.274400 LIFT ASSEMBLY • 1718 lift-rh=l piece3 PART PART DESCRIPTION DESCRIPTION 159460 Washer Asm Inner Spring STD624008 Retainer Spring 173288 Link Front Plunger 159471 73350800 Nut Jam Hex 1/2-13 unc Shaft Asm. Lift 105767X 175689 Trunnion BIk Zinc Pin Groove 12000002...
- Page 46 TRACTOR - - MODEL NUMBER 917,274400 MOWER DECK 2 55i '" !147 42 D man-t-path stlt...
- Page 47 TRACTOR - - MODEL NUMBER 917.274400 MOWER DECK PART PART DESCRIPTION DESCRIPTION Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 165892 Mower Deck Assembly, 42" 72110612 STD533107 Bolt 131494 Pulley, idler, Flat Nut Lock 3/8-16 138017 Bracket Assembly, Sway Bar, 73900600 Front 140088...
- Page 48 TRACTOR - - MODEL NUMBER 917,274400 PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000 .._:y-- _ 190...
- Page 49 TRACTOR - - MODEL NUMBER 917,274400 PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000 PART PART DESCRIPTION DESCRIPTION 786196 Spacer .625.765 772151 Cover L.H. 792201 Spring 770135 Case 792154 Oil Fill Plug 776355 Counter Shaft 788088A Oil Seal 3/4" 778263 Spur Gear 792141 Washer .3771D .058W...
- Page 50 TRACTOR - - MODEL NUMBER 917.274400 BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0297-E1 43,_ 684'_ 1 1_ 584_ 1330 REPAIR MANUAL 1264I_' 1329 REPLACEMENT ENGINE] 358 ENGINE GASKET SET 146_ 943 0 2o@ 6170 1022 51 (_ 691(_ 524 _ 8420 1266...
- Page 51 TRACTOR - - MODEL NUMBER 917.274400 BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0297-E1 1095 VALVE GASKET 617 O 1022 1022i 6170 1022 616_ 1624_'1_ _ 54_@ 654 {_ 1023 404_ 1119_ 232 '2ooi %6 267 _ 305A 1267 1070 309_ 697 _...
- Page 52 TRACTOR - - MODEL NUMBER 917.274400 BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0297-E1 105A 127A 1091 142_ _1o6 127 G 276A@ 947A_ NIKKI 1127_ 276 @ 950_ 1266A O 627_ 1266 0 121 CARBURETOR OVERHAUL KIT 987(_ 104 _ 1270 231_ 105 _...
- Page 53 TRACTOR - - MODEL NUMBER 917.274400 BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0297-E1 PART PART DESCRIPTION DESCRIPTION 697174 Cylinder Assembly 690577 Seat-Inlet 399265 Kit-Bushing/Seal (Magneto Side) 690464 Valve-Choke (Manual Choke) 391086 • Seal-Oil (Magneto Side) 108A 695419 Valve-Choke (Nikki) 697188 Sump-Engine...
- Page 54 TRACTOR - - MODEL NUMBER 917.274400 BRIGGS & STRATTON ENGINE-MODEL NUMBER 31H777, TYPE NUMBER 0297-E1 PART PART DESCRIPTION DESCRIPTION 693551 Motor-Starter 690968 Seal-Valve 690323 Bolt (Starter Motor) 690960 Screw (Rocker Cover) 497608 Brush Set 690589 • SeaI-O Ring (Oil Pump Cover) 495859 Armature-Magneto...
- Page 55 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. & t. Fold this page atong dotted line indicated above. 2_ Hotd page before you go that its [eft edge is vertically para[_e_ to a tree trunk or other upright structure,...
