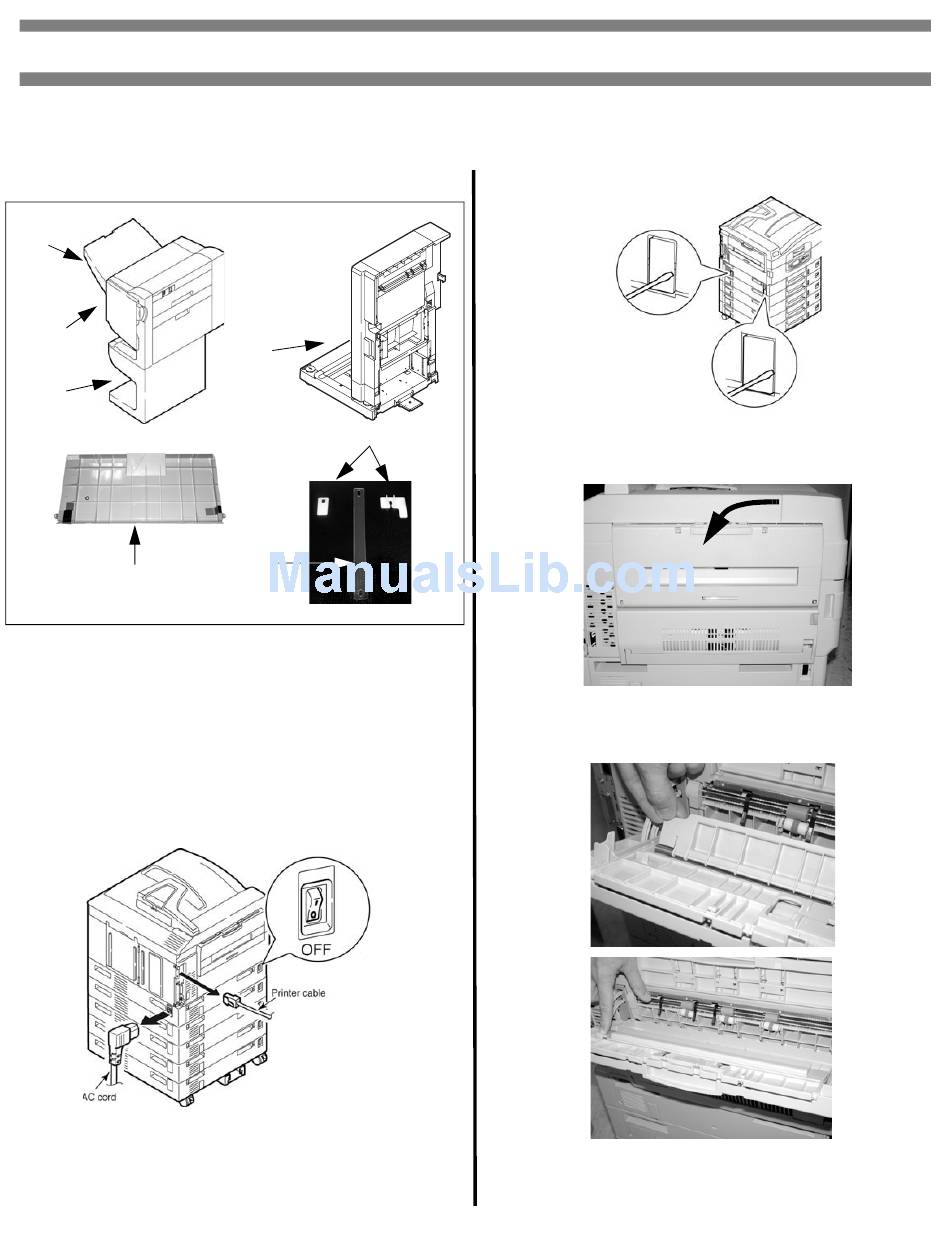

Finisher Unit Installation Guide

Components

1. Finisher unit

2. Finisher stand

3. Inverter unit

4. Stacking tray

5. Rear cover

6. Clear band

7. Band stopper (2)

Prepare the Printer

1. Turn the printer off and disconnect the power

cord and interface cable.

2. Using a screwdriver, remove the breakout

panels on the side of the printer.

3. Open the face-up stacker.

4. Open the flap and press it onto the stacker

surface

Page 1 Finisher Unit Installation Guide Components 2. Using a screwdriver, remove the breakout panels on the side of the printer. 1. Finisher unit 2. Finisher stand 3. Inverter unit 4. Stacking tray 3. Open the face-up stacker. 5. Rear cover 6. Clear band 7.
Page 2 5. Close the stacker. 2. Hook the finisher stand to the inverter. 6. Install the metal brackets as shown. Assemble the Finisher 3. Attach the finisher stand to the inverter with 2 screws. 1. Attach the guide rail of the inverter to the 4.
Page 3 9. Loosen the screw on the locking piece so that it drops through the slot below. This keeps the 5. Slip the other end of the band through the platform from moving while you attach the retainer on the finisher, then secure it with the finisher to it.
Page 4 Make sure the positioned above the stacker. finisher is level. 3. Connect the printer and the finisher to the 14.Attach the stacker with four screws. inverter, and connect the inverter’s power cord. © 2005 Oki Data Americas, Inc. 58372801...
