Owner's
Manual

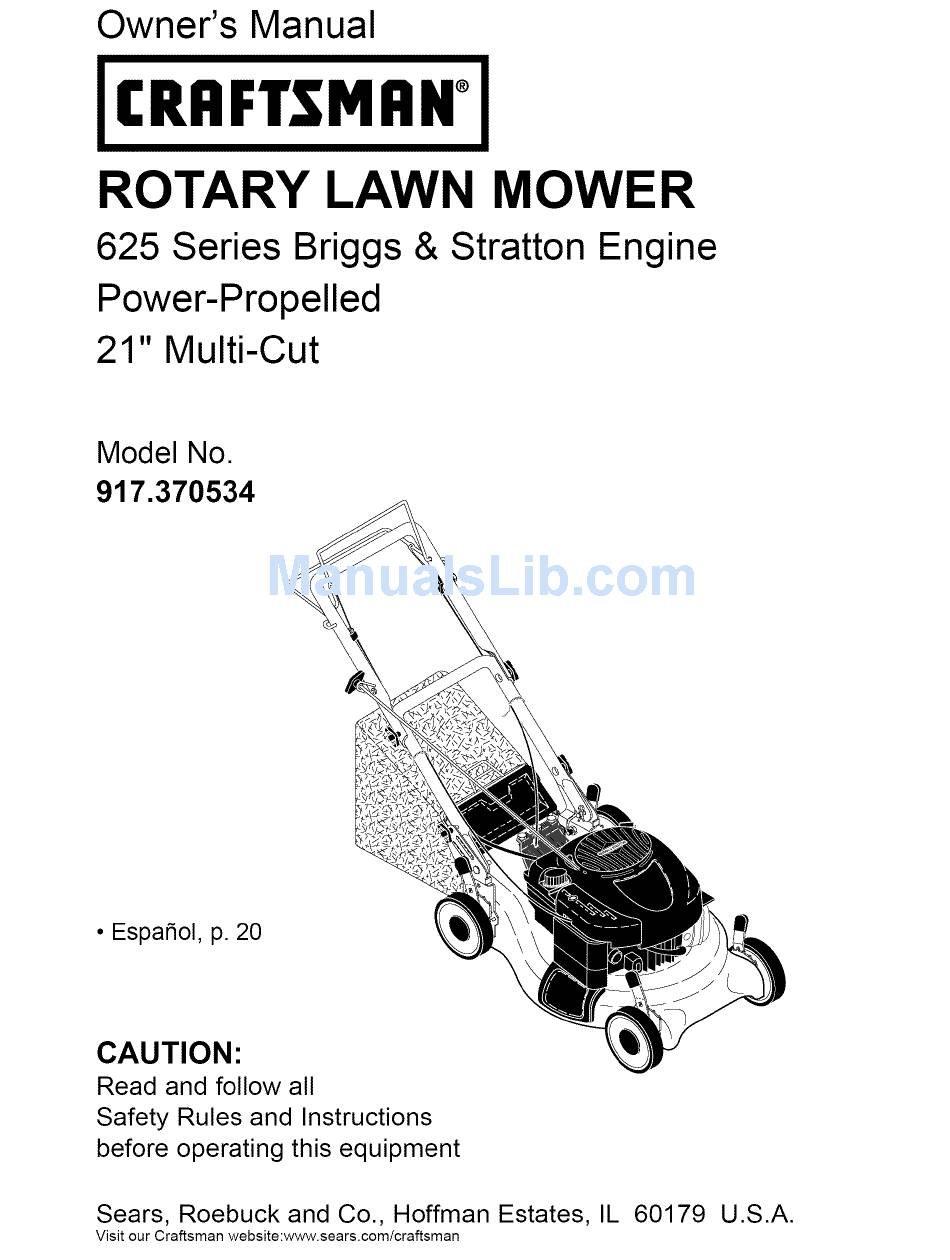

CRnFTSMFIN °
ROTARY LAWN MOWER
625 Series Briggs & Stratton Engine
Power-Propelled
21" Multi-Cut
Model No.
917.370534
• Espa_ol, p. 20
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman

Advertisement

loading

Related Manuals for Craftsman 917.370534

Summary of Contents for Craftsman 917.370534

  • Page 1 625 Series Briggs & Stratton Engine Power-Propelled 21" Multi-Cut Model No. 917.370534 • Espa_ol, p. 20 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website:www.sears.com/craftsman...
  • Page 2 ......Sears Service ......Back Cover 2-YEAR FULL WARRANTY ON CRAFTSMAN LAWN MOWER If this Craftsman Lawn Mower fails due to manufacturer defects in material workmanship within two years from the date of purchase, return it to any Sears store, Parts &...
  • Page 3 I. GENERAL OPERATION • Always wear safety goggles or safety glasses with side shields when oper- • Read, understand, and follow all ating mower. instructions on the machine and in the manual(s) before starting. Be thoroughly II. SLOPE OPERATION familiar with the controls and the proper Slopes...

  • Page 4: General Service

    • Neverfill containersinsidea vehicle, on • Keepnuts and bolts, especiallyblade a truck or trailer bedwith a plasticliner. attachmentbolts, tight and keepequip- Always place containerson the ground mentin good condition. awayfrom yourvehicle beforefilling. • Nevertamperwith safetydevices.Check • Removegas-poweredequipmentfrom their proper operationregularly. the truck or trailerand refuel it on the •...

  • Page 5: Lawn Mower Maintenance

    Repair Protection Agreements Congratulations on making a smart pur- • Fast help by phone- phone sup- chase. Your new Craftsman® product port from a Sears representative designed and manufactured for years of products requiring in-home repair, plus dependable operation. But like all prod- convenient repair scheduling.
  • Page 6 Read these instructions and this manual in its entirety before you attempt to assemble operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been assembled at the factory with the exception of those parts left unassembled...
  • Page 7 KNOWYOUR LAWN MOWER READTHISOWNER'SMANUALAN DALLSAFETYRULESBEFOREOPERATING YOUR LAWNMOWER.Comparethe illustrations withyourlawnmowertofamiliarizeyourselfwith the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand their meaning•...

  • Page 8: How To Use Your

    TO ADJUST CUTTING HEIGHT The operation of any lawn mower can result in foreign Raise wheels for low cut and lower wheels objectsthrownintothe eyes, for high cut, adjust cutting height to suit whichcanresultinsevereeye your requirements. Medium position best for most lawns. damage.Alwayswearsafety glassesor eye shieldswhile operatingyour •...
  • Page 9 TO EMPTY GRASS CATCHER To convert to mulching or bagging operation, discharge deflector must be Lift up on grass catcher using the removed and mulcher door closed. frame handle. Remove grass catcher with clippings from under lawn mower handle. \\\\ Empty clippings from bag.
  • Page 10 ADD GASOLINE BEFORE STARTING ENGINE ADD OIL • Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular Your lawnmower is shipped without oil in unleaded gasoline with a minimum the engine. For type and grade of oil to 87 octane.
  • Page 11 MOWING TIPS MULCHING MOWING TIPS A CAUTION: Do not use de-thatcher IMPORTANT: For best performance, blade attachments on your mower. Such keep mower housing free of built-up attachments are hazardous, will damage grass and trash. See "CLEANING" in the Maintenance section of this manual.
  • Page 12 BEFORE AFTER EVERY EVERY EVERY EACH EACH 25HOURS BEFORE SCHEDULE HOURS OR SEASON HOURS STORAGE Check for Loose Fasteners L Clean / Inspect Grass Catcher Check Tires N Check Drive Wheels Clean Lawn Mower ..M Clean under Drive Cover *** O Check Drive Belt / Pulleys heck / Sharpen...
  • Page 13 Use block of wood between blade and LAWN MOWER lawn mower housing and tighten Always observe safety rules when per- blade bolt, turning clockwise. forming any maintenance. • The recommended tightening torque TIRES 35-40 ft. Ibs. / 47-54 N-m. • Keep tires free of gasoline, oil, or insect IMPORTANT: Blade bolt is heat treated.
  • Page 14 • If lubricantis required,use onlyTexaco Stop adding oil when you reach the StarplexPremium1 Grease,Part No. FULL mark on the dipstick. Wait a 750369. Do not substitute. minute to allow oil to settle. Continue adding small amounts of oil, ENGINE rechecking the dipstick until oil level LU BRICATION...
  • Page 15 CLEANING • Keep finished surfaces and wheels free of all gasoline, oil, etc. IMPORTANT:Forbest performance,keep • We do not recommend using a garden mowerhousingfree of built-upgrass and hose to clean lawn mower unless trash. Cleanthe undersideof your mower electrical system, muffler, air filter and aftereach use.
  • Page 16 ADJUST HANDLE ENGINE ENGINE SPEED The handle on your lawn mower has three (3) height positions - adjust to height that Your engine speed has been factory set. suits you. Do not attempt to increase engine speed Remove knob and carriage bolt on one or it may result in personal injury.
  • Page 17 storage container. Always follow the mix Handle ratio found on stabilizer container. bracket "Bolt engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer. ENGINE Knob Drain oil (with engine...

  • Page 18: Troubleshooting

    TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center, PROBLEM CAUSE CORRECTION Does not start 1. Dirty air filter. 1. Clean/replace air filter. Out of fuel. Fill fuel tank. Stale fuel. Empty fuel tank and refill tank with fresh, clean gasoline.
  • Page 19 TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center, CAUSE PROBLEM CORRECTION Rear of lawn mower Loss of power 1. Raise cutting height. housing or cutting blade dragging in heavy grass. Cutting too much grass. Raise cutting height.
  • Page 20 Sears, al Centre de Repuestos y Reparacion, o a otto comercio donde se vendan los equipos Craftsman, a efectos de que se la reparen sin costo (o bien se la reemplacen, en caso que no sea posible reparafla).
  • Page 21 I. OPERACION • Siempre use gafas de seguridad o anteojos con proteccion lateral cuando opere la sega- • Antes de empezar, debe familiarizarse dora. completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones que II.
  • Page 22 • Nunca repostar l a maquina a l interior d eun • Mantenga las tuercas y los pernos, espe- local. cialmente los pernos del accesorio de la • Nunca guardar l amaquina o elcontenedor cuchilla, apretados y mantenga el equipo en degasolina dondehayunallama abierta, buenas condiciones.
  • Page 23 Congratulaciones por su buena compra. • Ayuda r&pida por telefono - soporte tele- nuevo producto Craftsman@ esta diseSado fonico por parte de un representante Sears y fabricado para funcionar de modo fiable por sobre productos que requieren un arreglo en muchos aSos.
  • Page 24 Lea estas instrucciones y el manual completamente antes de tratar de montar u operar su segadora nueva. IMPORTANTE: Este cortacesped viene SIN ACEtTE O GASOLINA en el motor. Su segadora nueva ha sido montada en la fabrica con la excepci6n de aquellas partes que se dejaron sin montar por razones de envio.
  • Page 25 FAMILIARICESECON SU SEGADORA LEAESTEMANUAL DELDUENO Y LASREGLAS DESEGURIDAD ANTES DEOPERAR SU SEGADORA. Compare lasilustraciones consu segadora p arafamiliarizarse conlaubicacion d e losdiversos controles y ajustes. G uarde estemanual p arareferencia e nelfuturo. Estos simbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.
  • Page 26 PARA AJUSTAR LA ALTURA DE CORTE Laoperacion d e cualquier sega- Levante las ruedas para el corte bajo y baje las dorapuedehacer q uesalten ruedas para el corte alto., ajuste la altura de objetos extrafios dentro desus corte para que se acomode a sus requisitos. La ojos,Ioquepuedeproducir posicion del medio es la mejor para la mayoria dafiosgraves enestos.Siempre...
  • Page 27 PARA VACIAR EL RECOGEDOR Para convertir a la operacion de ensacado ClaSPED o de descarga, el desviador de la descarga debe ser removido y la proteccion contra la Levante el recogedor de cesped usando el descarga debe estar cerrada. mango del bastidor. Remueva el recogedor de cesped, con los recortes, de debajo del mango de la segadora.
  • Page 28 ANTES DE HACER ARRANCAR AGREGUE GASOLINA MOTOR • Llene el estanque de combustible hasta la parte inferior del cuello de relleno del es- AGREGUE ACEITE tanque de gasolina. No Io Ilene demasiado. Su segadora fue enviada sin aceite en el motor. Use gasolina regular, sin plomo, nueva y lim- Para el tipo y el grado del aceite a utilizar, vea pia con el minimo de 87 octanos.
  • Page 29 _ONSEJOS PARA SEGAR CONSEJOS PARA SEGAR Y ACOLCHAR PRECAUCION: No utilizar dispositivos anti- IMPORTANTE: Para obtener el mejor paja de la hoja en la segadora ya que estos rendimiento mantenga la caja de la segadora accesorios son peligrosos, pueden daSar su sin acumulacion de cesped y basura.
  • Page 30 PROGRAMA ANTEsDESPUES cADA CADA CADA ANTESDEL DECADA DECADA10 2S,ORASO100 ALMACE- MANTENIMIENTO uso .ORASTEMPORADA.ORAS.AMIENTO Revisar si hay Sujetadores Sue_tos Limpiar/Inspeccionar el Recogedor de C_sped * Controlar los NeumAticos Controlar las Ruedas Motrices *** Limpiar _aSegadora ..Limpiar debajo la Cubierta de la Transmisi6n Revisar las Correas y las Poleas _mpu_sadas *** Revisar / Afilar / Cambiar la Cuchilla Lubricaci6n...
  • Page 31 SEGADORA Use un bloque de madera entre la cuchilla y la caja de la segadora y apriete el perno Siempre observe las reglas de seguridad cu- de la cuchilla girandolo en el sentido en que ando haga el mantenimiento. giran las manillas del reloj. LLANTAS •...
  • Page 32 • Lacajadeengranajes s eIlenaconlubricante Limpie todo el aceite derramado en la sega- hastael nivel a decuado e n lafabrica. L a dora y en el lado del motor. Qnica vezqueel lubricante n ecesita atenci6n Echar aceite despacio en el conducto escuando se le haprestado s ervicio a la aceite, parandose a intervalos regulares para cajadeengranajes.
  • Page 33 LIMPIEZA No recomendamos el uso de una manguera IMPORTANTE: Para obtener de jardin para limpiar la segadora a menos el mejor rendimiento, que el sistema electrico, el silenciador, el mantenga la caja de la segadora sin acumulacion filtro de aire y el carburador esten tapados de cesped y basura.
  • Page 34 PARA AJUSTAR EL MANGO MOTOR El mango de su segadora cuenta con tres (3) VELOCIDAD DEL MOTOR posiciones de altura - ajQstelo a la altura que le La velocidad del motor ha sido ajustada en acomode. la fabrica. No trate de aumentar la velocidad Remueva la manilla y el perno portador en del motor pues se pueden producir lesiones un lado del mango inferior.
  • Page 35 AVlSO" El estabilizador de combustible es una alternativa aceptable para reducir a un minimo Soporte deman_ Perno la formacion de dep6sitos de goma en el com- bustible durante el periodo de almacenamiento. Agregue estabilizador a la gasolina en el estanque de combustible o en el envase para el almacenamiento.
  • Page 36 SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos est_ dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION No arranca Filtro de aire sucio. Limpie/cambie el filtro de aire. Sin combustible. Llene el estanque de combustible. Combustible rancio.
  • Page 37 SOLUCION DE PROBLEMAS - Vea la seccibn apropiada en el manual amenos estd dirigido a un centro de servico Sears. CORRECCION PROBLEMA CAUSA Mal corte- 1. Cuchilla desgastada, doblada 1. Cambie la cuchilla. Apriete el perno de la cuchilla. disparejo o suelta.
  • Page 38 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.370534...
  • Page 39 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.370534 KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 194203X479 Handle, Upper 189179 Blade Adapter / Pulley 193664X479 Handle, Lower 406712 Blade, 21" 405416 Spring, Rear Door, RH 851074 Washer 194788...
  • Page 40 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.370534 "\\ :7 20...
  • Page 41 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.370534 KEY PART KEY PART NO. NO. DESCRIPTION NO, NO. DESCRIPTION 404846 Drive Control Assembly (Includes Cable) 409148 Nut, Flangelock 3!8-16 194185X428 Control Bar, Drive 401630 Washer, Curved, Cylindrical 191730 Nut, Hex 1/4-20 193909X427 Wheel &...
  • Page 42 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA 718_ 307_ 32A _ 1330 REPAIR MANUAL]...
  • Page 43 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA 615 L_ 334_ 616_ 443_ 562_ 970 %_ 505 _ 977 CARBURETOR 633 O GASKET SET 276_ 127_ 130 95 121 CARBURETOR OVERHAUL KIT 633_ 276 _...
  • Page 44 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA 621 _ 11058 OPERATOR'S MANUAL I 455 fT_f-,_ _ 305 _;_ _670 19o_ 9721 689 _ 456 0 1036 EMISSIONS LABEL I...
  • Page 45 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA 358 ENGINE GASKET 3© 63 _ 58,= 617_ Engine Power Rating Information The gross power rating for individual gas engine models is labeled in accordance with SAE (So- ciety of Automo-tive Engineers) code Jl1940 (Small Engine Power &...
  • Page 46 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA PART PART DESCRIPTION DESCRIPTION 697322 Cylinder Assembly 691108 Screw (Flywheel Guard) 399269 Lock-Muffler Screw Kit-Bushing/Seal 691740 299819s • Seal-Oil (Magneto Side) 691636 Screw (Throttle Valve) 493279 Shaft-Throttle Sump-Engine 696565 691160 Head-Cylinder 691242 O Pin-Float Hinge 692249 •...
  • Page 47 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-3824-EA PART PART DESCRIPTION DESCRIPTION 491588s Filter-Air Cleaner Cartridge 262001 Bushing-Guide (Exhaust) 791960 Cup-Flywheel 63709 Bushing-Guide (Intake) 692299 Plate-Pawl Friction 790701 Cover-Blower Housing 281505s PawI-Ratchet 692135 Spring-Brake 691251 695891 Brake (Governor Control Lever) 699985 Cap-Fuel Tank 499621...
  • Page 48 Your Home For repair - in your home - of all major brand appliances, iiiiiiiiiiiiiiiiiiii;' iiiiiiiiiiiiiiiiiii_ lawn and garden equipment, or heating and cooling systems, iiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiii no matter made it, no matter sold iiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiii For the replacement parts, accessorbs iiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiii owner's...
