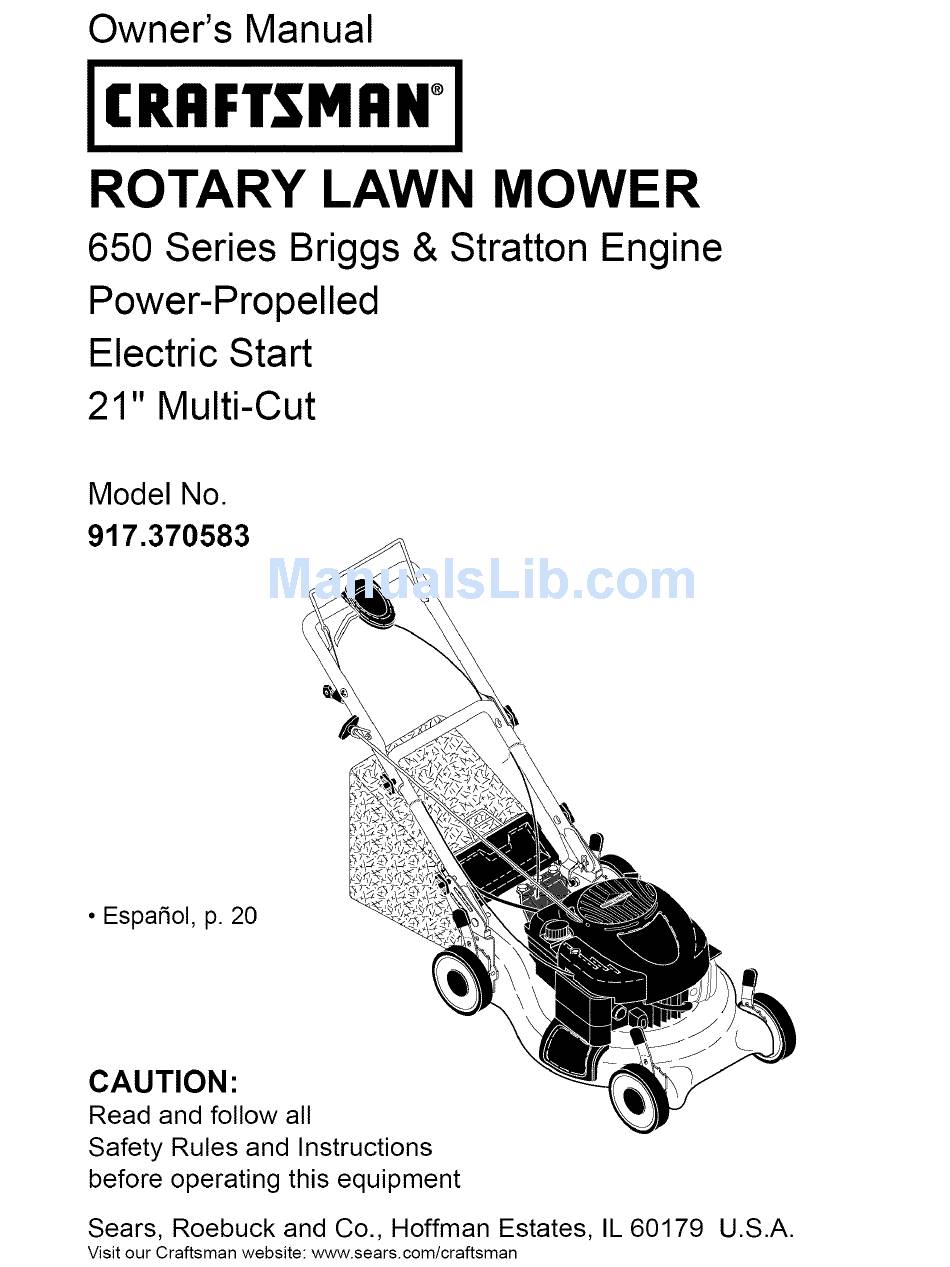

CRRFTSMRN °
ROTARY LAWN MOWER
650 Series Briggs & Stratton Engine
Power-Propelled
Electric Start
21" Multi-Cut
Model No.
917.370583
• Espa_ol, p. 20
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.
