Summary of Contents for KitchenAid KSSO36FMX00

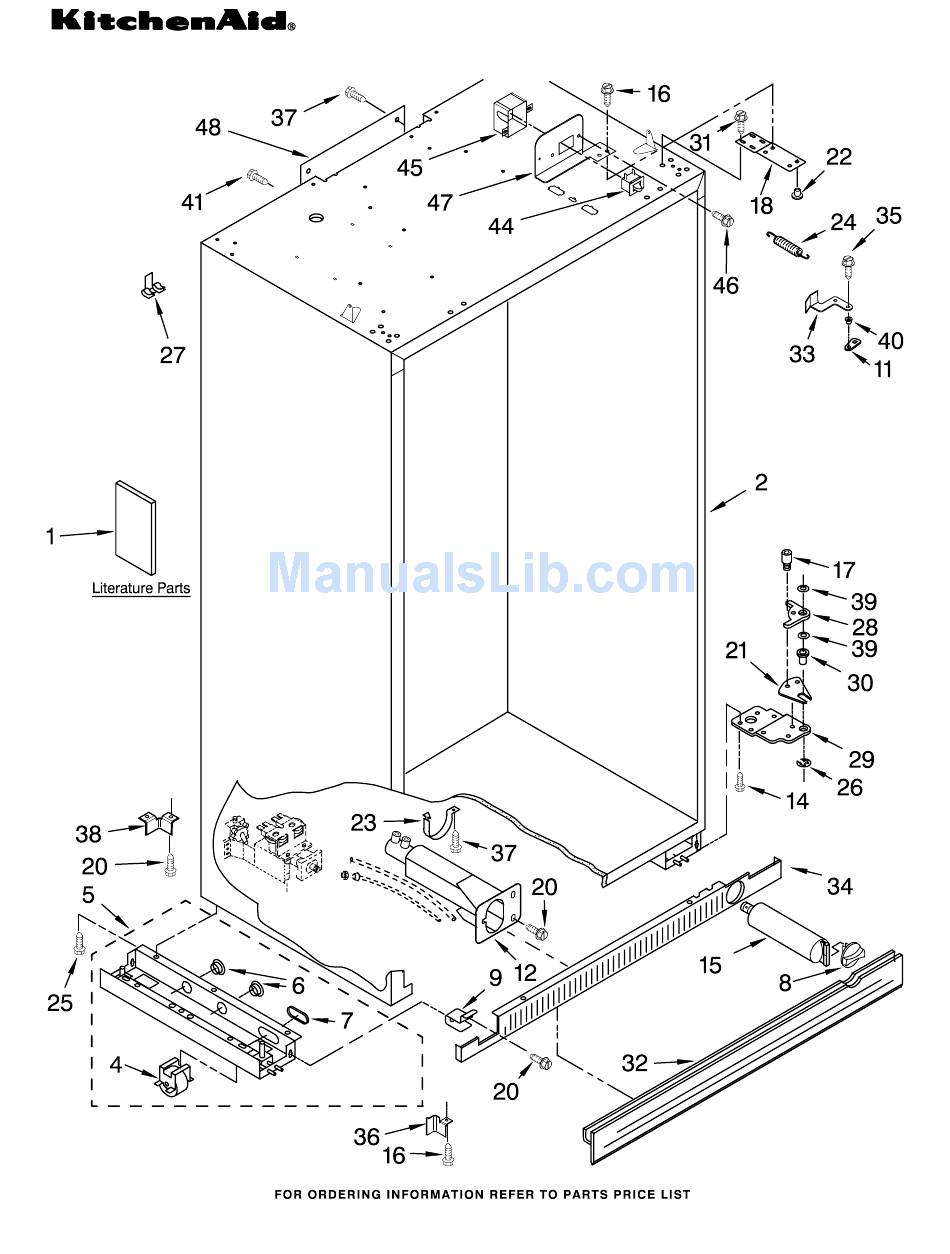

- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSO36FMX00 (Etched Aluminum) 1−04 Litho In U.S.A. (mek) Part No. 8198492...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209022 Housing, Water Extension Arm, Literature Parts Filter Door Closer LIT2266808 Use & Care Guide 3400525 Screw 2221095 Right LIT2266816 Energy Label 2255709 Filter, Water 2221094 Left LIT2300021 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2254724 Cabinet, Trim (Bottom) 486194 Screw 2257366 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side 489464 Screw 8198492...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2256203 Wire, Shelf 2266955 Spacer, Ice Door 2259002 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice 8533929 Screw 2266930 Bucket, Ice 2266944 Cover, Shelf... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Meat Pan Baffle 2257526 Baffle, Control Assembly 2171846 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control Meat Pan 2221121 Support, Control 489006 Screw (2) 2252067 Touch Pad, Meat 2252068 Display Board, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2259422X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2259095 Cover, Unit Front 487415 Screw 2187429 Wire Assembly RC/FC Light Switch 489348 Clamp 2259434X Grille−Trim, Bottom...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2256276 Glass, Meat Pan Cover 2256426 Glass, Crisper Cover 2257611 Trim, Glass Rear Side 2169935 Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan 2256245 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 2220904 Gasket (2) 2259385 Fan Motor Serviceable Part) Evaporator Cover 2266801 Deflector, Air 2266805 Pad, Air Baffle 2187520 Harness, Evap Fan 2169142 Fan Blade 2259025 Cover, Air Outlet...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Trim, Door (Handle Side) 2259040X Etched Aluminum Cover, Screw...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492... - Page 16 FREEZER DOOR PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Item #14) 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Cover, Screw (Handle Side) 2259448X Etched Aluminum Trim, Door (Handle Side) 2259041X Etched Aluminum Cover, Screw...
- Page 17 UPPER UNIT PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492...
- Page 18 UPPER UNIT PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2187679 Wire, Jumper 487294 Screw, Ground 2221559 Inverter Box 487522 Screw 549193 Clamp, Cord 489373 Screw, Compressor 857547 Wire Tie (2) 2187625 Wiring Harness, Mounting (4) 2252363 Drier Unit Compartment...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2300191 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259352 Tube, Discharge 2216113 Thermistor 2257639 Clip, Thermistor 2259029 Evaporator...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSO36FMX00 (Etched Aluminum) 8198492... - Page 22 ICEMAKER PARTS For Model: KSSO36FMX00 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488937 Clamp Tube 2300104 Cover, Bottom 8533917 Screw 2221240 Heater, Fill Tube Electrical 489276 Screw 2257538 Cover 2254792 Wire Assembly, 2300169 Arm, Shut Off 628228 Mold &...
