KitchenAid KGCP463KSS05 Parts List

36" stainless professional cooktop

Hide thumbs Also See for KGCP463KSS05:

Download this manual See also: Instruction and Installation Manual

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP463KSS05

36" Stainless

(Stainless)

Professional Cooktop

Part No.W10207227 Rev. A

09−08 Litho in U.S.A. (amd)(bay)

Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP463KSS05 36" Stainless (Stainless) Professional Cooktop Part No.W10207227 Rev. A 09−08 Litho in U.S.A. (amd)(bay)

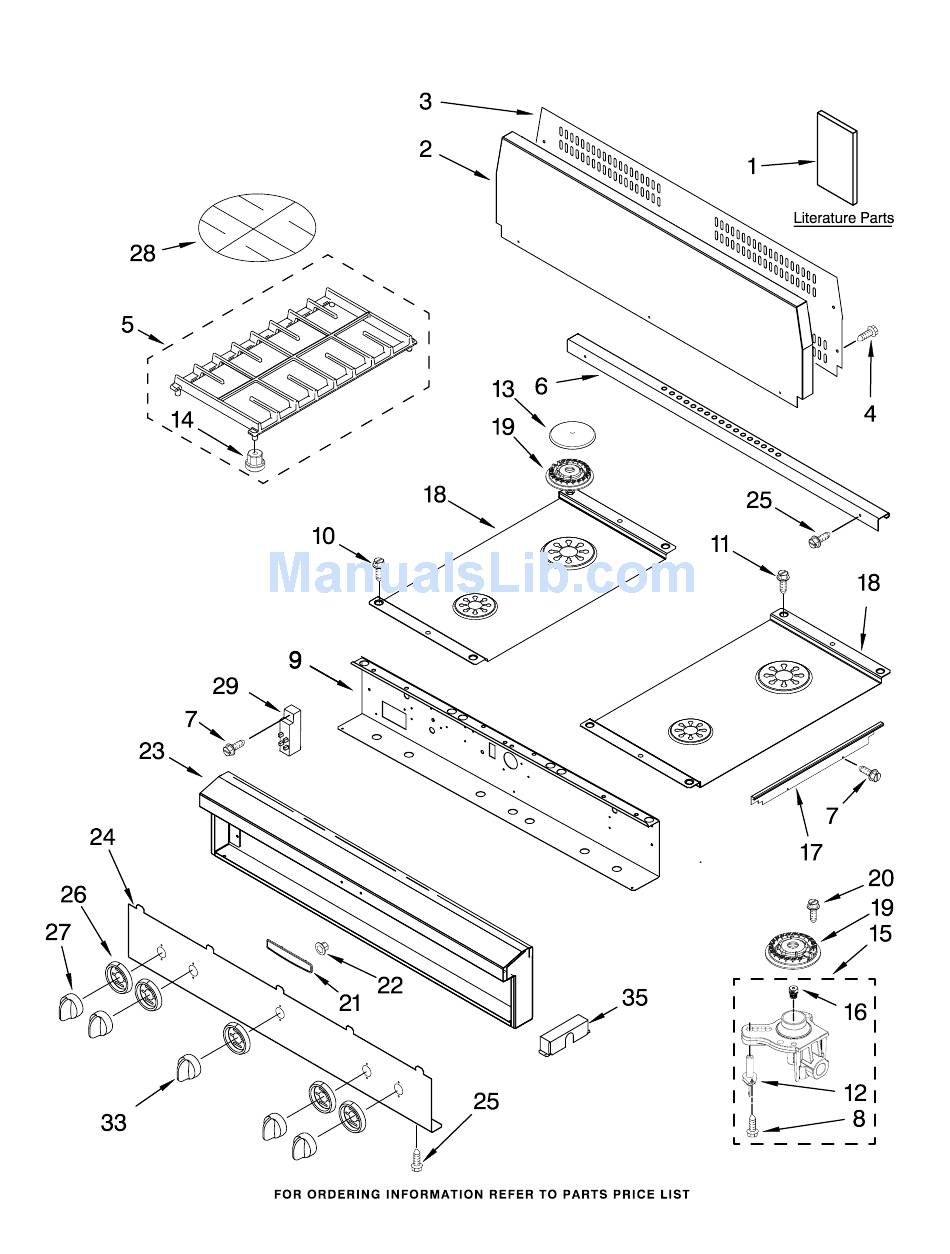

Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP463KSS05 (Stainless) Illus. Part DESCRIPTION Literature Parts 8285587 Wiring Diagram W10162189 Use & Care Guide 9759405 Installation Instructions 9759442 Instructions, LP Conversion 2 W10157567 Backsplash 8284712 Support,Backsplash 3196537 Screw 5 W10106670 Grate, Burner 6 W10157548 Trim, Island 3400843 Screw 8273062 Screw,...
Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP463KSS05 (Stainless) W10207227...
Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP463KSS05 (Stainless) Illus. Part DESCRIPTION 4455040 Tubing, Gas Burner − RF 4455041 Tubing, Gas Burner − RR 313382 Clip, Bulb 4 W10157545 Bracket 4455153 Tubing, Gas Burner − LF 4455154 Tubing, Gas Burner −...
Page 5: Optional Parts
OPTIONAL PARTS For Model: KGCP463KSS05 (Stainless) Illus. Part DESCRIPTION WIRING HARNESS PARTS 8285527 Power Cord 1129449 Bushing 4173634 Bushing, Electric 4456627 Harness, Wire Jumper 4456628 Harness, Wire Ignitor Miscellaneous 8284782 L.P. Orifice Spud Pack 3192439 Seal, Limiter W10207227...
