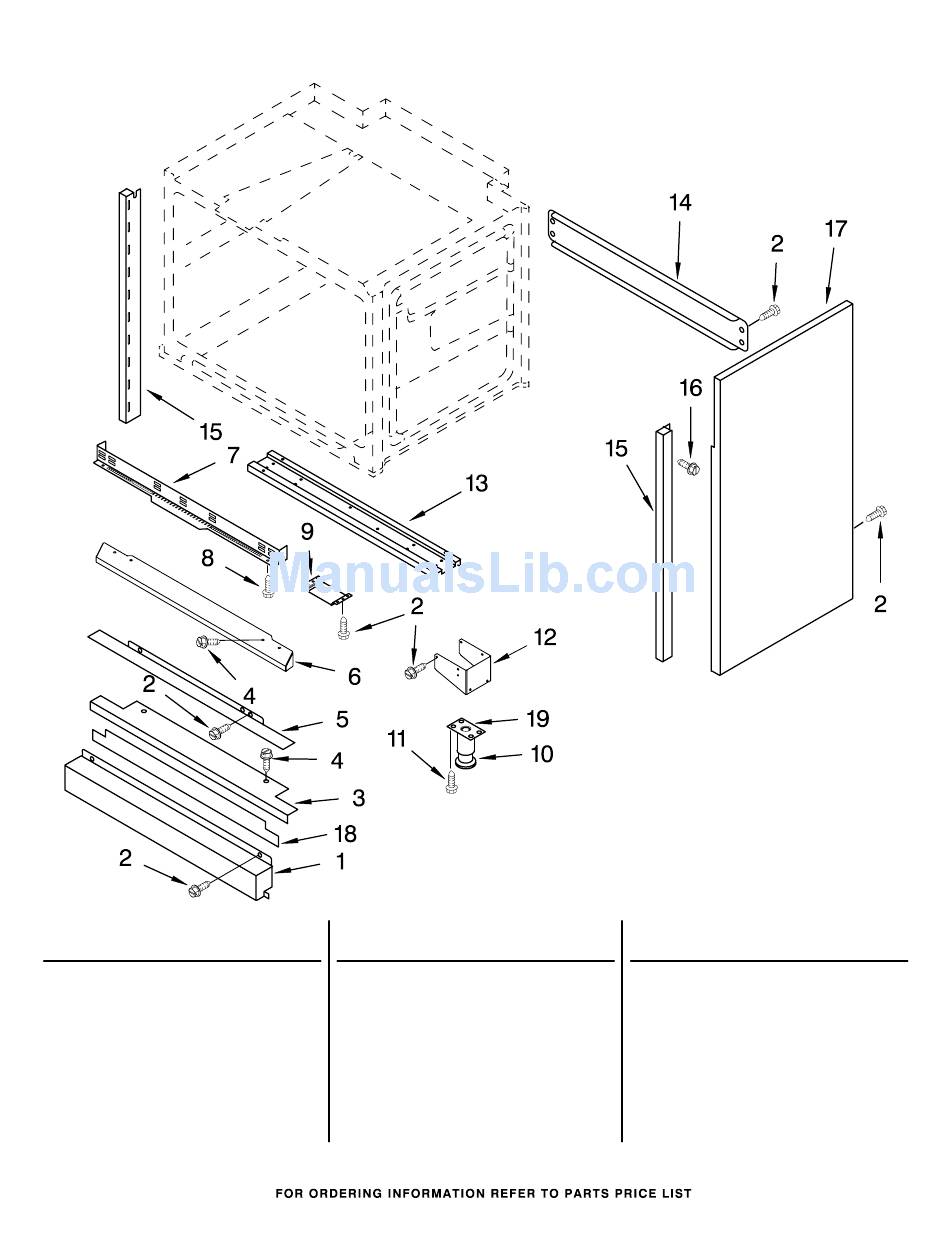

Chassis Parts - KitchenAid KDRP462LSS08 Parts List

Illus. Part
No. No. DESCRIPTION
1 4452803 Vent, Bottom
Lower
2 4449809 Screw, 8−18 x 3/8
3 8301087 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 8301225 Deflector, Center
6 8300978 Vent, Bottom Upper
7 4455983 Vent, Center
4453327 Gasket
3400805 Screw (4)
8186669

CHASSIS PARTS

For Model:KDRP462LSS08
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
8 3196537 Screw, 8−18 x 3/8
9 9759092 Bracket, Mounting
Regulator
10 9759117 Foot
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
13 4455648 Support, Channel
14 W10015720 Brace, Rear
11
Illus. Part
No. No. DESCRIPTION
15 Trim, Front
4452804 Right Side
4453205 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
4457251 Right Side
4457252 Left Side
18 8300154 Insulation
19 9759118 Plate, Mounting
